ENGLISH

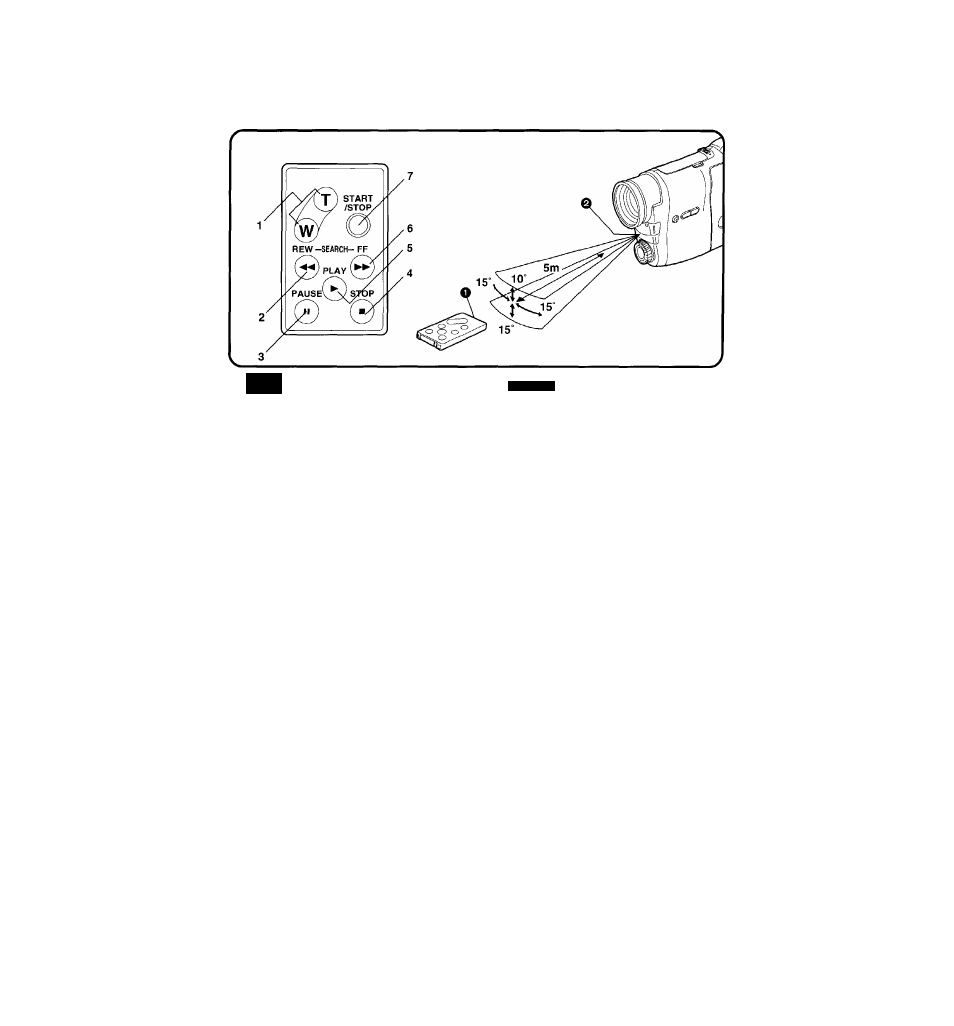

Using the Remote Controller
The Remote Controller lets you take part in the action
and control the recording operation from in front of the
Movie Camera. It is also convenient for controlling the
playback functions for playback via a TV or for dubbing.
■ Buttons on the Remote Controller
The buttons with the same mark as on the Movie
Camera have generally the same function.
1 [W • T] Zoom Buttons {-♦ 44, 46, 68, 72)
2 Rewind [MM] Button (-> 40, 42, 48, 54, 56, 90)
3 Pause
[I I]
Button (-> 56)
4 Stop [■] Button {-¥ 48)
5 Playback [►] Button (-> 32, 48, 90)
6 Fast-forward [►►] Button {-¥ 42, 54, 56, 90)
7 [START/STOP] Button (-► 36)
■ Conditions for Correct Operation of the
Remote Controller
•The button-type battery must be inserted correctly and
not be exhausted.
•The distance to the Movie Camera must not be more
than 5 metres.
•The Transmitter Window Q on the Remote Controller
or the Remote Control Sensor
0
on the Movie
Camera must not be exposed to direct sunlight and not
be covered with clothes, etc.
• When operating the Zoom Function with the
Remote Controller, it is not possible to vary the
zooming speed. Also, there is a slight delay
between pressing the Zoom Buttons on the Remote
Controller and the actual operation of the
mechanical zoom function on the Movie Camera.
