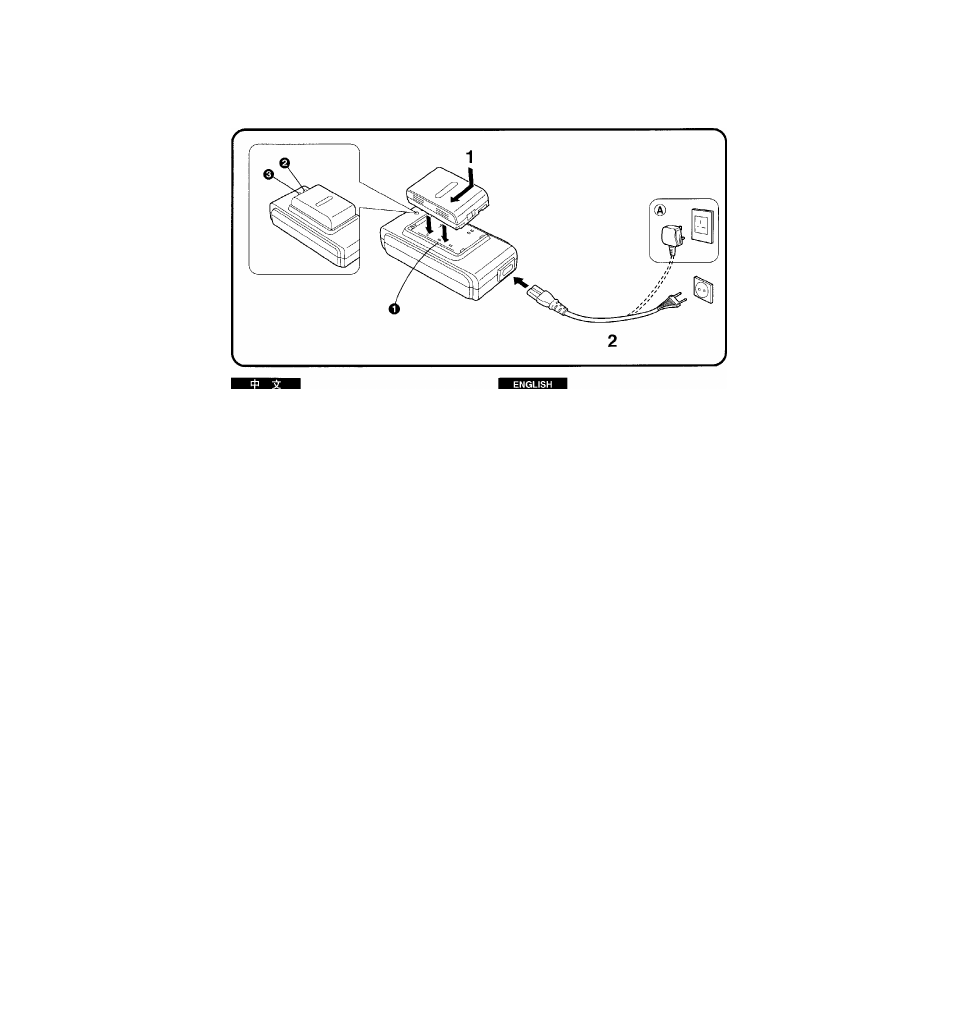

Charging the Battery
1
Attach the Battery.
•Align the Battery with line O ^nd push it in the
direction of the arrow while holding it down.
(To remove the Battery, slide it in the opposite
direction.)
2
Securely connect the AC Mains Cable
to the AC Adaptor and an AC Mains
Socket.
@: Hong Kong Only.
•The Power Lamp
Q lights and then the Charging
Lamp @ lights, too.
■ Charging Lamp
Lit: During charging
Not lit: Charging has finished. For an optimum charge,
continue charging for 2 hours after the lamp
goes out.
■ Removing the Battery
Slide it in the opposite direction of that indicated in Step
1 above.
• Charge the Battery at a room temperature between
10“C and 35"C.
•When the AC Adaptor is used to supply the Movie
Camera with power, it cannot charge the Battery.
• Do not charge the Battery again when it is already
fully charged.
• During recording or during charging, the Battery
may become warm. This is normal.
16
