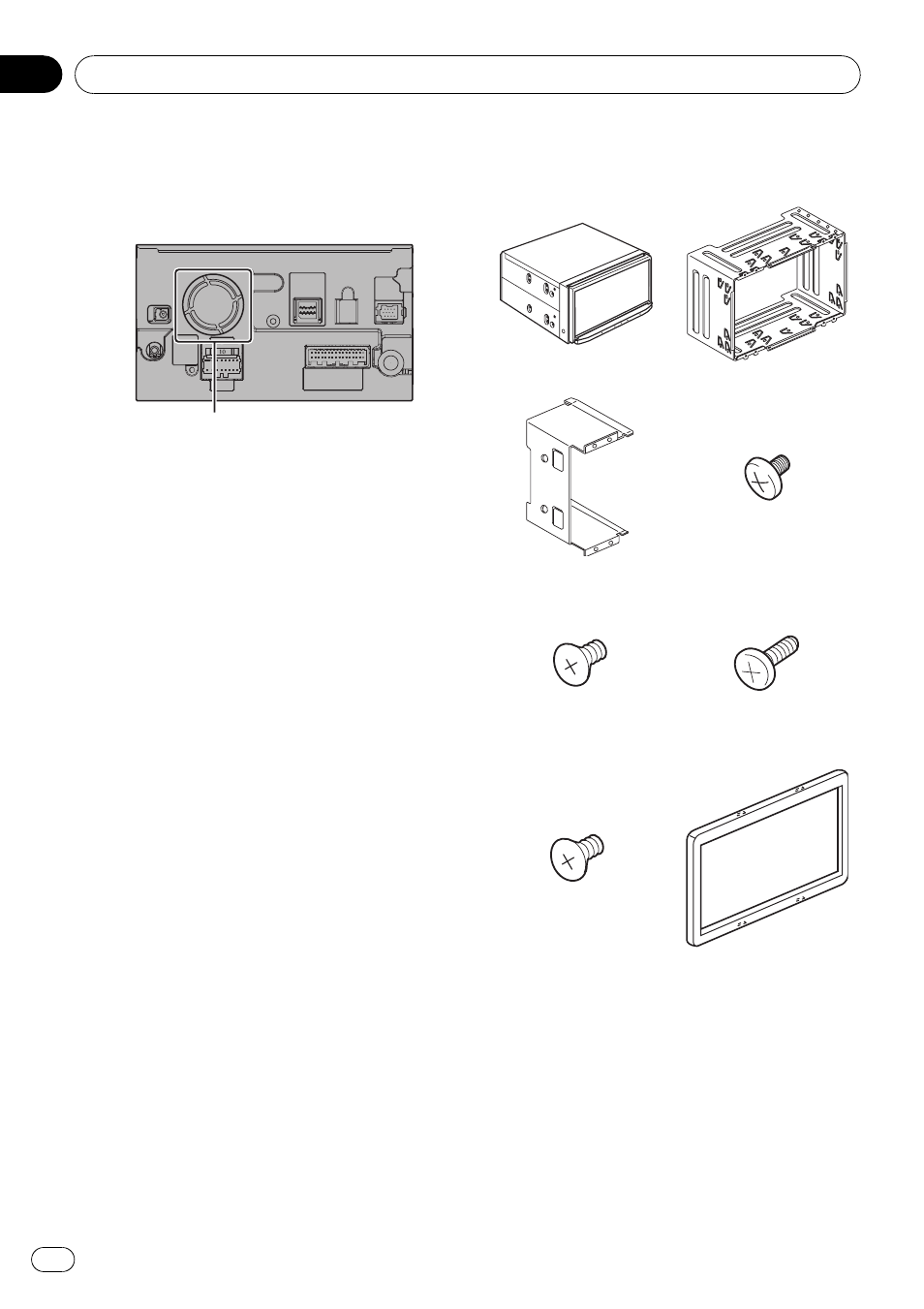

! The cords must not cover up the area
shown in the figure below. This is neces-
sary to allow the amps and navigation me-
chanism to dissipate heat.
Do not cover this area.
! The semiconductor laser will be damaged
if it overheats, so don
’t install the naviga-
tion unit anywhere hot
—for instance, near
a heater outlet.
Parts supplied
Parts marked (*) are pre-installed.
The navigation unit Holder*
Side bracket*
(2 pcs.)
Binding screw
(5 mm × 8 mm)
(8 pcs.)
Flush surface screw
(5 mm × 8 mm)
(4 pcs.)
Screw*
(3 mm × 6 mm)
(8 pcs.)
Screw for fixing the
side bracket*
(5 mm × 8 mm)
(4 pcs.)
Trim ring*
Installation
Engb
22
Section
04
