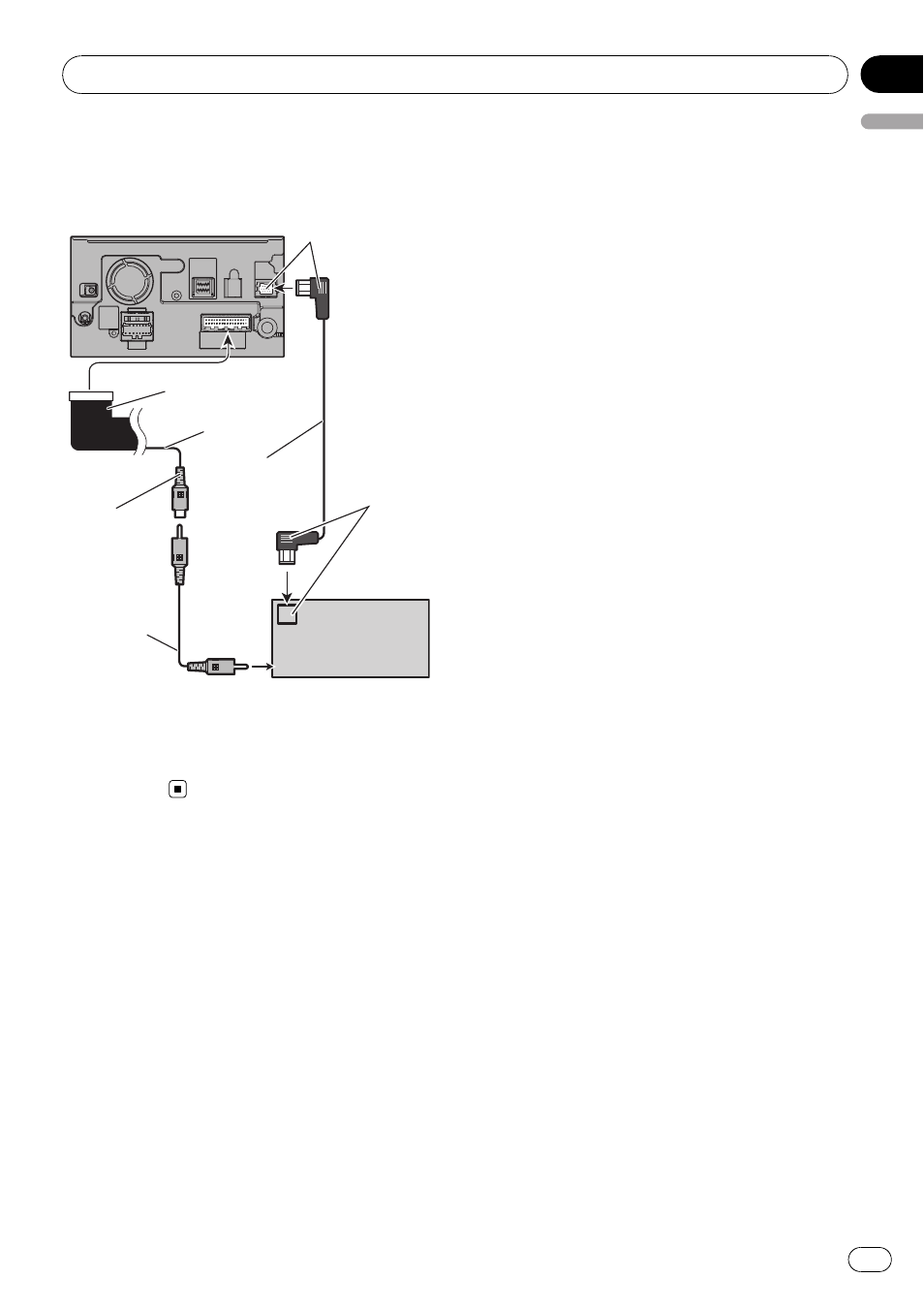

When connecting the external
unit featuring video source
The navigation unit
Blue
Pioneer external unit
(sold separately)
20 cm
Yellow
(VIDEO INPUT)
To video output
Black
RCA connector
IP-BUS cable
(sold separately)
RCA cable
(sold separately)
To IP-BUS
output
! It is necessary to set [AV2 Input] in [AV
Settings] to [EXT] when connecting the ex-
ternal unit. (For details, refer to
“Operation
Manual
”.)
Connecting the System
Engb
19
