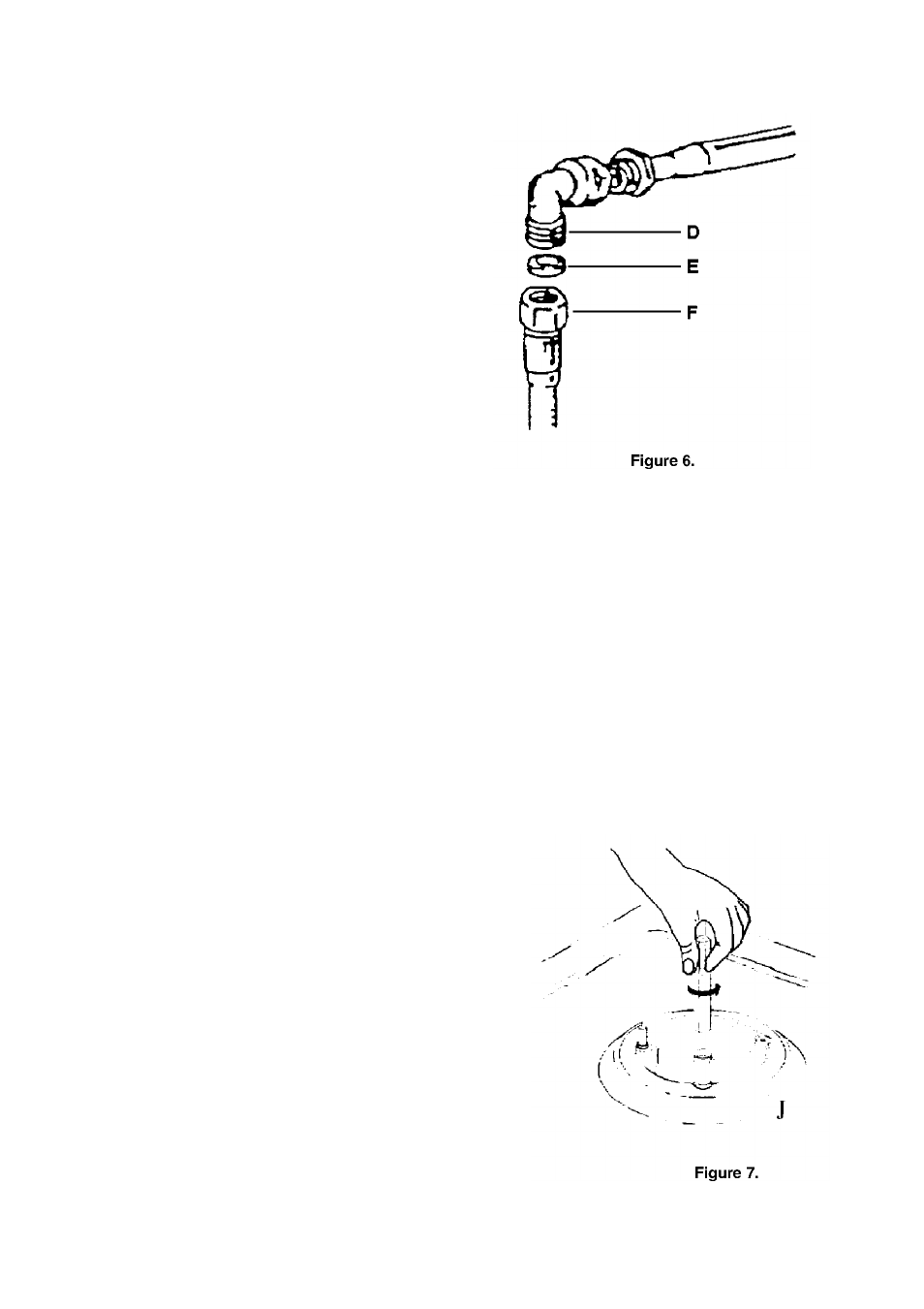

D - Gas supply connector
E - Seal
F - Gas pipe
Important: to connect the appliance to LPG supply, place a pressure regulator which is compliant with the
current standards between the pipe and the gas tank.
Attention: when finished, check that there are no gas leaks. Use soap and water or special liquids to
ensure that there are no gas leaks.
DO NOT USE OPEN FLAME WHEN SEARCHING FOR GAS LEAKS.
Warning: the use of rubber flexible hose fastened with hose clamps is prohibited because it cannot be
inspected.
Adapting the hob to the gas in use.
It is possible to use different types of gas by replacing the injectors of the gas burners.
If spare injectors are not supplied with the appliance, they are available in the authorized Service centers.
Please, see the table above in order to choose the right type of injectors for replacement.
The injectors are identified by their diameter stamped on the body of the injector itself.
Replacing the injectors.
- Remove the grids and burner caps from the hob;
See figure 7 below.
- Using a socket wrench, replace the injectors (J)
with the suitable ones for the type of gas used.
- Replace the burners and the grids to their
original places.
