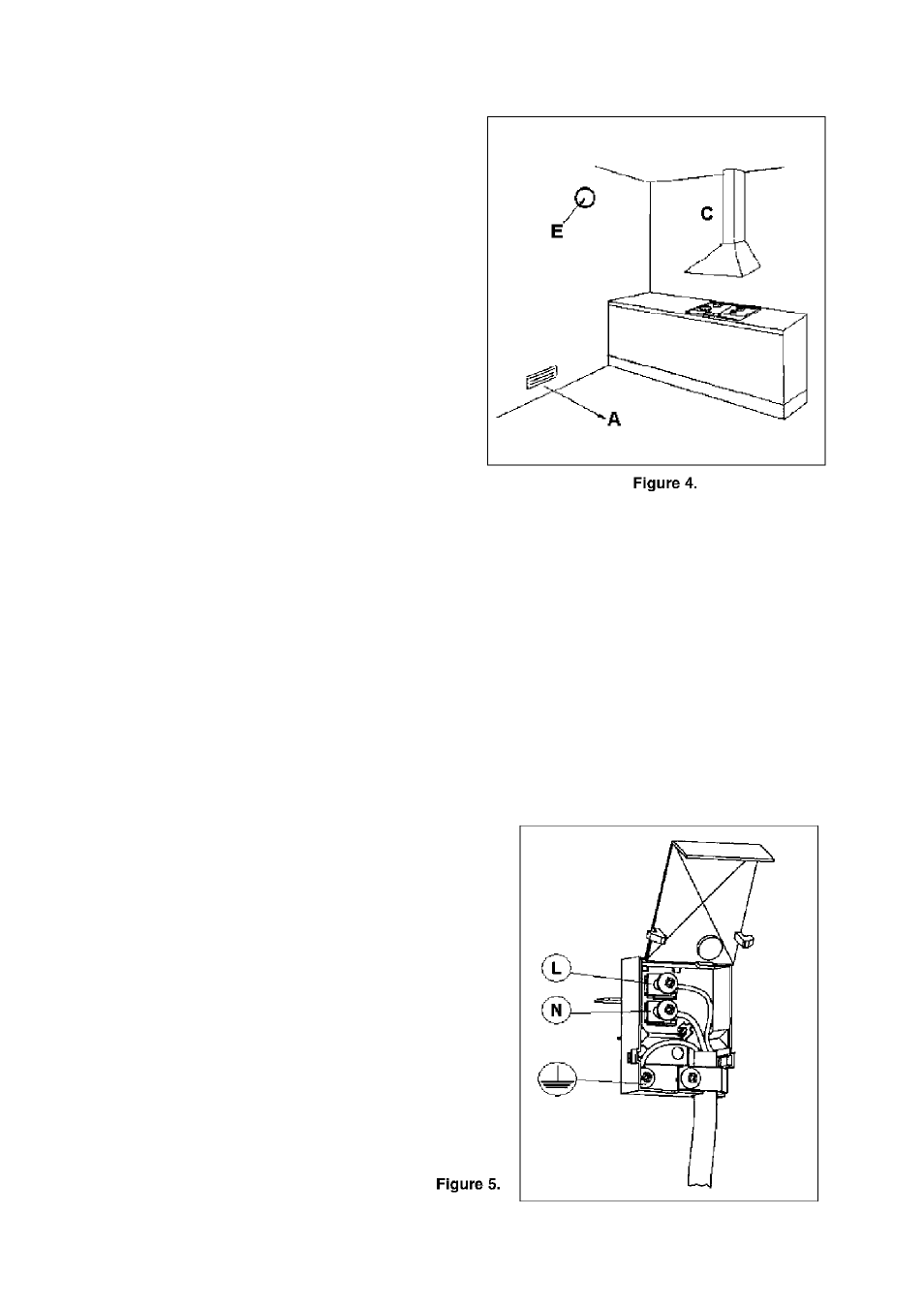

C = Hood for exhaust removal of combustion fumes
E = Electric extractor fan for removal
of combustion fumes
A = Opening for air supply
The opening A must be free and keep assured that it is not obstructed from the inside or outside. Preferably
position it on the floor level, on the opposite side of the fume exhaust devices.
If the area does not allow such solution, the air could be supplied by an adjacent suitable ventilated room, as
long as it is not a bedroom, a low-pressure area or a dangerous area.
Removal of combustion fumes
Combustion fumes produced by gas appliances must get outside by means of a hood (C) connected either
directly to an exhaust duct or to the outside. See figure 4 above.
If a hood cannot be installed, an electric extractor fan (E) must be fitted to the outside wall or the window.
See figure 4 above. This electric extractor fan must have a sufficient capacity to guarantee a change of air of
the kitchen (or area) of at least 3 to 5 times its volume.
3. ELECTRICAL CONNECTION
Before connecting the appliance to the electricity supply, check if the voltage and frequency corresponds to
that indicated on the product plate, and the power supply cable is suitable for the appliance
capacity indicated on the product piate.
Assembly of the power cable
BROWN - LIVE (L)
BLUE - NEUTRAL (N)
YELLOW-GREEN - EARTH ( ± )
