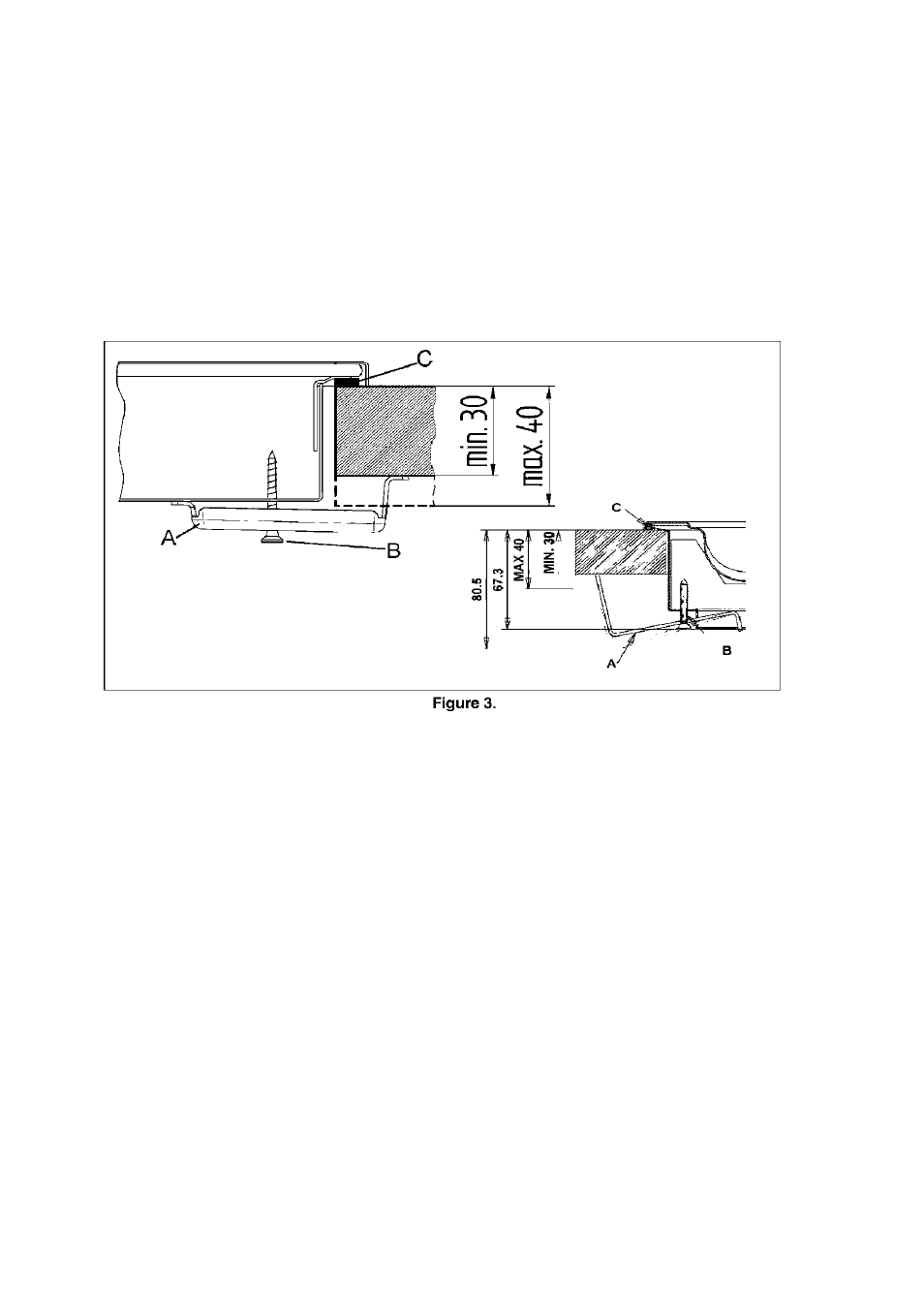

To fix the hob in the housing, proceed as follows, see figure 3 below:
- Position the special gasket supplied (C) along the outer perimeter of the worktop, following the scheme
shown in figure 1.1 or 1.2 above, so that the ends of the gasket meet exactly without overlapping.
- Position the hob into the worktop, ensuring that it is placed exactly in the centre.
- Fix the hob onto the worktop using the special fixing brackets (A) and fixing screws (B) supplied with the
appliance, as shown in figure 3 below.
Important: the correct installation of the sealing gasket ensures complete protection against infiltration of
liquids.
Fixing the hob to the worktop.
Installation area and removal of combustion fumes.
The appliance must be installed and must operate in suitable areas in compliance with the standard
regulations and local laws.
The technician installing the appliance must observe the current laws governing ventilation and removal of
combustion fumes.
The air required for combustion is 2m 3 /h per kW of power (gas) installed.
Installation area
In the area where the gas appliance will be installed, there must be sufficient natural air supply to allow the
gas to burn correctly.
The natural flow of air must take place by means of an opening made through an outer wall of the room and
it should have a working section of at least 100 cm 2 (A).
In case of appliances without safety valves, the wall opening section should be of minimum 200 cm 2 (A).
See figure 4 below.
