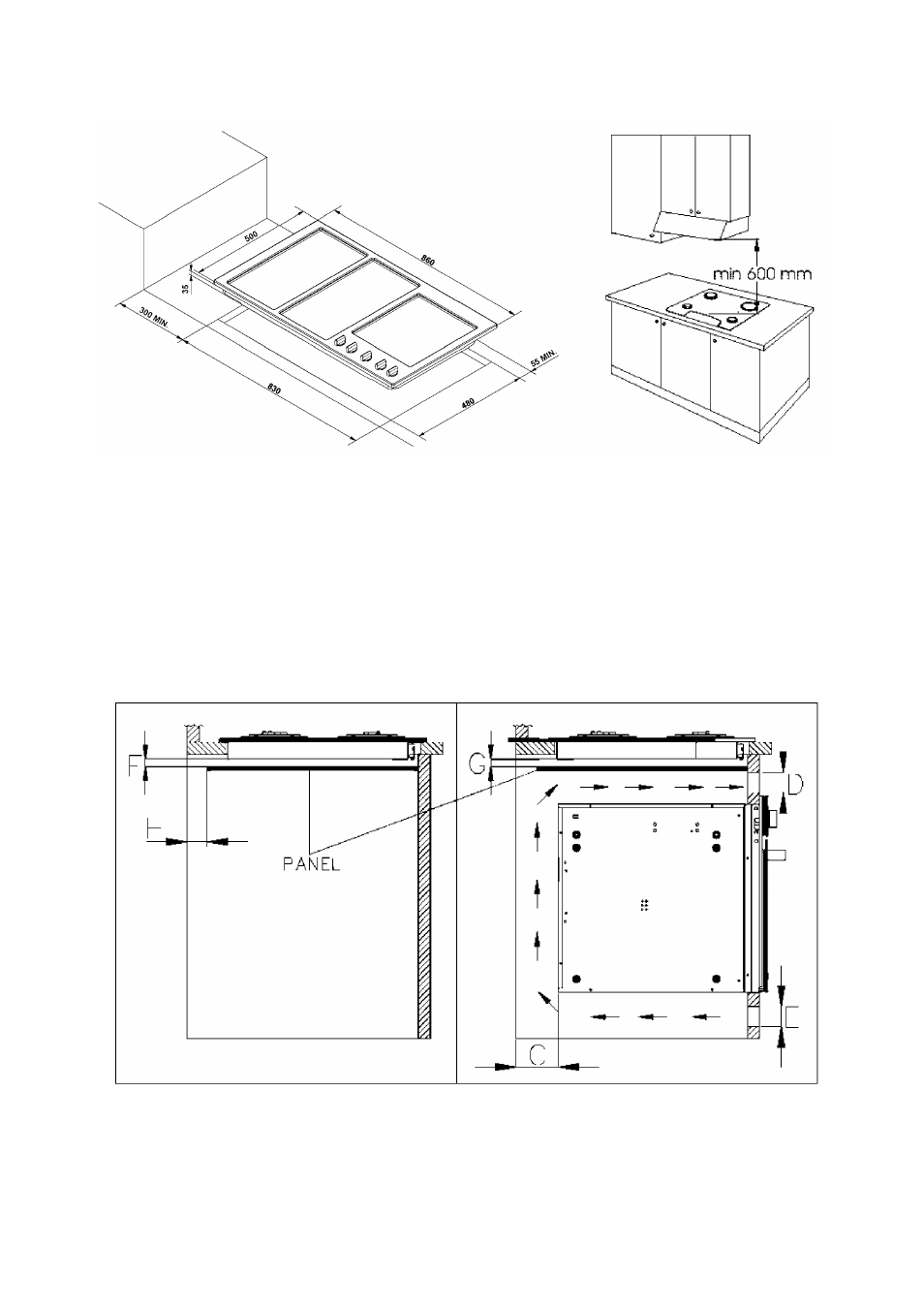

Figure 1.2.
Important:
If the hob is installed and there is no oven below it, you need to put a separator panel between the bottom of
the hob and the top of the furniture below, which should be positioned at a minimum distance of 10 mm
below the hob.
If the hob is installed over an oven, place a separator panel at a minimum distance of 15 mm below the hob,
and follow the oven manufacturer’s instructions, ensuring sufficient aeration as specified in figure 2 below.
In any of the above cases, the electrical connection of the two appliances must be carried out separately,
both for electrical purpose and also to facilitate removal.
It is advisable to use an oven equipped with an internal forced cooling system.
WITHOUT OVEN BELOW
WITH OVEN BELOW
F = 10mm (min.)
H = 50mm (min.)
G = 15mm (min.)
D = 120cm2
E = 180cm2
C = 30mm (min.)
Figure 2.
