Watching Playback on a TV Set
By connecting the Movie Camera to a TV, you can watch
playback of the recorded scenes on the TV screen.
Before connecting, turn off both the Movie Camera and
the TV for safety’s sake.
1

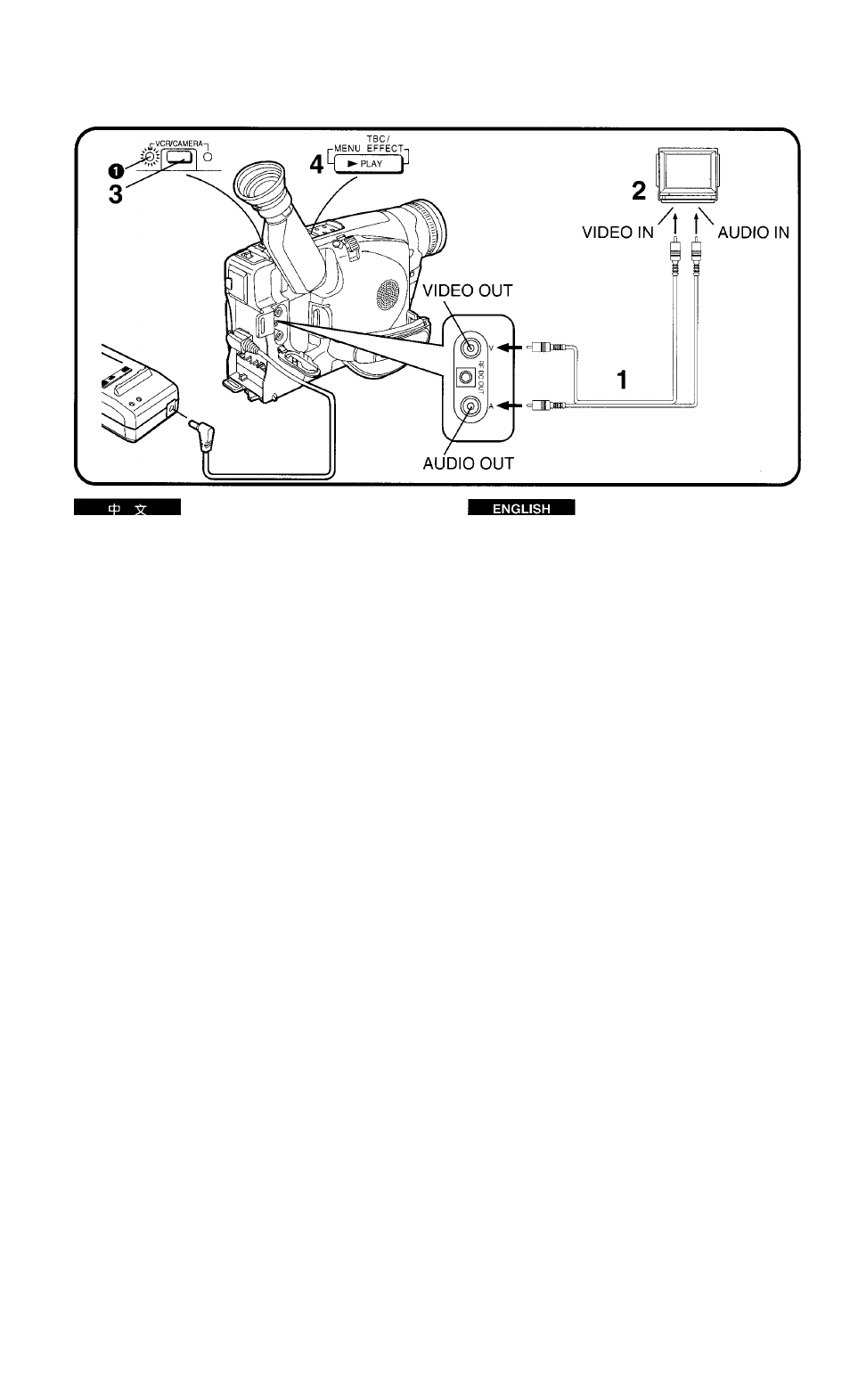

Use the AV Cable (supplied) to connect the
Movie Camera with the TV.
Movie Camera TV (AV Input Sockets)
VIDEO OUT -------------> VIDEO IN
AUDIO OUT -------------^ AUDIO IN
2
Select the channel on the TV which
corresponds to the video/audio input
sockets used for connecting.
(Refer to the operating instructions of your TV)
3
Press the [VCR/CAMERA] Button to select
the VCR Mode.
•The [VCR] Lamp lights.
4
Start playback on the Movie Camera. (^ 6 8 )
If your TV is not equipped with AV Input Sockets, the RF
Adaptor (VW-RF7E; optional) is necessary.
Consult your dealer.
74
