ENGLISH

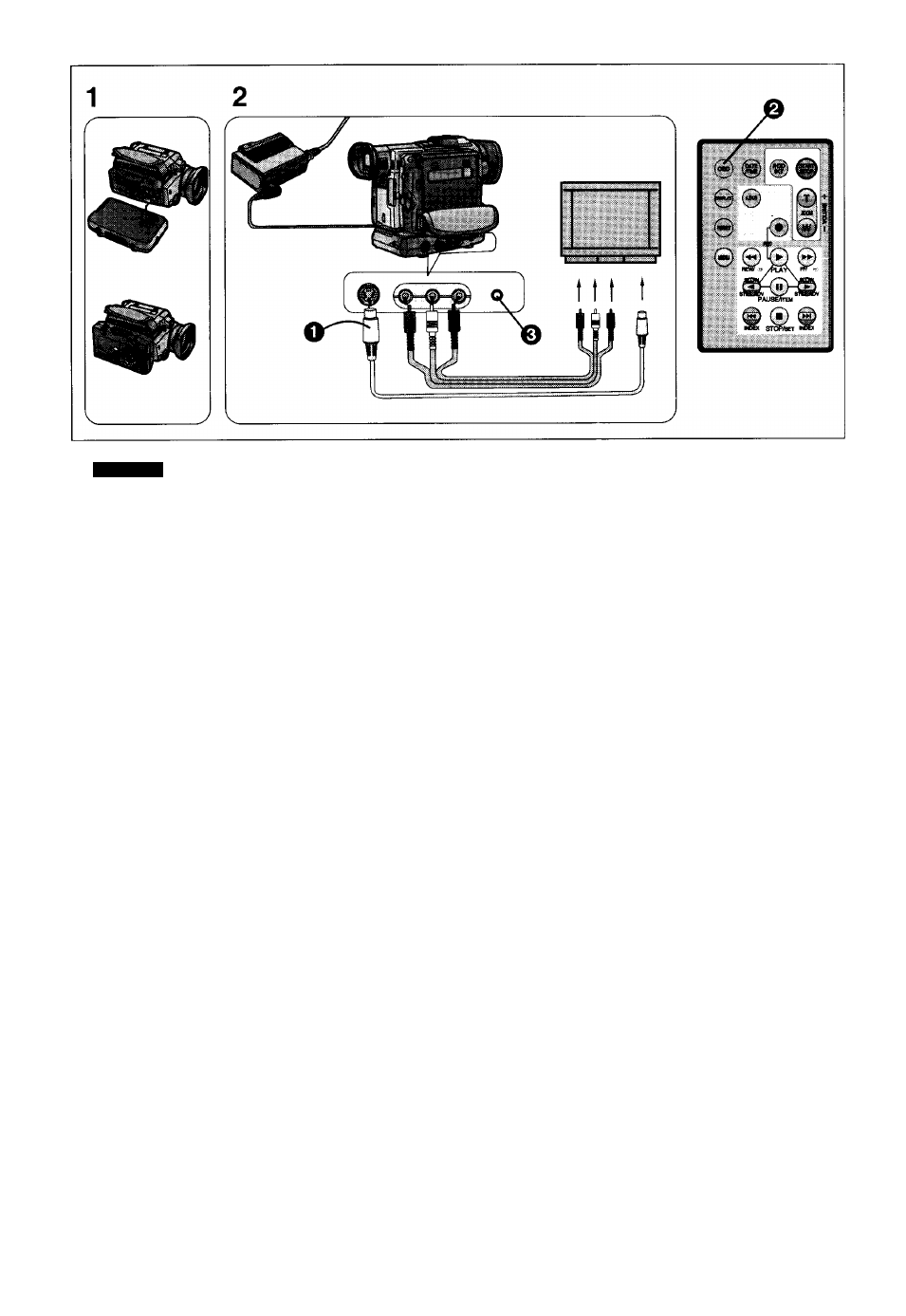

Playing Back on a TV
(With the Output Terminal Box Attached)
Attaching the Output Terminal Box to the Movie Camera
makes it possible to playback recorded scenes on a TV.
1
Attach the Output Terminal Box.
(-♦110)
2
Connect the Video and Audio Output
Sockets to the Video and Audio Input
Sockets on the TV.
Use the AV Cable to connect to the TV. If your TV is
equipped with an S-Video Socket, also connect the
S-Video Cable Q-
♦ Before connecting, turn off both the Movie Camera and
the TV.
♦ If a cassette recorded with copyright protection signal
is played back, the screen becomes black. However,
scenes recorded with this Movie Camera do not
contain a copyright protection signal.
Making the Indications Appear on the TV
Screen
Press the [OSD] Button 0 on the Remote Controller.
The On-Screen Indications also appear on the TV
screen.
stilus °
1 0 (-♦ 110 )
JSiLBf ' -feajiÌjiSSÌ'
♦ sigimi ■
tmm »
Siiets± &^[osD] la Q o
ìiìI5S®5«IÌÌ)aSW0|
AliiLH 5 Ìisii|±É)B][PHONE]ifiaL® ’ natlAiijggi
M?« mmm ° > iEitritìftT ^
«siÈijaÀBt ' iìpiìsam (->46) "
Playing Back the Sound via Headphones
Using the [PHONE] Socket Q on the Output Terminal
Box lets you listen to the playback sound via
headphones.
Even if the sound is played back via headphones, the
sound from the Movie Camera’s built-in speaker can also
be heard. If you want to mute the sound from the
speaker, lower the volume 46).
