ENGLISH
Copying onto an S-VHS (VHS)
Cassette
(Dubbing)
tf you attach the Output Terminal Box, you can copy
cassettes recorded from this Movie Camera onto S-VHS
or VHS cassettes.

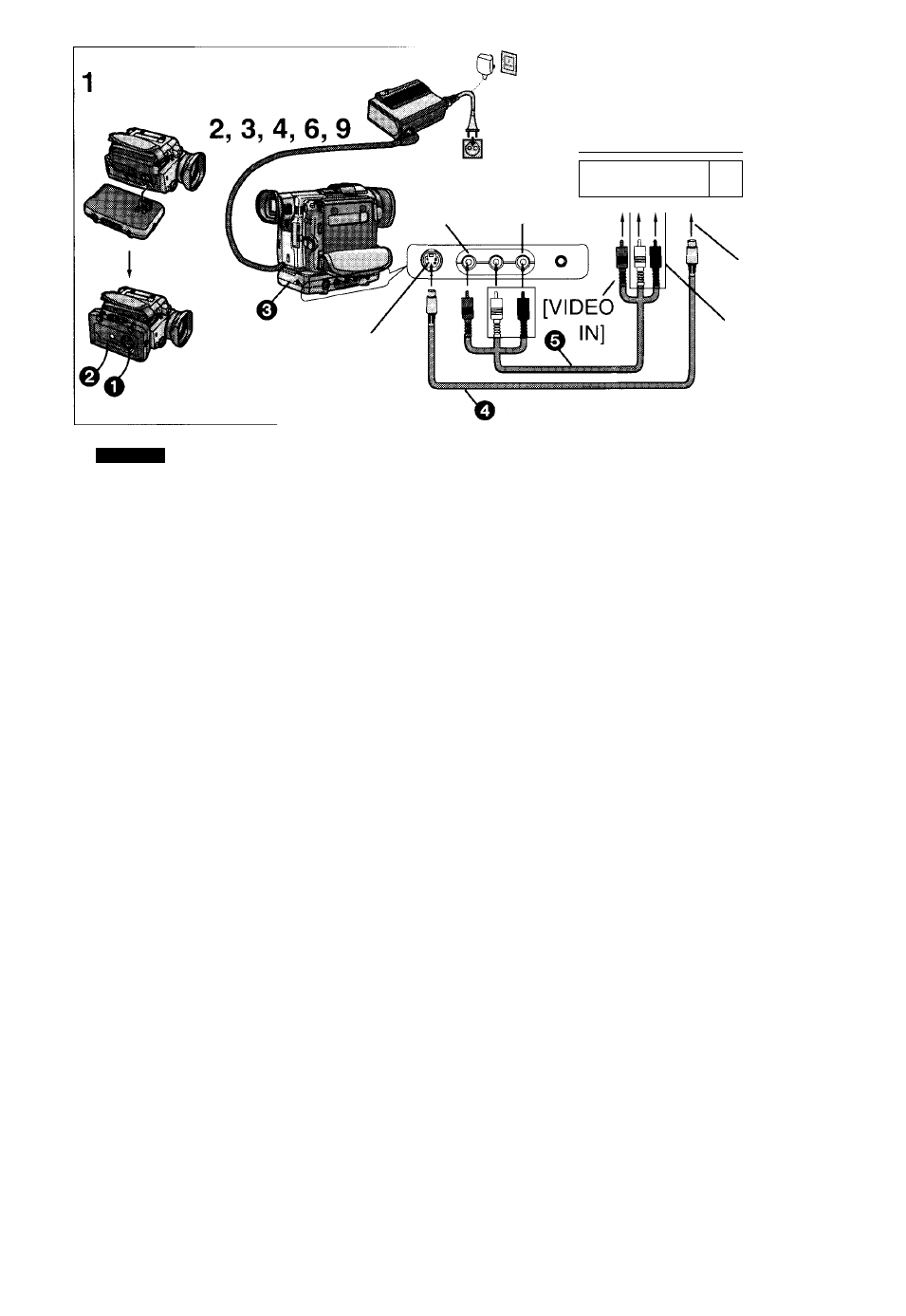

After connecting all equipment as shown above, perform
the following operations.
1 Attach the Output Terminal Box to the
underside of the Movie Camera with the
Screw O-
Extending the Support Leg Q from the underside of
the Output Teminal Box makes it easier to view the
playback picture on the LCD Monitor.
2 [Movie Camera]
Insert the recorded cassette.
3 [VCR]
Insert an unrecorded cassette with intact erasure
prevention tab.
4 [Movie Camera]
Press the Playback Button [►] to start
playback.
5 [VCR]
Press the Recording Button to start recording.
6
[VCR]
Press the Pause or Stop Button to stop
recording.
7 [Movie Camera]
Press the Stop Button [■] to stop playback.
O
Output Terminal Box
O S-Video Cable
© AV Cable
• Before dubbing, press the [OSD] Button (-♦ 54) on the
Remote Controller so that no indications appear.
Otherwise, the Counter Indication and function
indications are also recorded onto the cassette.
VHS (VHS) 0M)
2
mmmm]
'S
a
-
3
mmwM]
4
mmm]
'kZ>'3k\
►]tT '
5
[mmmm]
■ 53;'
6
[mmmm]
ftif AAlAAi
7
mmmm]
115 ■
o
o
©
•
r^iosc
L] .
* '■-►54; ■
110-
