ENGLISH
■ LCD Monitor and Lens Hood
LCD Monitor
• In places where big changes in temperature occur,
condensation may form on the LCD Monitor. Wipe it
with a soft, dry cloth.
• When the Movie Camera is very cold when it is turned
on, the LCD Monitor is initially a little darker than
normally. However, as the internal temperature rises,
the LCD Monitor regains its normal brightness.
• Extremely high precision technology is employed in
producing the LCD Monitor. The result is more than
99.99% effective pixels with a mere 0.01% of the pixels
inactive or always lit.
Lens Hood
• If you want to attach a filter from the Filter Kit (optional),
be sure to first remove the Lens Hood.
However, during recording in the Cinema Mode with a
filter attached, the four corners of the picture may
become dark (vignetting effect), when you push the
[WAT] Zoom Lever toward [W].

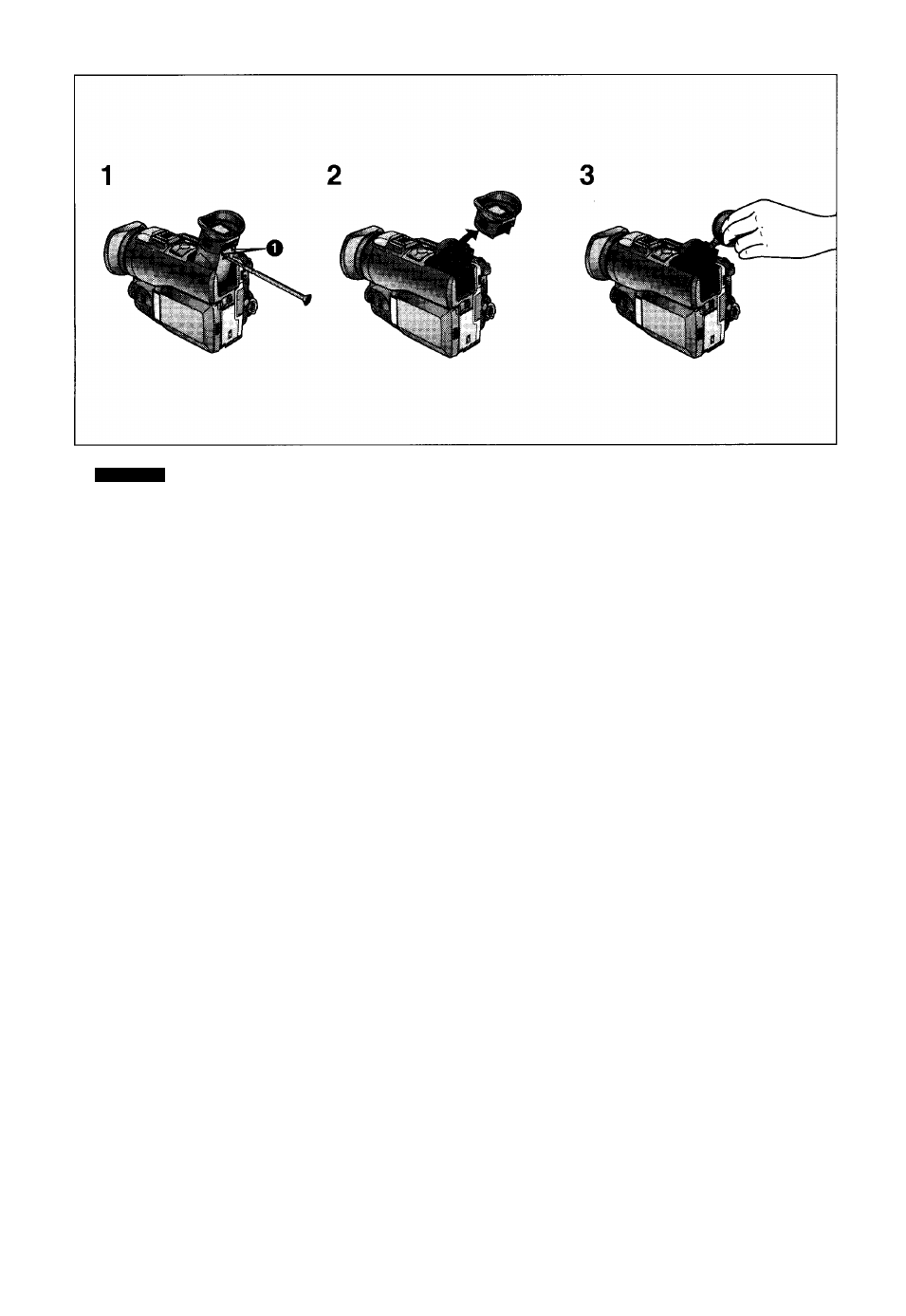

■ Cleaning the Finder
If dust has entered the Finder, clean it in the following
way:
1 Unscrew the screws Q-
2 Remove the Eyecup.
3 Remove the dust with a blower brush (not
supplied).
4 Reattach the Eyecup.
5 Tighten the screws O-
■ Repeat Playback
• If you keep the Playback Button [►] pressed for more
than 5 seconds, the Movie Camera switches over to
the Repeat Playback Mode and the [R>] Indication
appears. (To cancel the Repeat Playback Mode, set
the [POWER ON/OFF] Switch to [OFF].)
• o ¿±^99.99
^ffo' ^
■ Si
1
2
4
5
rnm'Mm
PjBt ' IS;i7[POWER ON/OFF]iaiiSlS[OFF]) °
-150-
