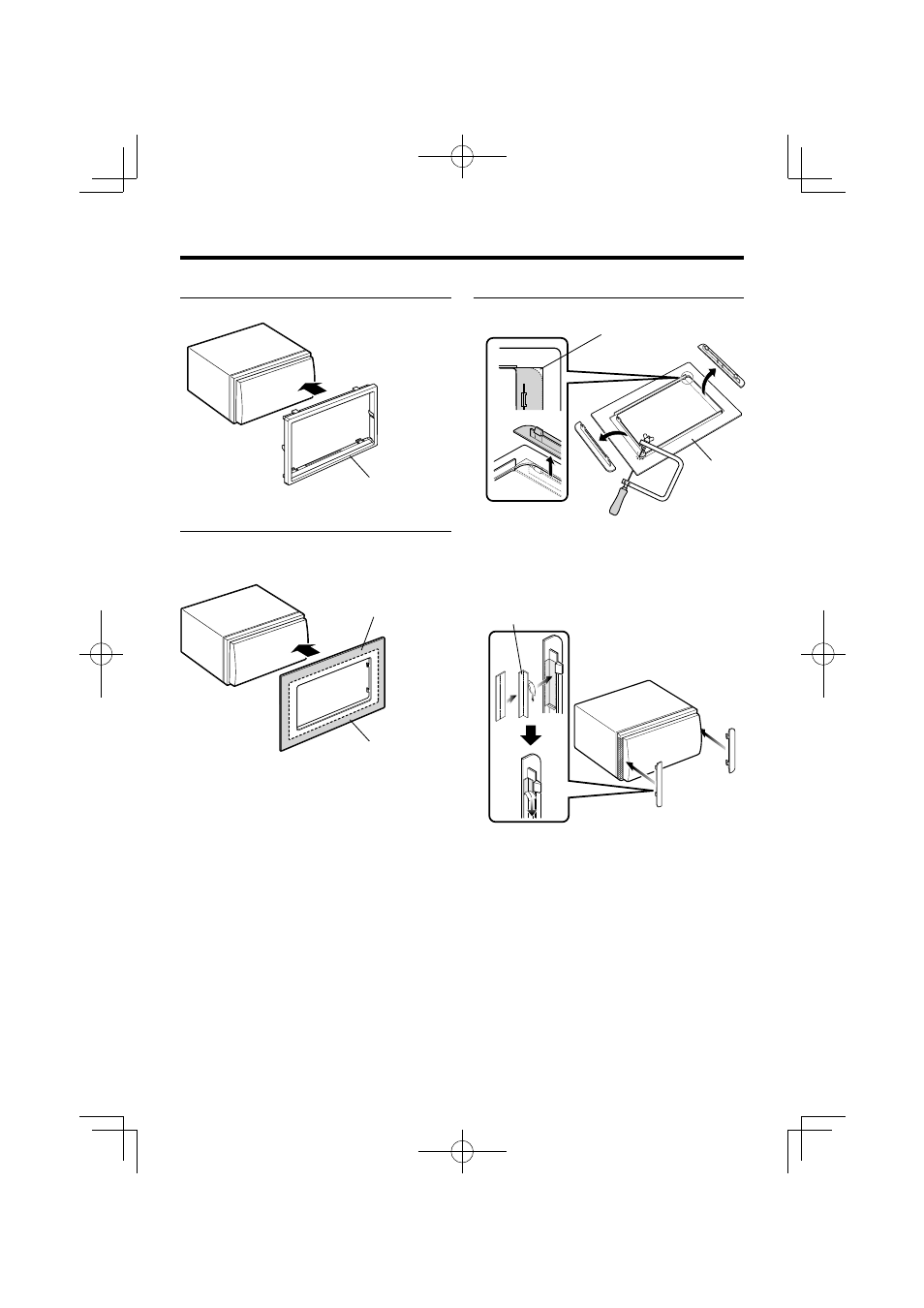

Installation the Escutcheon
For Toyota/Scion (DDX8054BT only)
1. Cut out accessory 6 as illustrated.
2. Fold double-sided adhesive (accessory 7) along
the slit and attach it to accessory 6 cut-out
against the center rib as illustrated. Use 2 pieces of
accessory 7 for 1 accessory 6 cut-out.
3. Attach accessory 6 cut-out to the unit.
For Volkswagen
1. Attach accessory 8 to the unit.
Accessory 8
For General Motors (DDX8054BT only)
1. Cut out accessory 6 to meet the shape of the
opening of the center console.
2. Attach accessory 6 to the unit.
Accessory 6
Cut out to meet the shape of
the opening in the vehicle.
Cutting line
Accessory 6
Accessory 7
