English | 7

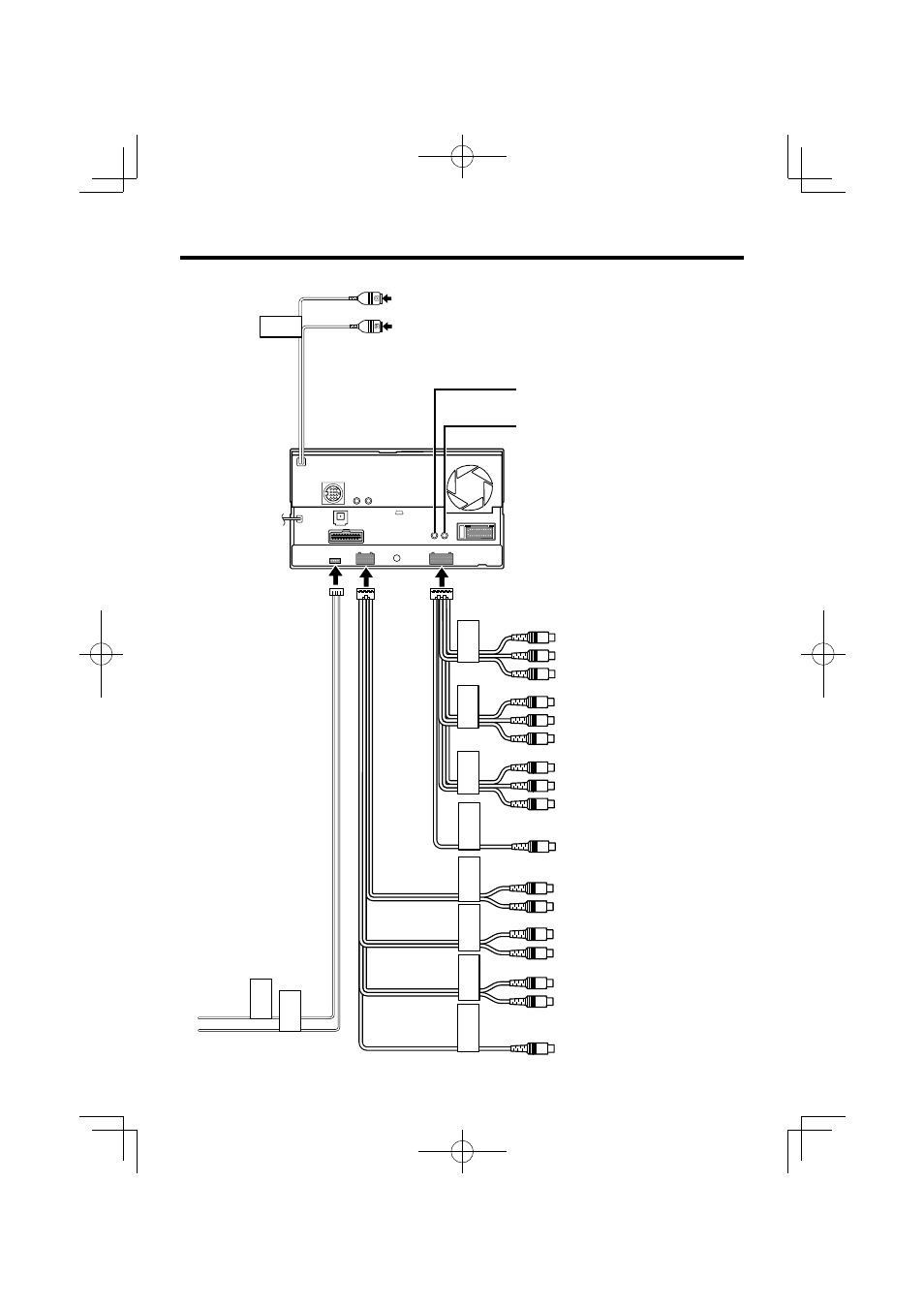

System Connection
CAMERA
REAR VIEW
A
V
IN 2
CENTER
A
V
IN1
FR
ONT
REAR
W
OOFER SUB
RELA
Y 2
RELA
Y 1
A
V
OUT
iPod
To Relay Box
Accessory
2
USB device (commercially available)
Visual input (iPod/AV input 3 switchable)
Resistance-free mini plug (3.5φ)
Audio input (iPod/AV input 3 switchable)
Resistance-free stereo type mini plug (3.5φ)
Accessory
3 Accessory 4
USB terminal
Front Preout
• Audio left output (White)
• Audio right output (Red)
Rear Preout
• Audio left output (White)
• Audio right output (Red)
Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
Rear View Camera input
• Visual input (Yellow)
Audio/Visual input
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
Audio/Visual input
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
Audio/Visual output
• Visual output (Yellow)
• Audio left output (White)
• Audio right output (Red)
Center Preout
iPod (commercially available)
