Installation Instructions
LSM/LTM Series
9
2.
Adjust Velcro® pull strap (if necessary) so it does not
extend beyond bottom of screen. (See Figure 8)
NOTE:
Do NOT allow both interface brackets (W and X or Y
and Z) to be located on same side of wall bracket. (See
Figure 8)
NOTE:
NEVER place both interface brackets (W and X or Y
and Z) to one side of the wall mount center line! (See
Figure 8)

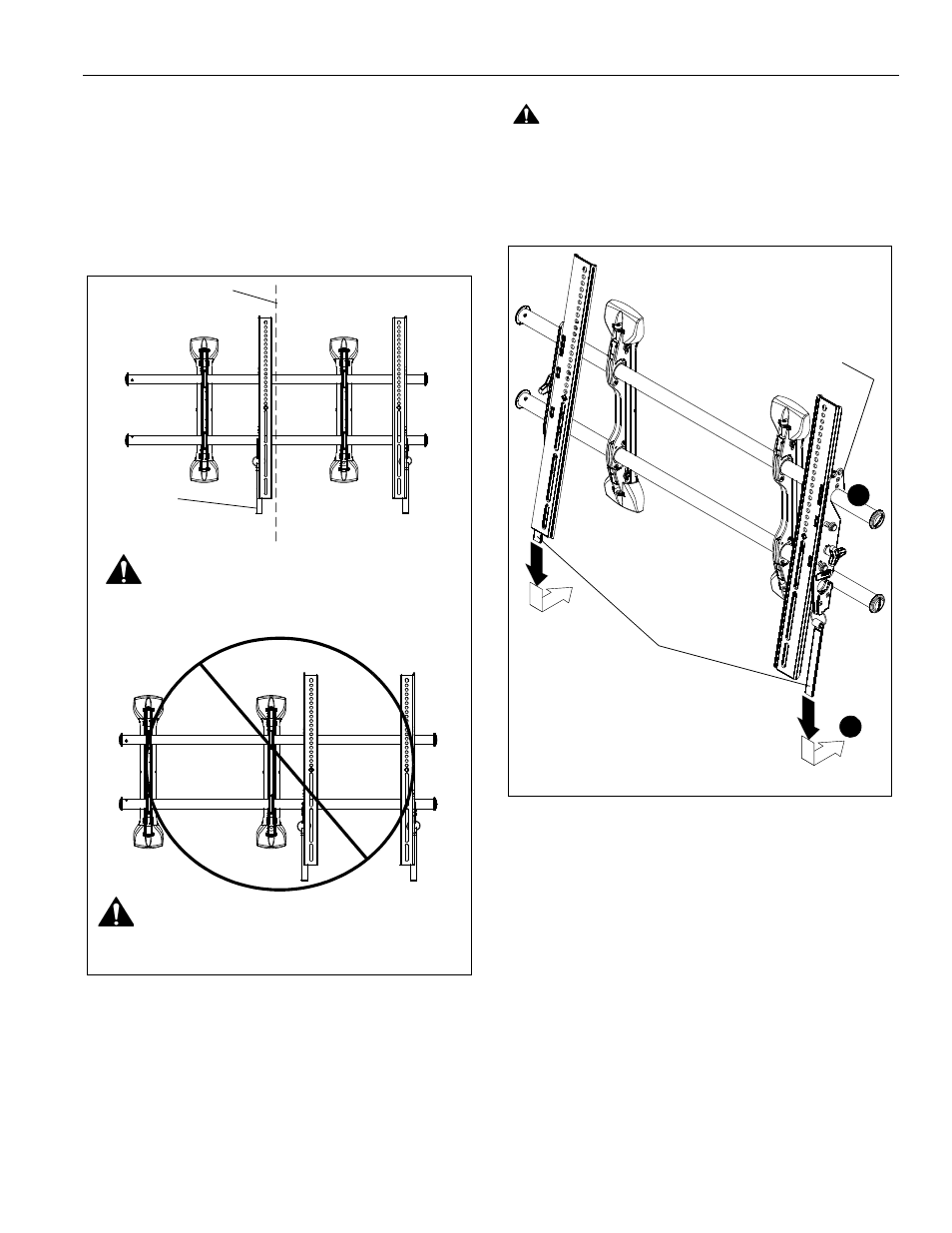

Figure 8
3.
Hang top hook of interface brackets (W and X or Y and Z)
onto the top bar of the mount (R). (See Figure 9)
NOTE:
The screen initially installs into the "kickstand mode" to
allow easy cable access.
4.
Slide screen and bars to desired viewing position.
5.
Route cables between wall and bars.
CAUTION:
PINCH POINTS! Keep fingers, hands and
cables out of pinch point areas.
6.
Pull downward on the pullstraps and swing inward toward
wall, latching interface brackets to lower bar and locking
bottom of screen to the mount. (See Figure 9)
Figure 9
Both interface brackets must NEVER be located
to one side of the wall brackets!
Pullstrap
NEVER place both interface brackets to one
side of the wall mount center line (CL)!
Center Line (CL)
[Brackets W and X shown]
3
6
Top
Hook
(Screen not shown for clarity)
Pullstraps
[Brackets Y and Z shown]
