LSM/LTM Series
Installation Instructions
8
Switching Interface Brackets (Optional)
If an installation situation makes adjusting the location of
interface brackets necessary, there are several options.
1.
The wall brackets may be adjusted side to side at the point
of attachment. (See Figure 5)
2.
The location of the left and right interface brackets (W and
X or Y and Z) may be switched, with the knobs on the LTM
interface brackets (Y and Z) facing the inside of the mount.
(See Figure 5)

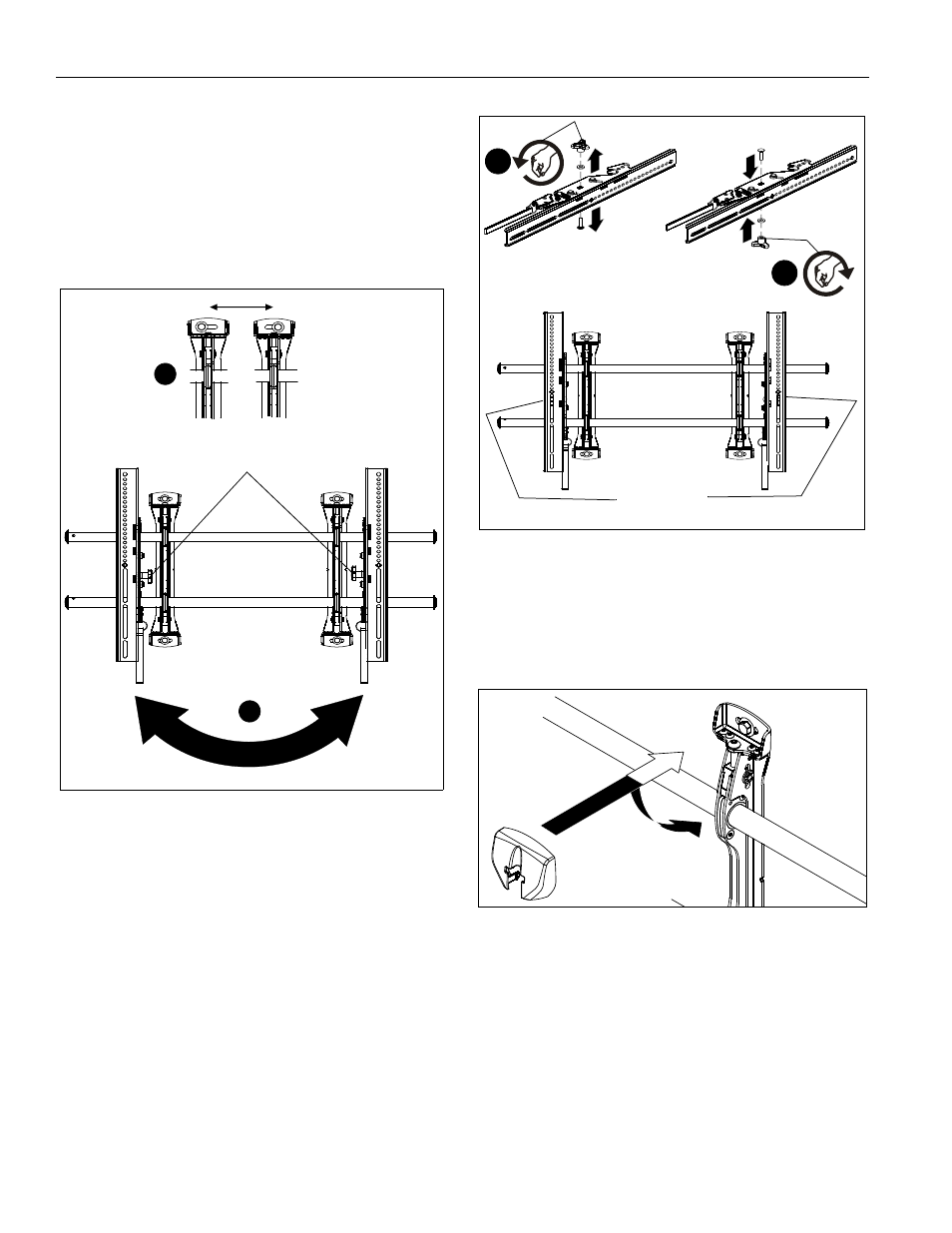

Figure 5
3.
If necessary, the tilt interface bracket knobs may be
switched to allow the interface brackets (Y and Z) to be
reversed. (See Figure 6)
a. Remove display from mount.
b. Remove interface brackets from display.
c. Hold the right interface bracket horizontally, tightly
gripping it so that spacers do not move.
d. Remove the knob, washer and screw.
e. Replace the knob, washer and screw in the opposite
order, with the knob on the inside of the bracket.
f. Switch the right interface bracket to the left side of the
wall mount.
g. Repeat Steps 3c through 3f with the left interface
bracket.
Figure 6
Attaching Screen to Wall Mount
1.
Attach wall bracket caps (V) to top and bottom of both wall
brackets. (See Figure 7)
Figure 7
1
2
Knobs
[Brackets Y and Z shown]
3d
3e
Knobs to outside
of brackets
[Brackets Y and Z shown]
(V) x 4
