Installing to a Concrete Wall
1. Determine the center of the TV screen, and where it should
be located on the wall.
2. Line up the notches on mount (A) with center of screen
marking to determine vertical center. (See Figure 1)
3. Measure up 7-1/2" (190.5mm) from the center point to mark
location of the upper mounting slots. (See Figure 1)
4. Using a level, mark the wall through both upper mounting
slots. (See Figure 3)
CAUTION: MINIMUM HORIZONTAL DISTANCE
BETWEEN WALL BRACKETS IS 12" (304.8mm). Do not
place mounting brackets closer together than 12" (304.8mm).
WARNING: ELECTRICAL SHOCK HAZARD! CUTTING
OR DRILLING INTO ELECTRICAL CORDS OR CABLES
CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!
ALWAYS make certain area behind mounting surface is free
of electrical wires and cables before drilling or installing
fasteners.
WARNING: EXPLOSION AND FIRE HAZARD! CUTTING
OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH
OR SERIOUS PERSONAL INJURY! ALWAYS make certain
area behind mounting surface is free of gas, water, waste, or
any other plumbing before cutting, drilling, or installing
fasteners.

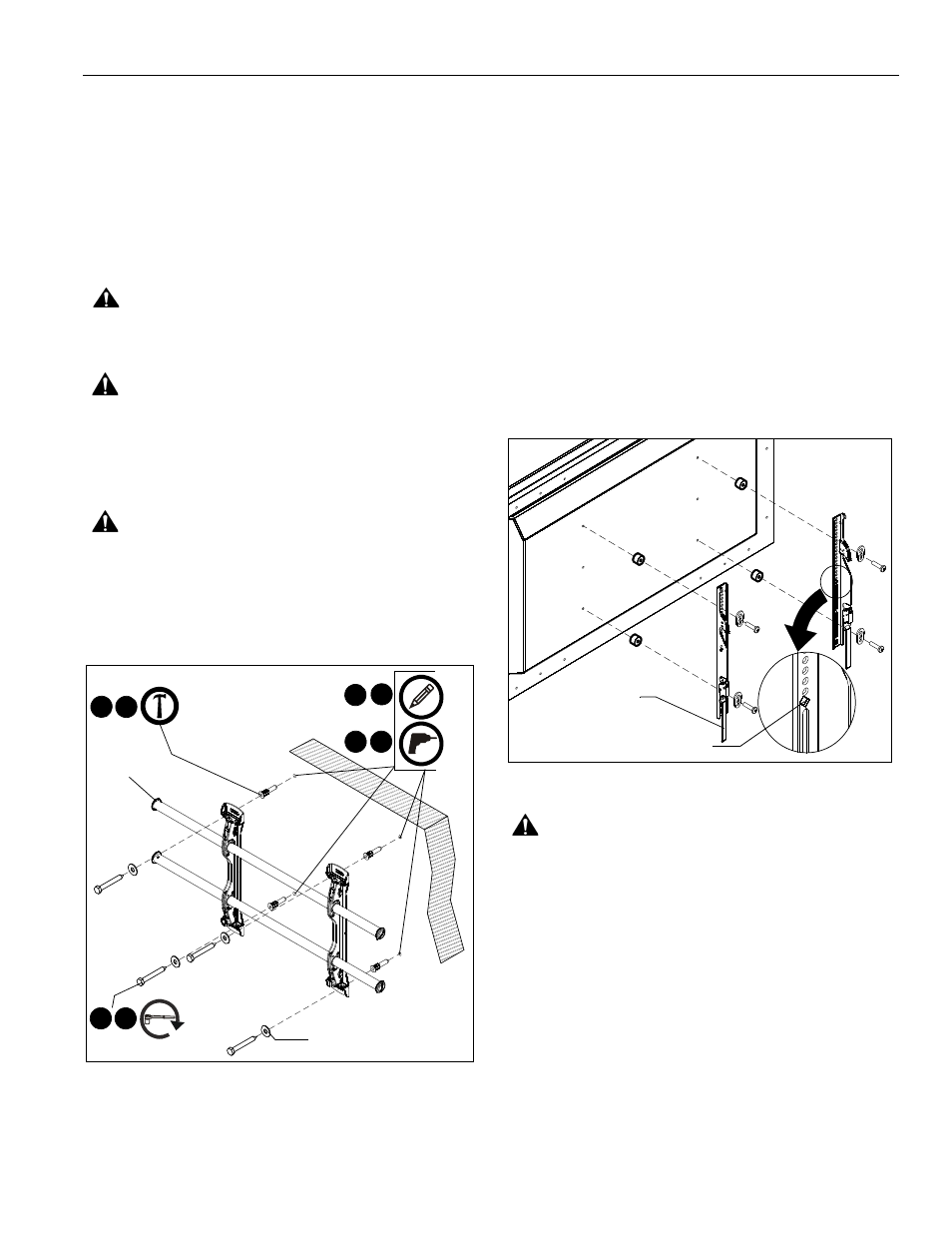

Figure 3
5. Drill one 5/16" (7.9mm) pilot hole at each marking.
6. Install an anchor (QA) into each pilot hole using a hammer,
making sure that the anchor is flush with the wall.
7. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat
washers (QB) to attach top of mount (R) to anchors in wall.
8. Mark the attachment points for the lower mounting slots.
(See Figure 3)
9. Drill one pilot hole at each marking for lower mounting
holes. (See Figure 3)
10. Install an anchor (QA) into each pilot hole using a hammer.
11. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 3)
12. Slide rails to approximate center of screen location.
Attaching Interface Brackets to Display
1. Align the center of the bracket (W and X or Y and Z) with
center of screen. (See Figure 4)
NOTE: The diamond-shape hole in the bracket corresponds to
the center of the mount.
Figure 4
WARNING: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Using screws of
improper size may damage your display. Properly sized
screws will easily and completely thread into display
mounting holes. If spacers are required, be sure to use longer
screws of the same diameter.
2. Select correct screws, spacers (if necessary) and universal
washers from the hardware bag (A-N) for LSMU/LTMU
models; and from the hardware bag included for LSM5XXX/
LTM5XXX models, and attach brackets to back of screen.
(See Figure 4)
8
5
6
4
9
x4
(QA) x 4
10
7 11 (QC) x 4
(QB) x 4
(R)
Center of bracket
Pull strap
[Brackets W
and X shown]
