LSM/LTM Series
Installation Instructions
10
Adjusting Roll/Height of Wall Brackets
NOTE:
The height adjust wall brackets allow adjustment of
+ 1/2".
1.

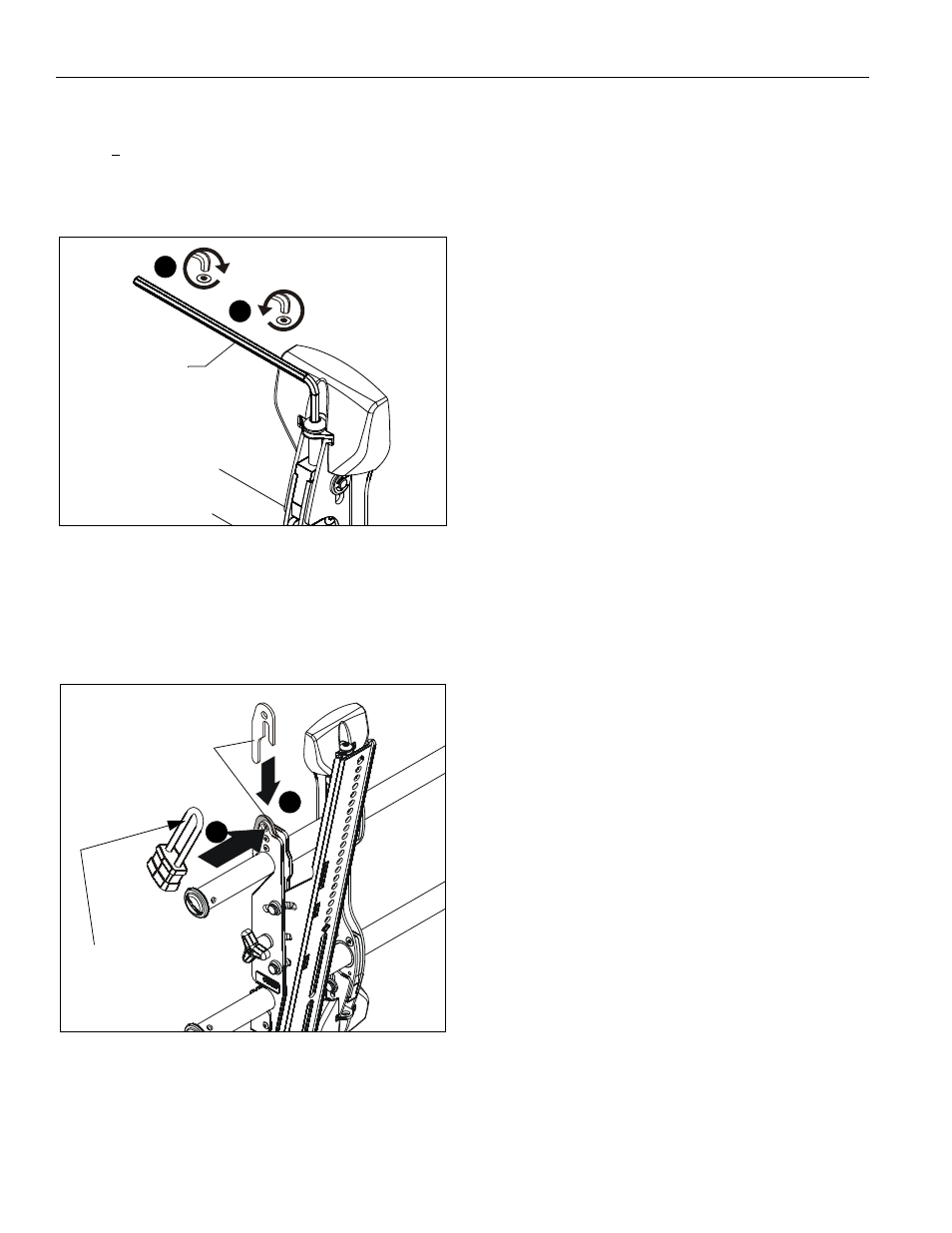

Turn to right (tighten) to raise side of screen. (See Figure 10)
2.
Turn to left (loosen) to lower side of the screen.
Figure 10
Locking Mount (Optional)
1.
Add optional security bracket (S or T) to the mount. (See
Figure 11)
2.
Add padlock (not included) to complete security.
Figure 11
Raises screen
Lowers screen
1
2
(U)
(Screen not shown for clarity)
(S)
1
2
(LTM Shown)
Padlock shackle diameter:
- Min: 1/4" (6.3mm)
- Max: 5/16" (7.9mm)
