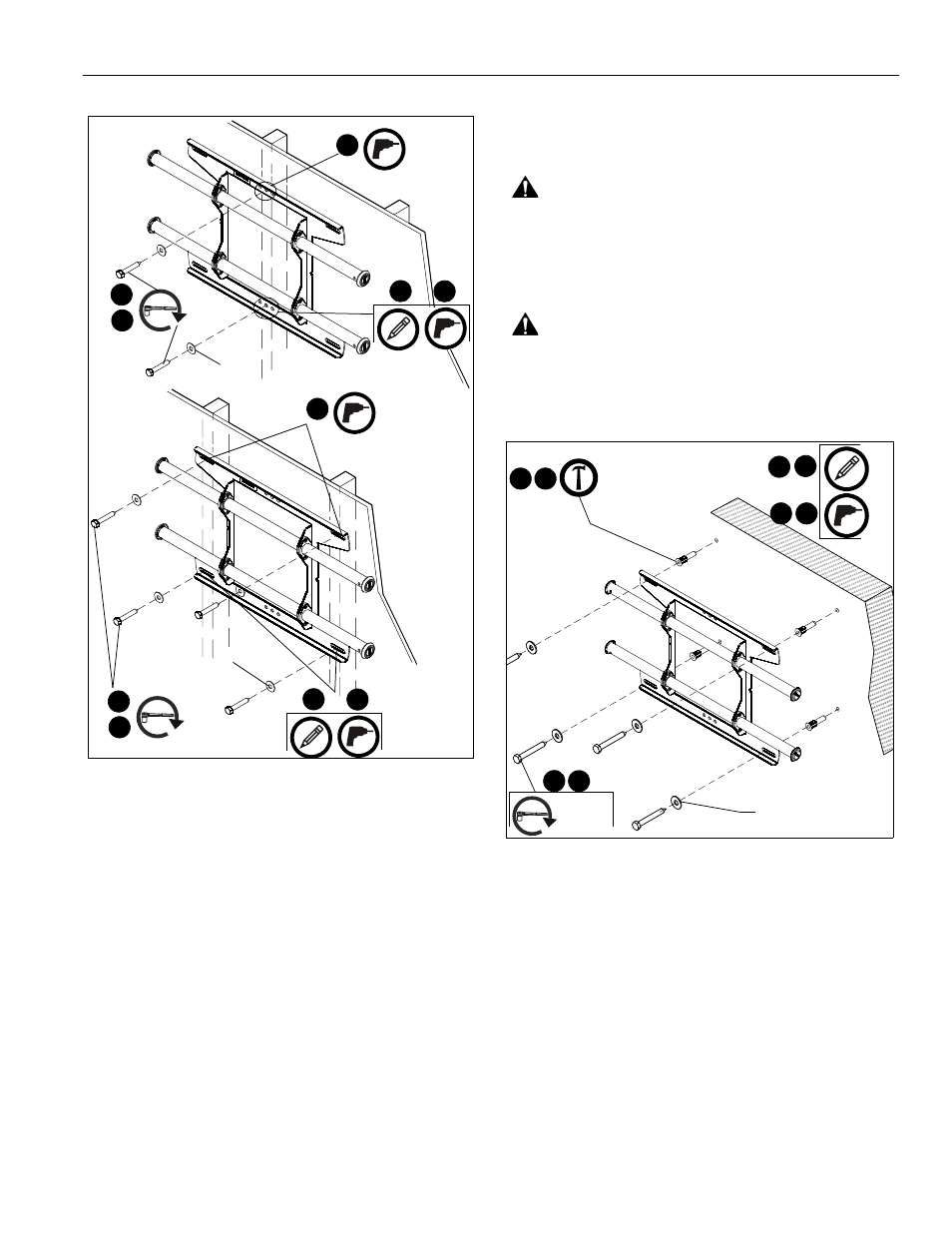

Figure 3
6. Drill one 7/32” (5.5mm) pilot hole in each stud.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) [one lag bolt and washer for single stud
installation] to attach top of mount to wall. (See Figure 3)
8. Mark the attachment points for the lower mounting slots,
making sure the attachment points are located on the studs.
(See Figure 3)
9. Drill 7/32” (5.5mm) pilot holes at markings for lower
mounting holes. (See Figure 3)
10. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) [one lag bolt and washer for single stud
installation] to attach the mount to the wall through the lower
mounting holes. (See Figure 3)
11. Slide rails to approximate center of screen location.
Installing to a Concrete Wall
1. Determine the center of the TV screen, and where it should
be located on the wall.
2. Line up the notches on mount with center of screen marking
to determine vertical center. (See Figure 1)
3. Measure up 6" (152.4mm) from the center point to mark
location of the upper mounting slots. (See Figure 1)
4. Using a level, mark the wall through both upper mounting
slots. (See Figure 4)
WARNING: ELECTRICAL SHOCK HAZARD! CUTTING
OR DRILLING INTO ELECTRICAL CORDS OR CABLES
CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!
ALWAYS make certain area behind mounting surface is free
of electrical wires and cables before drilling or installing
fasteners.
WARNING: EXPLOSION AND FIRE HAZARD! CUTTING
OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH
OR SERIOUS PERSONAL INJURY! ALWAYS make certain
area behind mounting surface is free of gas, water, waste, or
any other plumbing before cutting, drilling, or installing
fasteners.
Figure 4
5. Drill one 5/16” (7.9mm) pilot hole at each marking.
6. Install an anchor (QA) into each pilot hole using a hammer.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach top of mount to anchors in wall.
8. Mark the attachment points for the lower mounting slots.
(See Figure 4)
9. Drill one 5/16” (7.9mm) pilot hole at each marking for lower
mounting holes. (See Figure 4)
10. Install an anchor (QA) into each pilot hole using a hammer.
11. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 4)
12. Slide rails to approximate center of screen location.
