MSA/MTA Series
Installation Instructions
10
2.
Hang top hook of interface brackets onto the top bar of the
mount. (See Figure 9)
NOTE:
The screen initially installs into the “kickstand mode” to
allow easy cable access.
3.
Slide screen and bars to desired viewing position.
4.
Route cables between wall and bars.
CAUTION:
PINCH POINTS! Keep fingers, hands and
cables out of pinch point areas.
5.
Pull downward on the pull straps and swing inward toward
wall, latching interface brackets to lower bar and locking
bottom of screen to the mount. (See Figure 9)

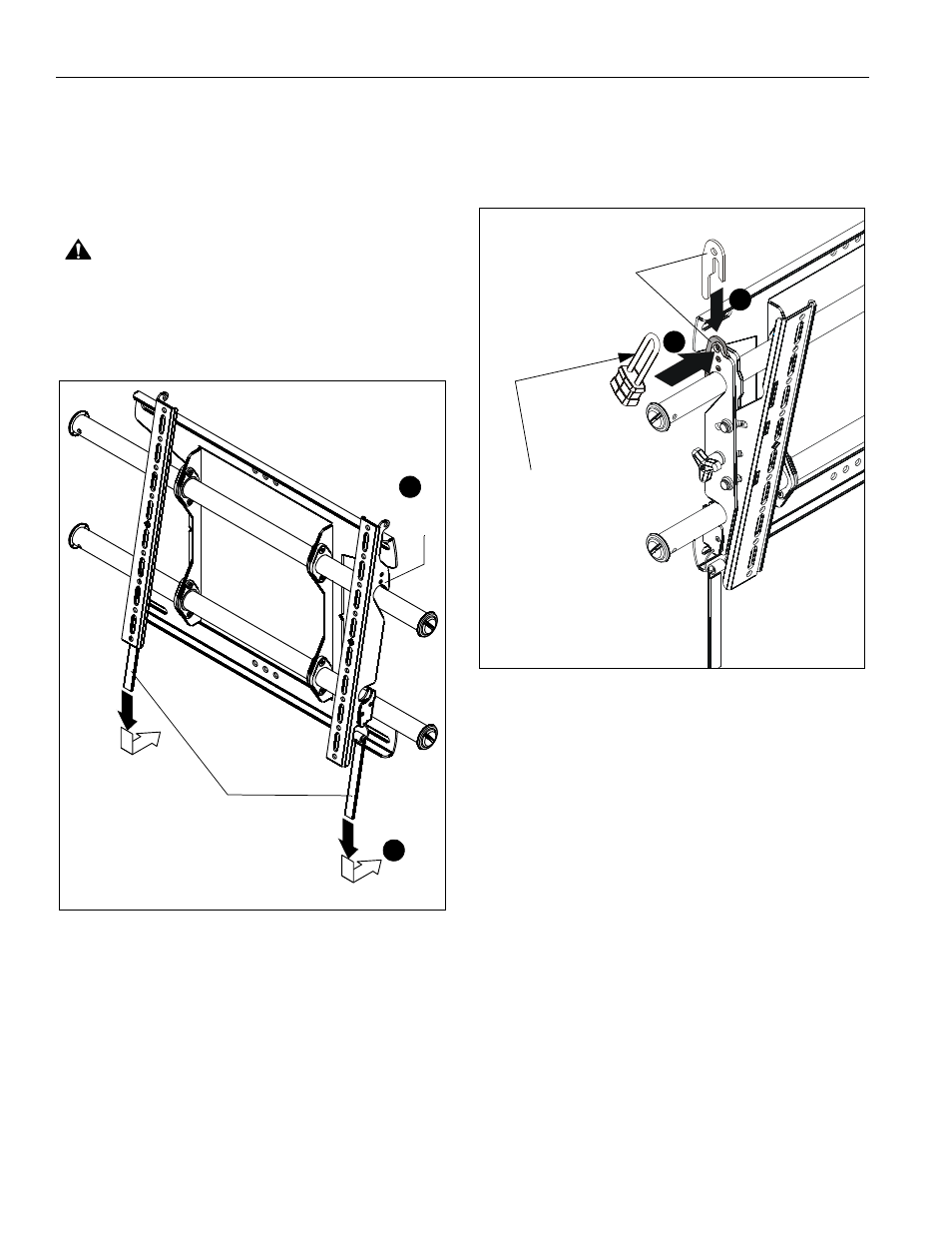

Figure 9
Locking Mount (Optional)
1.
Add optional security bracket (S or T) to the mount. (See
Figure 10)
2.
Add padlock (not included) to complete security.
Figure 10
(Screen not shown for clarity)
2
5
Top
Hook
Pull straps
(S)
1
2
(MTA Shown)
Padlock shackle diameter:
- Min: 1/4” (6.3mm)
- Max: 5/16” (7.9mm)
