Диаграмма установки параметров

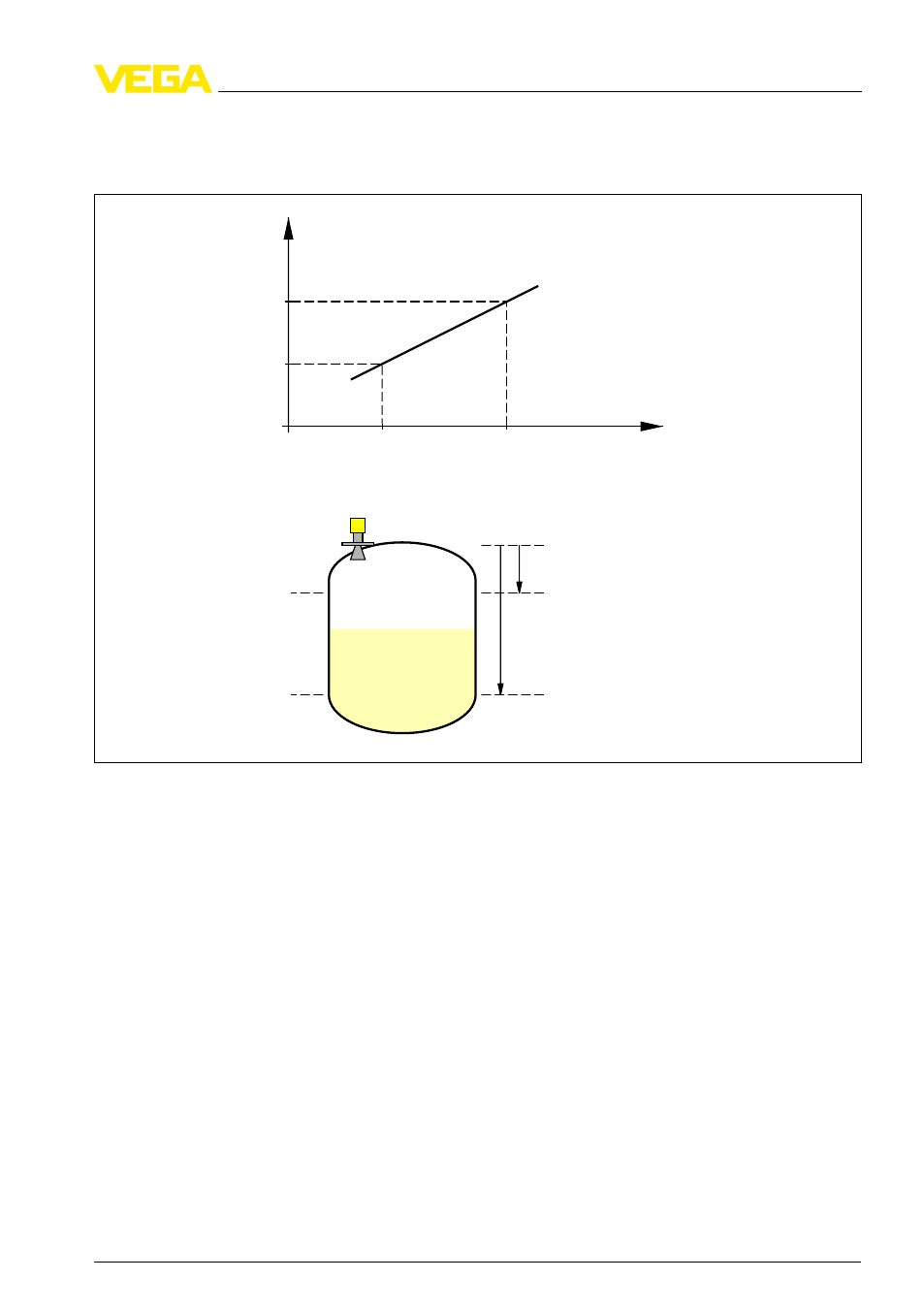

На рисунке ниже представлена функция установки параметров:
Secondary_value_1
Calibration
Lowest Point
Calibration
Highest Point
Sensor_value
cal_level_lo
cal_level_hi
Calibration
Lowest Point
Calibration
Highest Point
Sensor reference plane
cal_level_lo [%]
cal_level_hi [%]
Рис. 32: Установка VEGASON 65
Список параметров для версии устройства 3.0
В данном списке представлены наиболее важные параметры и их значение:
l
primary_value
-
T his is the process value after adjustment and Linearization with the status of the transducer
block
l
primary_value_unit
-
U nit code of 'Primary_value'
l
secondary_value_1
-
V alue after min./max.-adjustment (level + level offset). Selected as input to AIFB by setting
'C hannel' = 2. Unit derives from 'Secondary_value_1_unit'
l
secondary_value_1_unit
-
U nit code of 'Secondary_value_1'
l
secondary_value_2
-
S ensor value + sensor offset. Selected as input to AIFB by setting 'Channel' = 3. Unit derives
from 'Secondary_value_2_unit'
VEGASON 65 • F oundation Fieldbus 59
