Panasonic NV-RX77EN - Инструкция (Страница 78)

(-»28)
1 *mi$[ITEM](ll@)ia,ilii[D.ZOOM]
2 ®[SET](i^:i:)sa,iifip^0Digcii*^^
i m ( M ^ m 4 2 i ^ ^ M ^ m 2 5 o i s ) o
3 i$[MENu](^m)ifi, stu^miisio
4 ami^iD.MODE^iia, lii^saiSifiD
[ ] iH/K!®^iSo
• t'aiiI[D.ZOOMlig^„
raiS)T)t¥?B*, lUSft 22 iSin 250 iSP b Iit)T»f4
S M o
• «*iSifS;^«6<]„aij)[w]w£[T|ft[i!]fflae[w-Ti
®[D.M0DE^ Iffl, -fi®iftil_h0^[^]inl0]ig^©IB№ .«
SiJi (B.W [ D.ZOOM ] iP [,® ] ig^-fetBit^Sit) „
ENGLISH

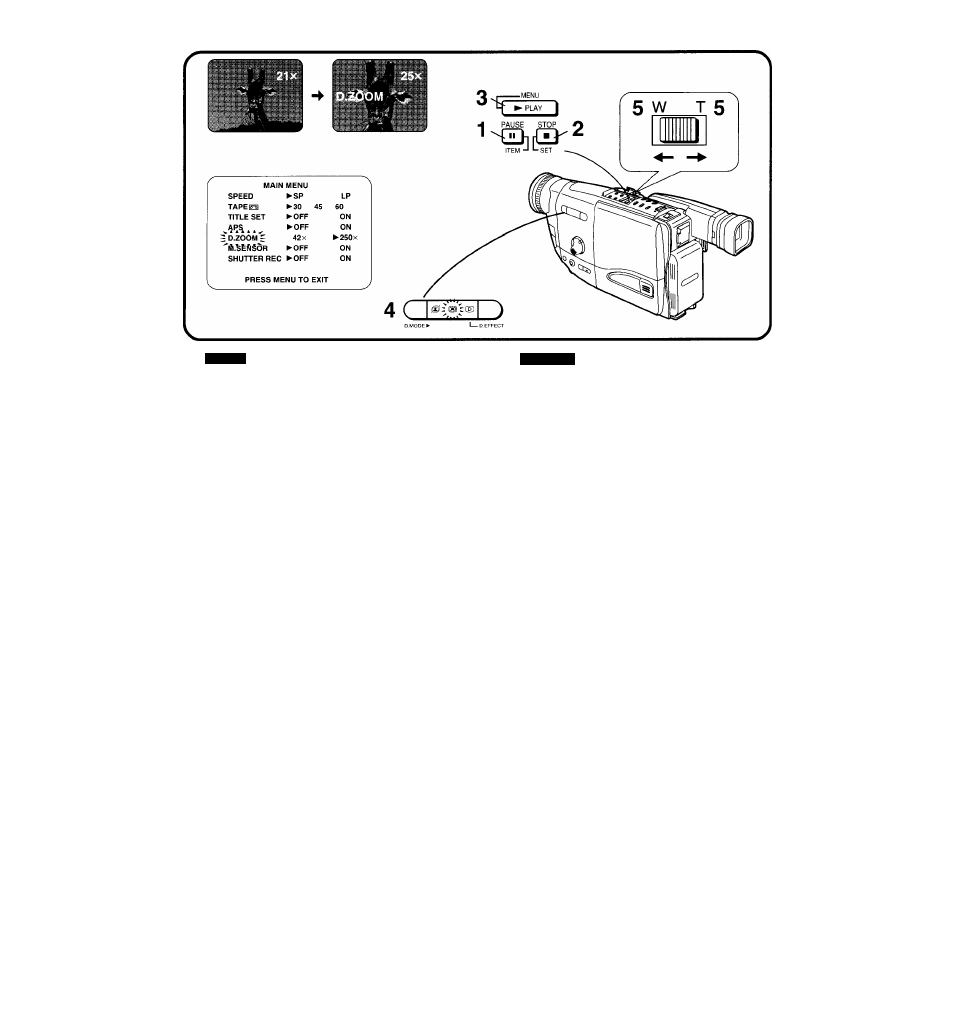

Using the Digital Zoom
Function
After displaying the Main Menu [MAIN MENU]...
(-> 28)
Press the [ITEM] Button repeatedly to
select [D.ZOOM].
Press the [SET] Button to select the
desired digital zoom range (up to 42x
or up to 250X).
Press the [MENU] Button to exit the
Menu Function.
Press the [D.MODE^] Button
repeatedly until the [
] Indication
Lamp next to the button lights.
•The [D.ZOOM] Indication appears.
Push the [W • T] Zoom Lever toward [T]
or [W] to zoom in or out as desired.
•With the Digital Zoom Function activated, you can
optically zoom between 1 x (wide-angle) and 21 x
and digitally between 22x and 250x.The
changeover between optical and digital zooming is
automatic.
•The zooming speed is variable. The farther you
push the [W • T] Lever toward [W] or [T], the faster
the zooming speed becomes.
•When using the Digital Zoom Function, the picture
quality is somewhat reduced.
1
2
3
4
■ Cancelling the Digital Zoom Function
Press the [D.MODE^] Button so that neither the [^]
nor the [
] Indication Lamp next to the button is lit any
more (and neither the [D.ZOOM] nor the [ gi] Indication
is displayed any more).
82
