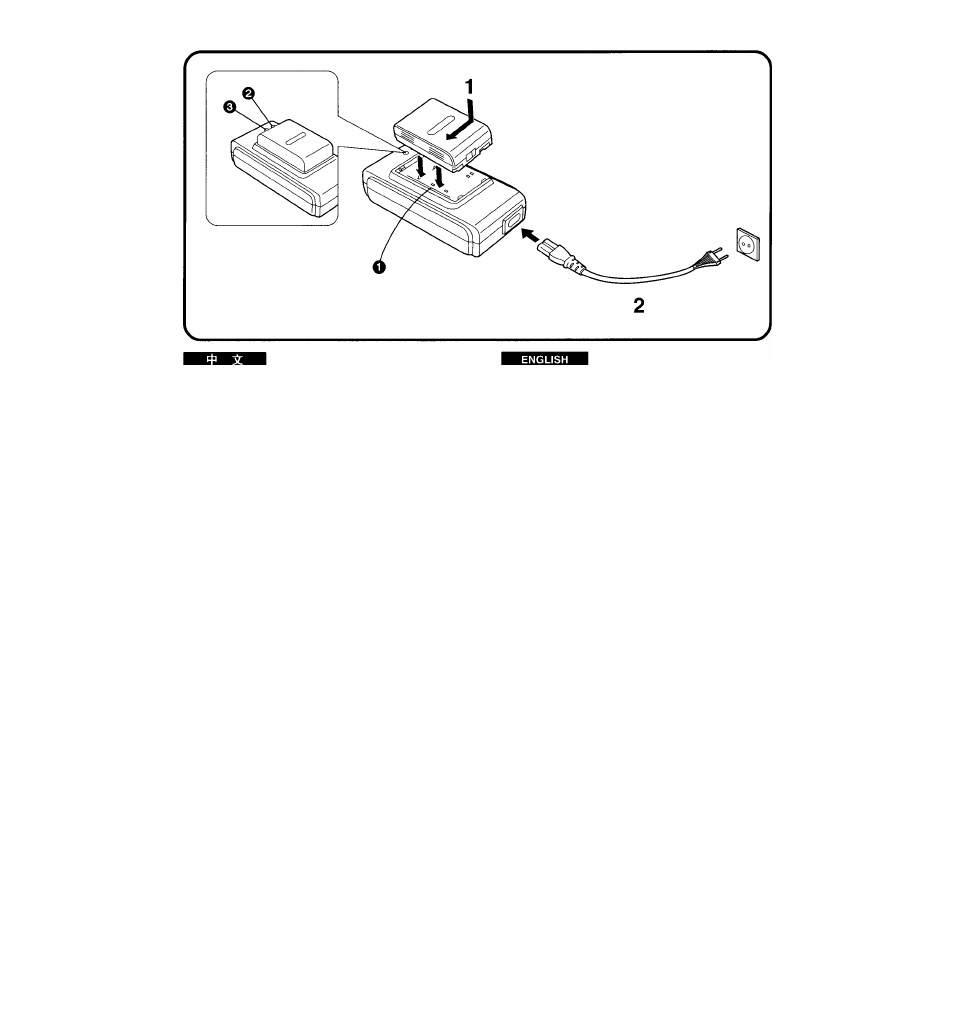

Charging the Battery
1
Attach the Battery.
•Align the Battery with line O P^sh it in the
direction of the arrow while holding it down.
2
Securely connect the AC Mains Cable
to the AC Adaptor and an AC Mains
Socket.
•The Power Lamp Q lights and then the Charging
Lamp 0 lights, too.
■ Charging Lamp
Lit:
During charging
Not lit:
Charging has finished. For an optimum
charge, continue charging for 2 hours
after the lamp goes out.
■ Removing the Battery
Slide it in the opposite direction of that indicated in step
1 above.
•Charge the Battery at a room temperature
between 10°C and 35°C.
•When the AC Adaptor is used to supply the
Movie Camera with power, it cannot charge the
Battery.
• Do not charge the Battery again when it is
already fully charged.
• During recording or charging, the Battery
becomes warm. However, this is normal.
20
