=mmM
mmmum5£>yiE$*i$ifOo
O 5£3lt««8S(Wi#)
• (->20)
O
«7ife(m#)
(-»20)
0
(iM»w#)
(iM»
Ptt#)
1 MiJSISi A8lil!liI®Mfiiilf^«±0D [ DC
IN]if?Lo
OUTJifiLo
3
• ftji icitiiists*# i
wiAmmmmmM'E
(
se
;* i oo
-240V, 50/60HZ),
The 3 Types of Power Supplies
To try out the Movie Camera at home, we recommend
that you use the AC Adaptor Q.
0AC Adaptor (supplied)
•To use the Movie Camera indoors.
•To charge the Battery. 20)
0
Battery (supplied)
•To use the Movie Camera outdoors, and also indoors
when there is no AC mains socket nearby. (-> 20)
© Car Battery Cord (optional) or Car Battery
Charger (optional)
•To use the Movie Camera in a car.
1
2

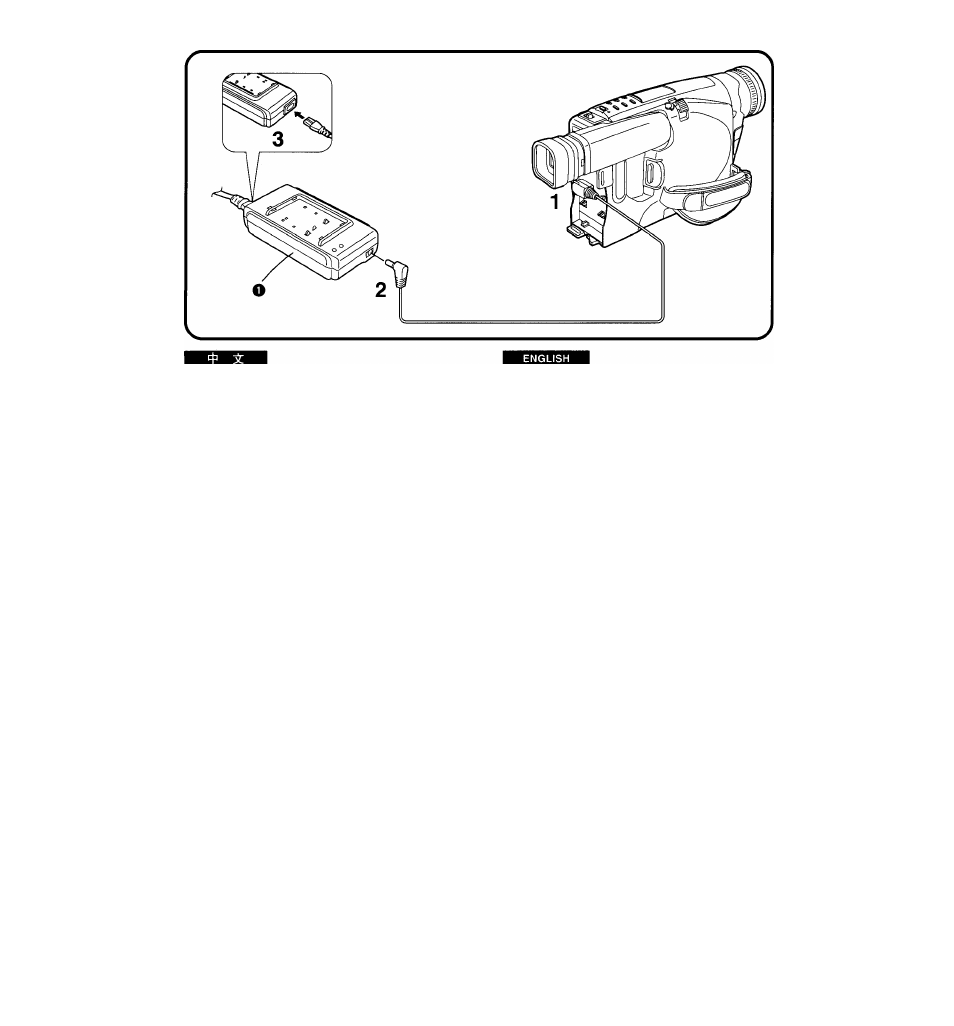

Using the AC Adaptor as Power
Supply Unit
Connect the DC Input Cable to the
[DC IN] Socket on the Movie Camera.
Connect the other end of the cable to
the [DC OUT] Socket on the AC
Adaptor.
3
Connect the AC Mains Cabie to the AC
Adaptor and to an AC mains socket.
• The AC Adaptor features automatic universal voltage
adjustment (AC 100-240 V, 50/60 Hz), therefore, there
is no need for any manual voltage adjustment for use
in other countries.
18
