• (-^22)
(->22)
0
(iiwft#)
(ill*
ptft)
1
[
dc
IN]#?Lo
OUT]if?Lo
-240V, 50/60Hz),
The 3 Types of Power
Supplies
To try out the Movie Camera at home, we recommend
that you use the AC Adaptor Q.
O
AC Adaptor (supplied)
•To use the Movie Camera indoors.
•To charge the Battery. {-¥ 22)
O
Battery (supplied)
•To use the Movie Camera outdoors, and also indoors
when there is no AC mains socket nearby. (-►
22)
0 Car Battery Cord (optional) or Car Battery
Charger (optional)
•To use the Movie Camera in a car.

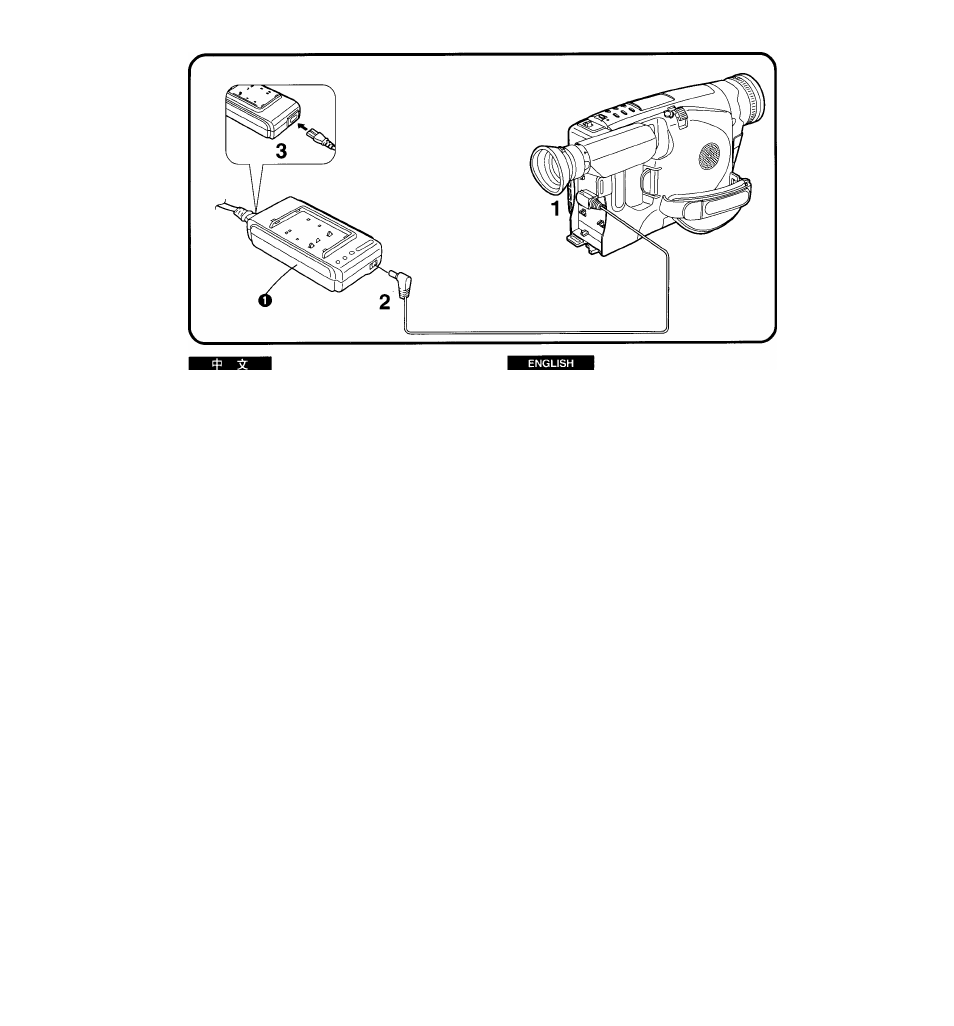

Using the AC Adaptor as Power
Supply Unit
1
Connect the DC Input Cable to the
[DC IN] Socket on the Movie Camera.
2
Connect the other end of the cable to
the [DC OUT] Socket on the AC Adaptor.
3
Connect the AC Mains Cabie to the AC
Adaptor and to an AC mains socket.
• The AC Adaptor features automatic universal voltage
adjustment (AC 100-240 V, 50/60 Hz), therefore, there
is no need for any manual voltage adjustment for use
in other countries.
20
