English - 4

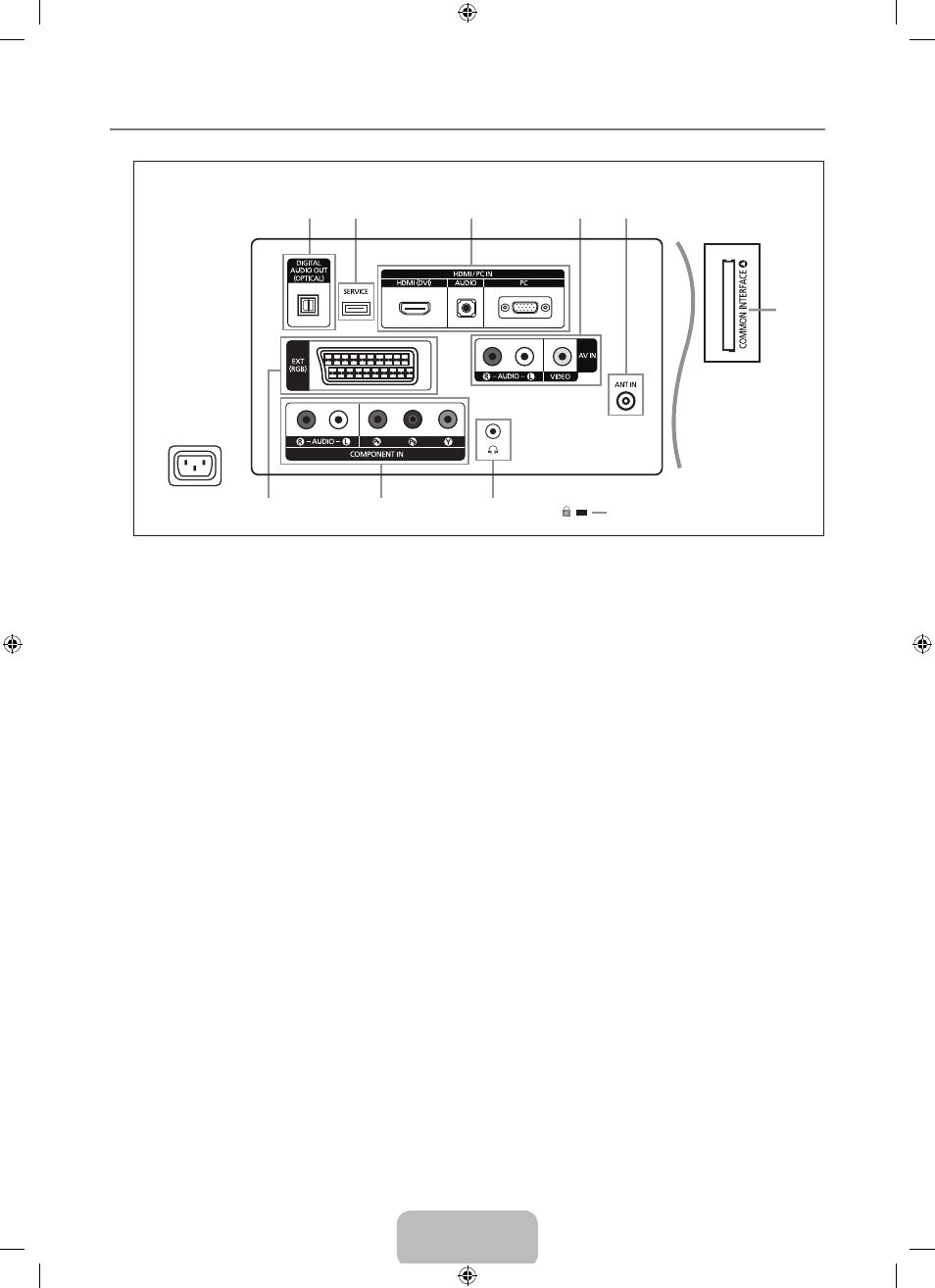

Viewing the Connection Panel
The product colour and shape may vary depending on the model.
Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.
1 DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theatre receiver.
When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio
only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD / Blu-ray player or Cable / Satellite Box
directly to an Amplifier or Home Theatre, not the TV.
2 SERVICE
Connector for software upgrades.
3 HDMI / PC IN [HDMI(DVI), AUDIO, PC]
Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
No additional Audio connection is needed for an HDMI to HDMI connection.
When using an HDMI / DVI cable connection, you must use the HDMI(DVI) jack.
Connect to the audio output jack on your PC.
DVI audio outputs for external devices.
4 AV IN [VIDEO] / [R-AUDIO-L]
Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the
A/V device.
5 ANT IN
Connects to an antenna or cable TV system.
¦
N
N
N
–
N
–
–
–
–
–
–
–
–
–
6
7
1 2 3 4
8 9 0
5
[TV Rear Panel]
Power Input
