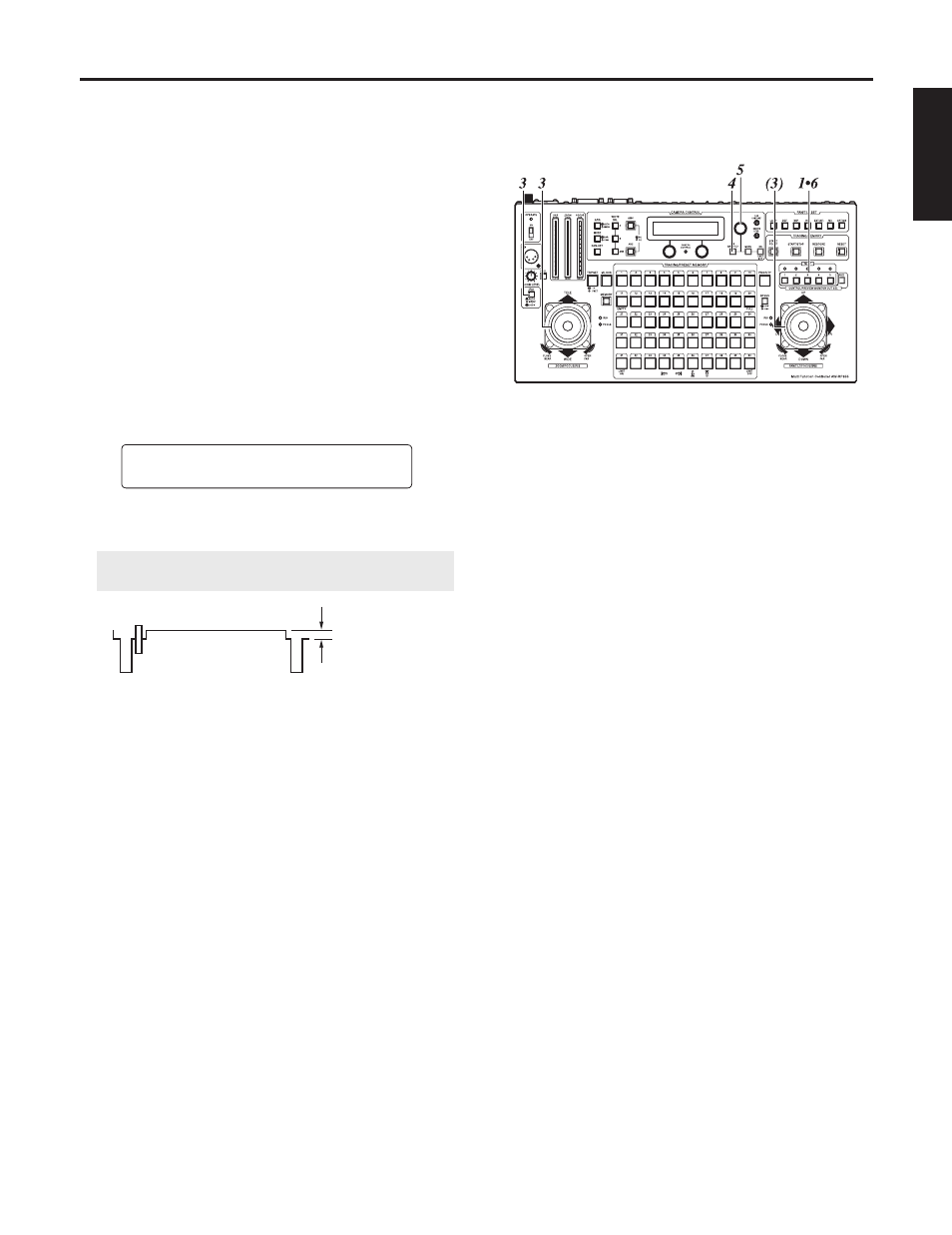

Total pedestal adjustment
When more than one camera is to be used, the black level
(pedestal level) of the pictures shot by each of the cameras
must be brought into alignment.
1. Select the pan/tilt head system using the CONTROL/
PREVIEW MONITOR OUT SEL button.
2. Connect the waveform monitor to the video signal
corresponding to the currently selected pan/tilt head
system (when using the cable compensation unit, the
corresponding Y/VIDEO OUT terminal).
3. Press the IRIS button to establish the MANU mode (the
IRIS button’s lamp now goes off), and use the
FOCUS/IRIS dial to close the lens iris.
4. Press the R/B GAIN/PED button, and set it so that the
following item appears on the LCD panel.
PEDESTAL TOTAL 0
R: 0 B: 0
5. Use the menu setting control (main) to adjust the black
level to 0.035V.
The black level should be adjusted to the same level of
equipments of the system.
6. Select the next pan/tilt head system using the
CONTROL/PREVIEW MONITOR OUT SEL button,
and continue adjusting the black level for each system
concerned.
Operation
0.035V
