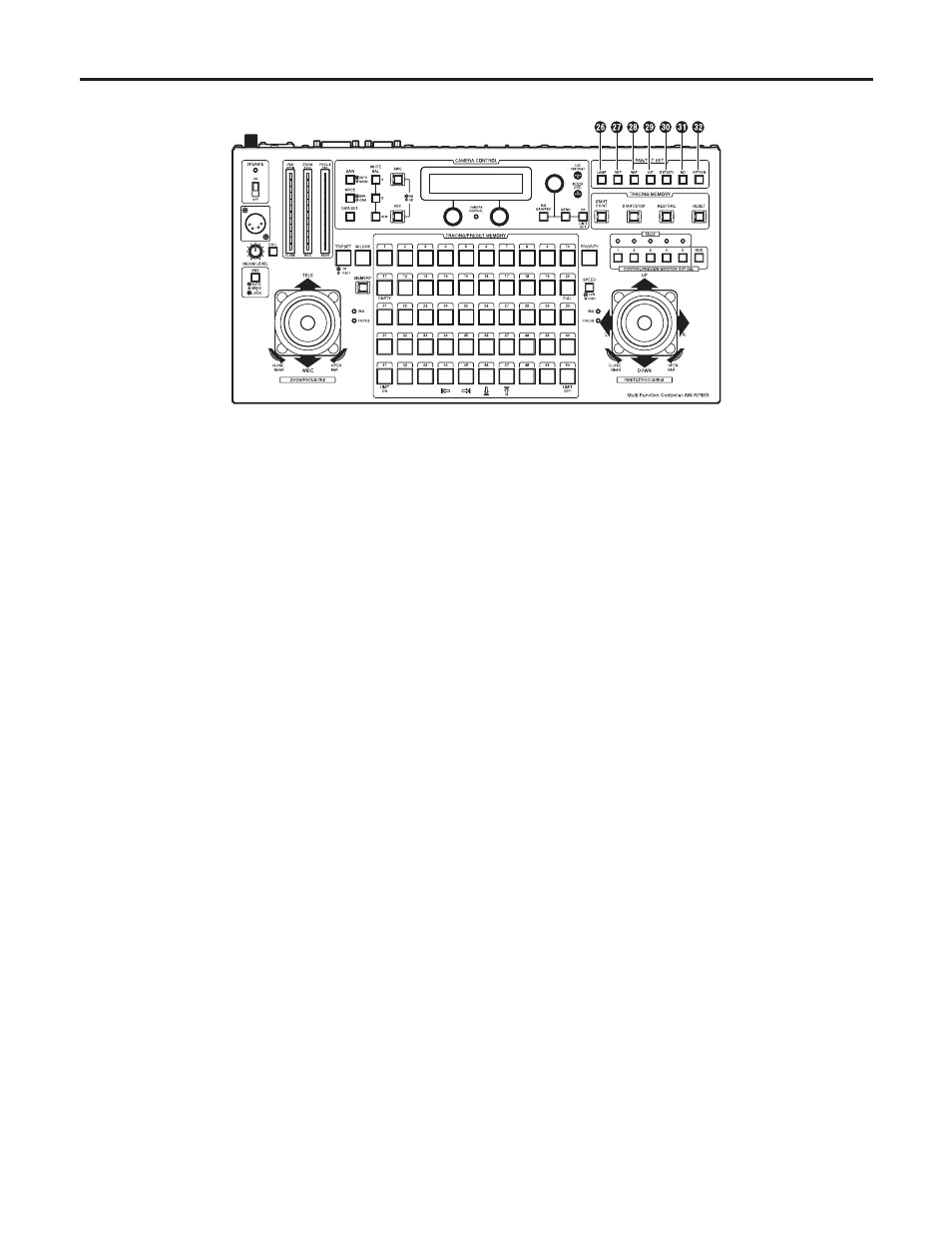

background image

7 (E)

LAMP button

This controls the ON and OFF of the halogen lamp
which is connected to the pan/tilt head system currently
selected.
Each time it is pressed, the lamp is turned ON or OFF in
turn.
When the halogen lamp is ON, the button’s lamp comes
on; when it is OFF, the lamp goes off.
It flashes when the halogen lamp has not been
connected or when the lamp has been disconnected or
some other problem has occurred.

DEF button

This sets the defroster function ON or OFF when a
pan/tilt head (AW-PH600/AW-PH650) equipped with a
defroster function is used in the pan/tilt head system
currently selected.
Each time it is pressed, the function is turned ON or OFF
in turn.
When the defroster is ON, the button’s lamp comes on;
when it is OFF, the lamp goes off.

WIP button

This sets the wiper function ON or OFF when a pan/tilt
head (AW-PH600/AW-PH650) equipped with a wiper
function is used in the pan/tilt head system currently
selected.
Each time it is pressed, the function is turned ON or OFF
in turn.
When the wiper is ON, the button’s lamp comes on;
alternatively, when it is OFF, it goes off.

H/F button

This sets the heater/fan function ON or OFF when a
pan/tilt head (AW-PH600/AW-PH650) equipped with a
heater/fan function is used in the pan/tilt head system
currently selected.
Each time it is pressed, the function is turned ON or OFF
in turn.
When the heater/fan is ON, the button’s lamp comes on;
when it is OFF, the heater/fan goes off.

EXT (AF) button

If a lens with an extender function is used in the selected
pan/tilt head system, the extender function is set from ON
to OFF or vice versa each time the EXT (AF) button is
pressed.
If a lens (AW-LZ16AF7G) with an AF function is used in
the selected pan/tilt head system, the AF function of the
lens is set from ON to OFF or vice versa each time the
EXT (AF) button is pressed.
In either case, the button lamp is lit at the ON setting, and
it is extinguished at the OFF setting.
 This button can be used to turn the AF function ON or

OFF only when the AW-PH350/AW-PH360/AW-PH650
pan/tilt head is connected.
When the pan/tilt head is not used and only the camera
is connected, select ON or OFF using the menu item.

ND button

This sets the ND filter function ON or OFF when a lens
equipped with an ND filter function is used in the pan/tilt
head system currently selected.
Each time it is pressed, the function is turned ON or OFF
in turn.
When the ND filter is ON, the button’s lamp comes on;
when it is OFF, the lamp goes off.
The ND filter function on the AW-E655 cannot be
switched. Use the camera setting menu to turn it ON or
OFF.

OPTION button

This controls the short- or open-circuiting of the OPTION
SW CONTROL OUT connector of the AC adapter
(AW-PS300A) which is connected to the pan/tilt head
system currently selected.
Each time it is pressed, short-circuiting or open-circuiting
is selected in turn.
When the connector is short-circuited, the button’s lamp
comes on; when it is open-circuited, the lamp goes off.

Parts and their functions
