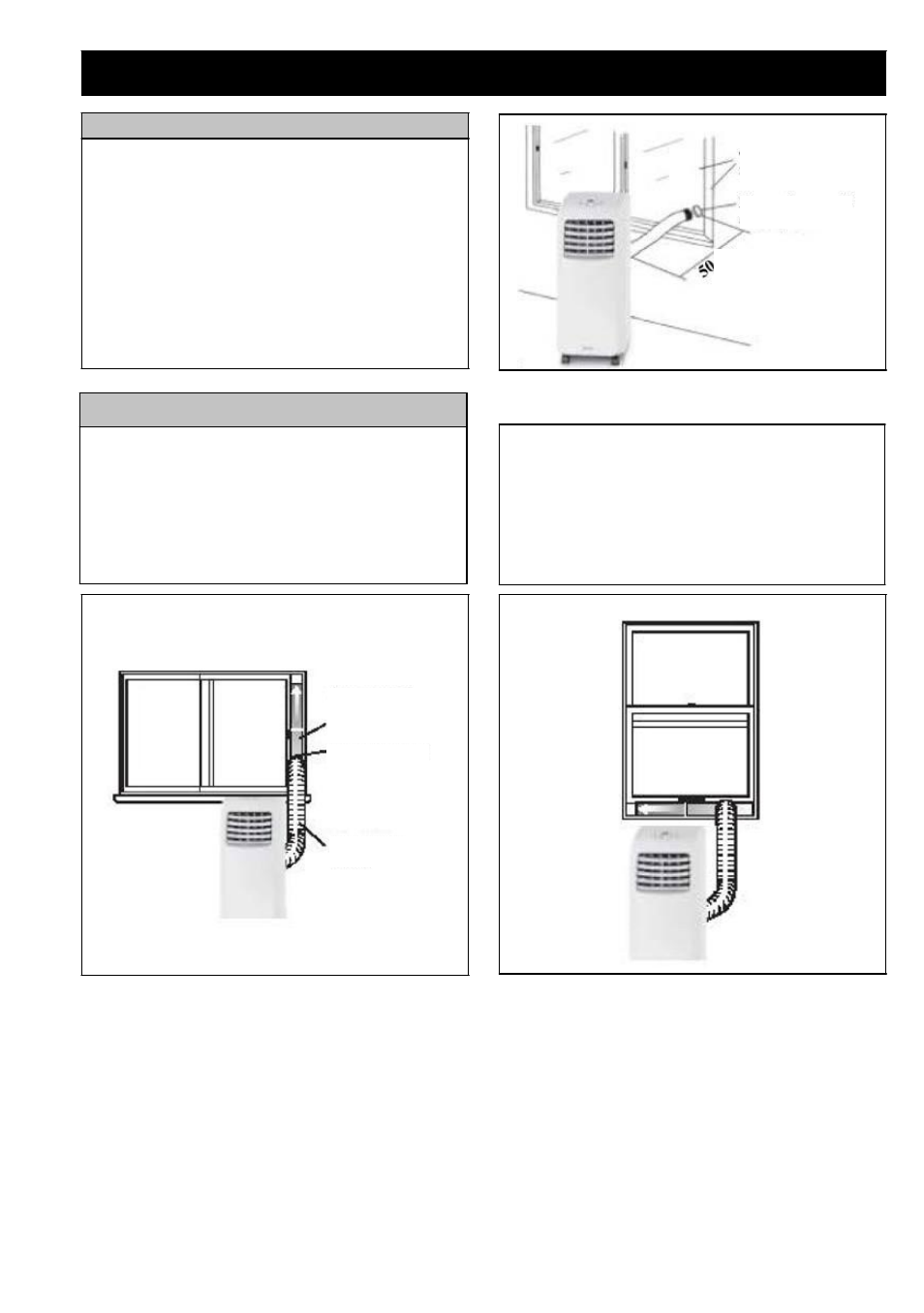

ASSEMBLY
Permanent Location
The round connector (Item 4) may be fitted into a
circular opening cut into a wall or glass window.
This connector, when not in use, can be left in
position with the opening covered by the cap
provided.
Temporary Location:
Sliding Window (Horizontal/Vertical)
1. Side window open
2. Insert adjustable window kit into opening,
telescope window kit to fit window.
3. Insert screw into closest available hole in edge
of kit to hold the position.
4. Screw window kit adaptor onto flexible
duct.
5. Screw air conditioner adaptor onto other end of
flexible duct 0L Insert window kit adaptor into
window kit and clip Into place.
6. Slide air conditioner adaptor down into rails to
secure it to air conditioner exhaust.
7. Partially close window to secure window kit.
8. Your appliance is ready for use.
Solid Wall Of
Window
Round Window
Connector
Vertical sliding window
Sliding Window
Telescope
window
kit
Round Connector
Air Outlet duct
сm
