hm"
1
mmmi%i^m^mn)
-
Siiiim
VIDFrO OUT
AUOfO 0(iT
mmm
VIULOIN
i m W )
AUDIO
IN
( n m )
2
ii
°
3
m
[CAMERA/OFFA/CR]
[VCR] -
• [VCR] O "
4
-
i->66)

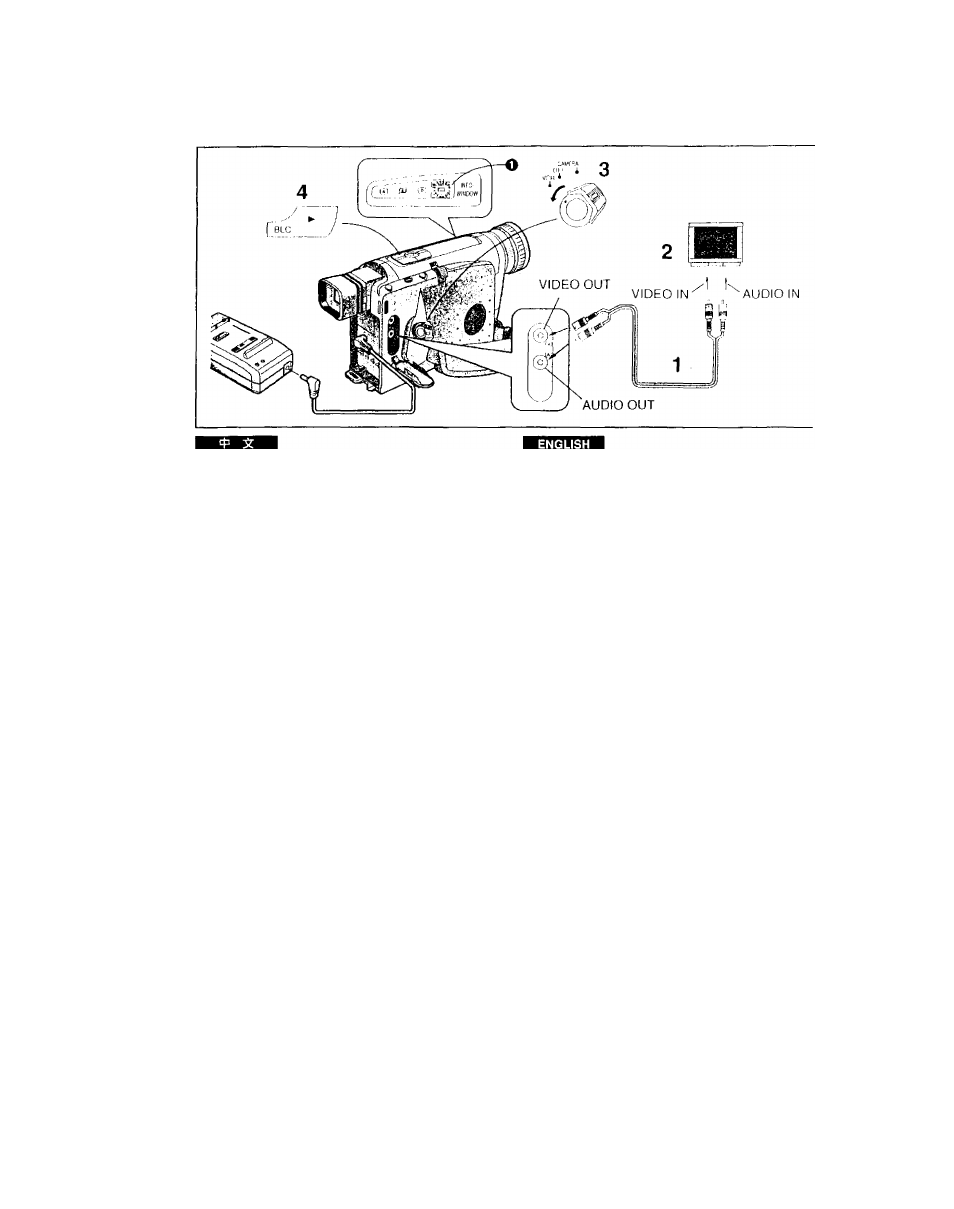

Watching Playback on a TV
By connecting the Movie Camera to a TV, you can watch
playback ot the recorded scenes on the TV screen.
Before connecting, turn off both the Movie Camera and the TV
for safety's sake,
1
Use the AV Cable (supplied) to connect the
Movie Camera writh the TV.
Movie Camera
TV (AV Input Sockets)
VIDEO OUT -------------- * VIDEO IN
AUDIO OUT -------------- > AUDIO IN
2
Select the channel on the TV which
corresponds to the video/audio input sockets
used for connecting.
(Refer to the operating instructions of your TV )
3
Set the [CAMERA/OFF/VCR] Switch to [VCR],
• The [VCR] Lamp Q lights.
4
start playback on the Movie Camera. (->66)
6/t
