[T| How to Charge the Battery Pack
The following explanations show you how to use the
supplied AC Adaptor for charging the Battery Pack.
The Battery Pack is a nickel-cadmium storage battery.
As it self-discharges relatively easily, it is recommended
to charge the Battery Pack not more than one day before
using it.
The Battery Pack's ability to generate electric energy is
based on a chemical reaction. Because this reaction can
take place better at high temperature, the maximum
recording time may be considerably shorter than listed
{-* 16) when recording at low temperature.
Notes:
1. When charging the Battery Pack, disconnect the DC
Input Cable (-> 62) from the AC Adaptor.
2. Charge the Battery Pack at a room temperature
between 10°C and 35°C.
3. If the operation time of the Battery Pack after
charging is too short for practical use, the Battery
Pack has reached the end of its service life. Replace
it with a new one.
4. Do not charge the Battery Pack again when it is
already fully charged.
5. During use on the Movie Camera and during
charging, the Battery Pack may become warm. This is
normal.

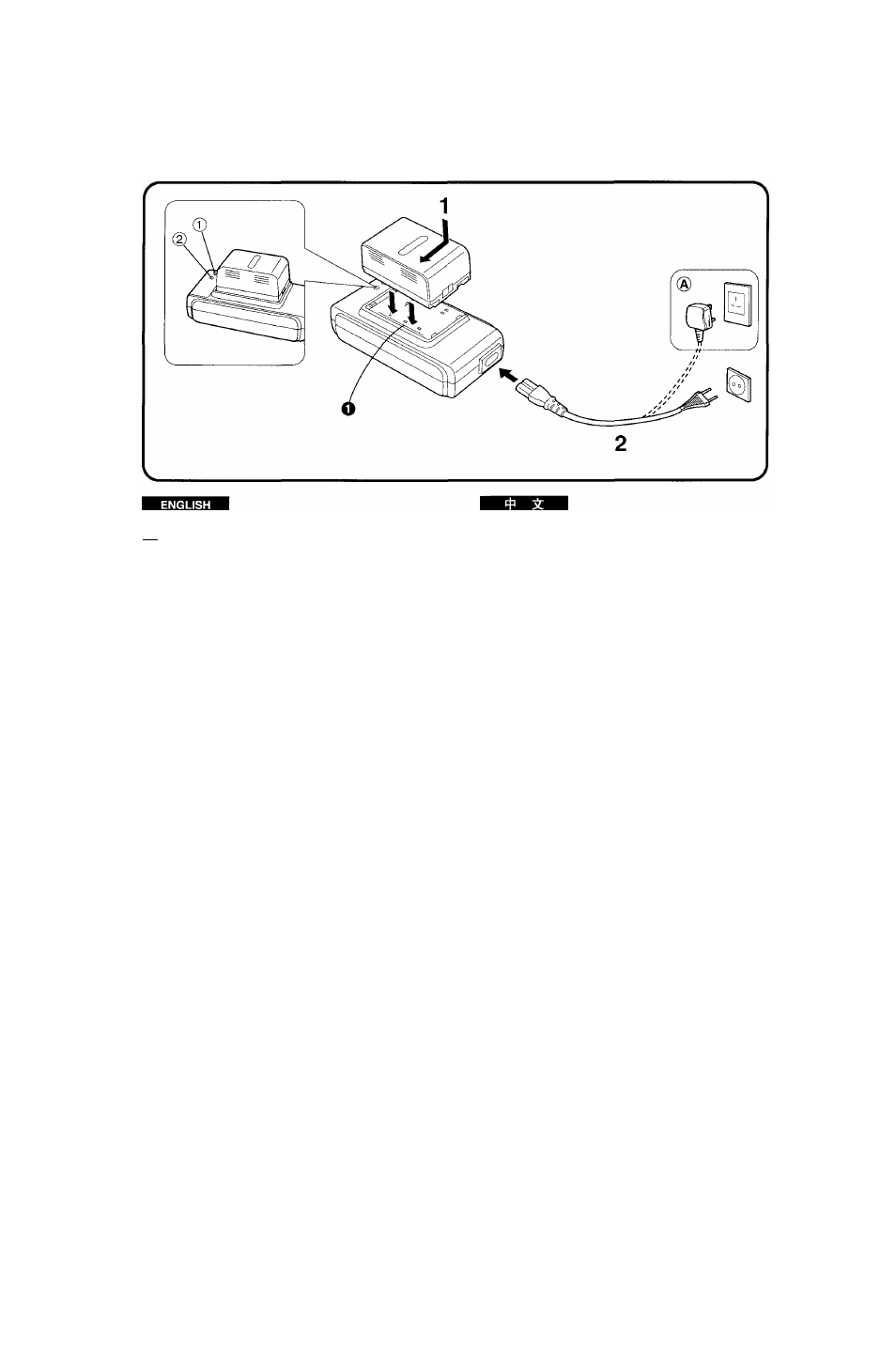

1
Attach the Battery Pack.
•Align the Battery Pack with line O 3rid push it in
the direction of the arrow while holding it down.
(To remove the Battery Pack, slide it in the
opposite direction.)
2
Securely connect the AC Mains Cable to
the AC Adaptor and an AC mains socket.
Hong Kong Only.
• The Power Lamp 0 lights and then the Charging
Indication Lamp (2) lights, too.
■ Charging Indication Lamp
Lit:
During charging
Not lit: Charging has finished. For optimum charging,
continue charging for 2 hours after the lamp
goes out.
