[s] Viewing on the LCD Monitor
Improved LCD backlight transmission makes the picture
extra bright. In addition, special coating of the LCD’s
surface diffuses the light from outside to minimize light
reflection, so the picture has vivid colours and is easy to
see.

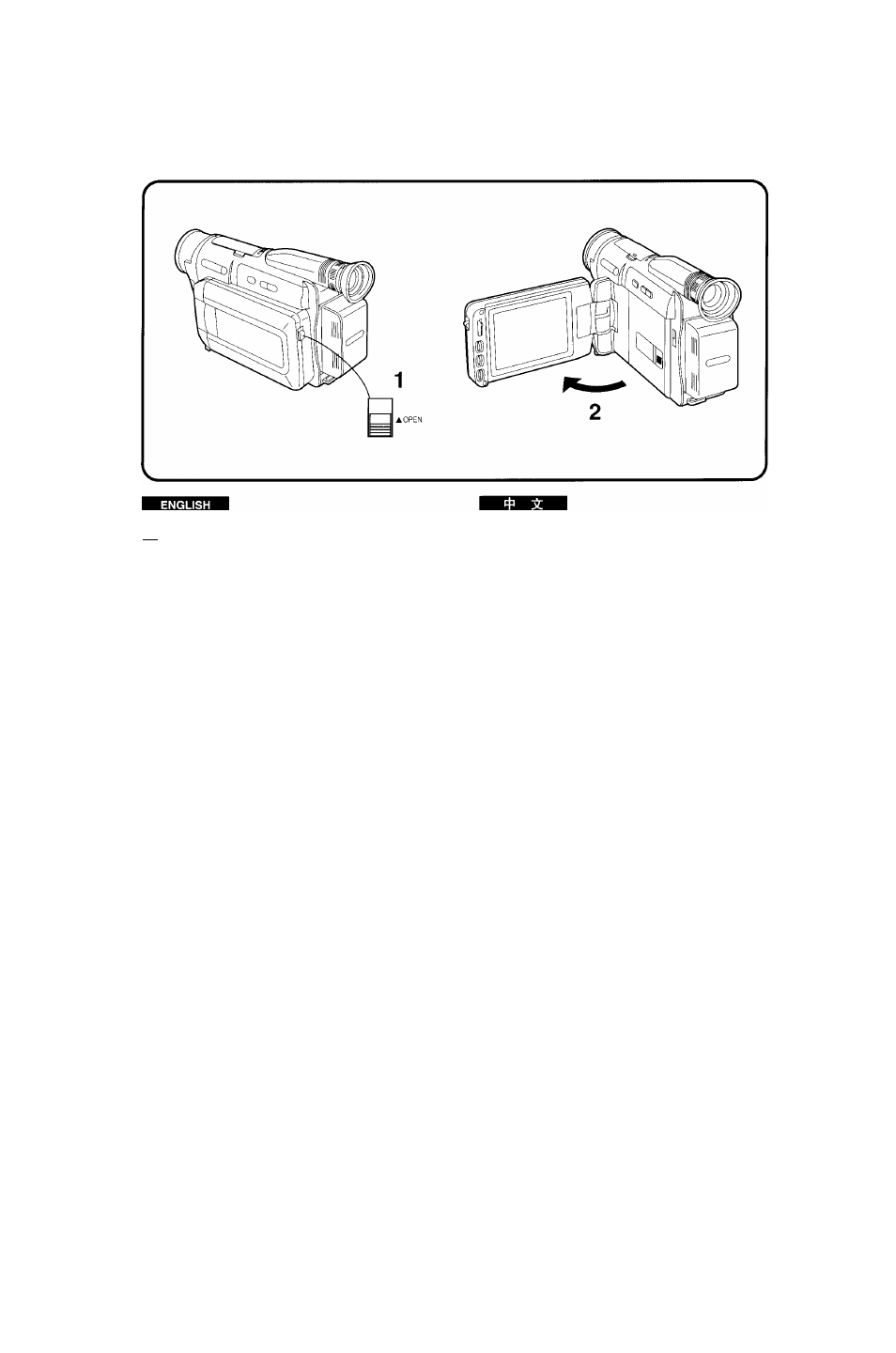

■ Opening the LCD Monitor
1
Slide the LCD [OPEN] Lever upwards.
•The LCD Monitor pops open.
2
Open the LCD Monitor to the click stop
(approx. 90°).
■ Closing the LCD Monitor
Push the LCD Monitor to close it until it locks with a click.
Notes:
• Return the LCD Monitor to its vertical position before
closing it. Also, make sure that the Cassette
Compartment is securely closed before closing the
LCD Monitor.
•When the LCD Monitor is open, no picture appears in
the Viewfinder.
■ Cautions for the LCD Monitor
• Exfremely high precision technology is employed in
producing the LCD Monitor. The result is more than
99.99% effective pixels with a mere 0.01% of fhe pixels
inactive or always lit.
• When the Movie Camera is very cold when turning it
on, the LCD Monitor is darker than normally. However,
as it reaches normal temperature, it regains its normal
brightness.
•To remove fingerprints, wipe it with the supplied
Cleaning Tissue or a similar soft cloth.
• Do not expose the LCD Monitor to direct sunlight.
When sunlight falls onto the LCD Monitor, it may be
difficult to view the picture.
• Do not apply any pressure to the surface of the LCD
Monitor or subject it to strong shocks.
• Before transporting the Movie Camera, securely close
the LCD Monitor.
8
