Installation/Connection Installation/Connection

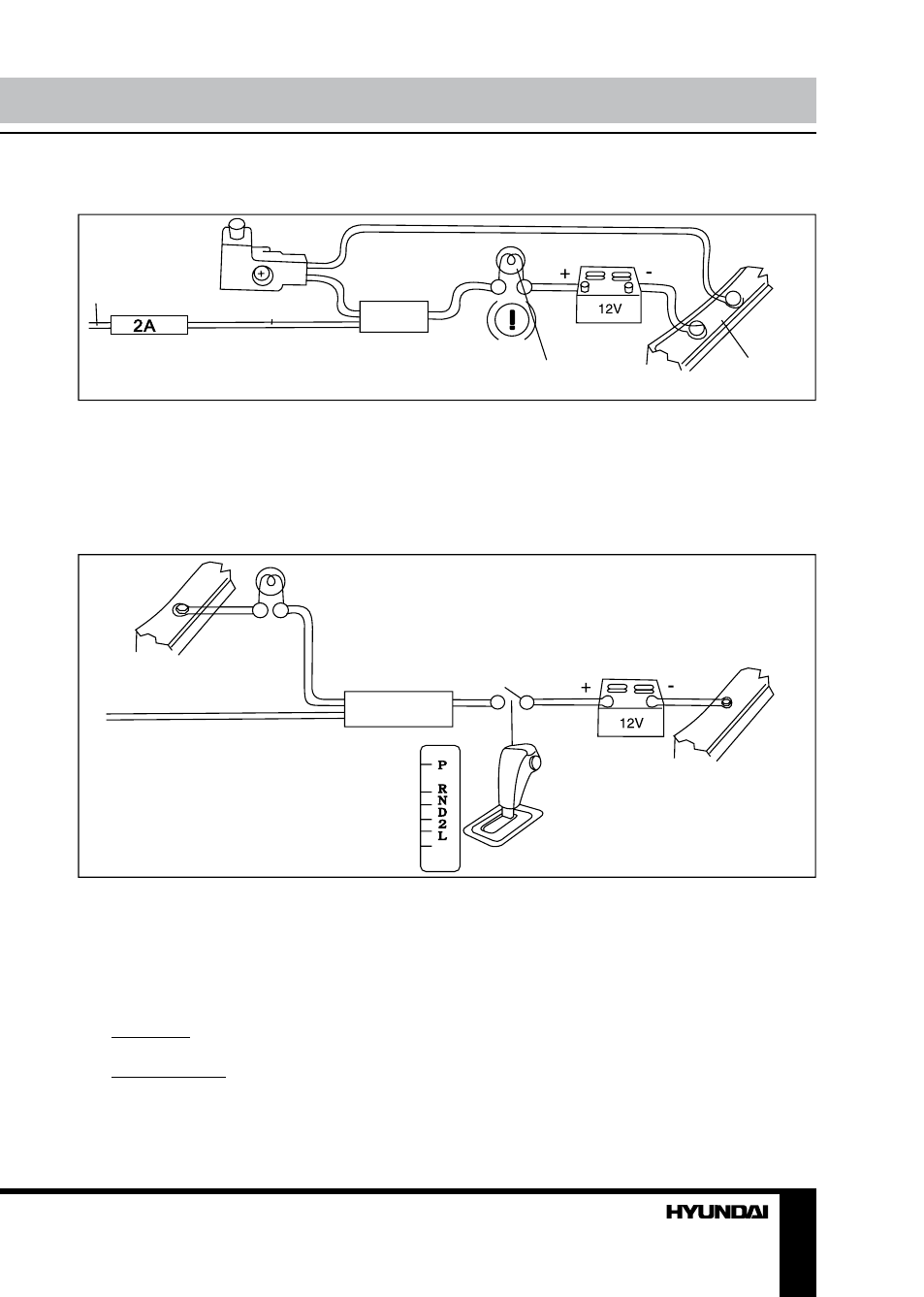

Parking wire connection
Parking brake lead
Brake light Car frame
Battery
Brown Wire
If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be
controlled by driving status, system setup and input video sources. When the car is moving ahead,
if the video disc is played, the screen shows “Disabled while driving”, and blank screen. The above
warning screen will prevent the driver from watching images.
Reverse driving cable connection
Car frame
Car frame
Rear view video camera lead
Reverse driving light
Gearbox
Orange wire
Battery
If the rear view video camera is connected, the unit automatically switches to CAMERA source
during reverse driving. The unit returns to the original work mode after the reverse driving is done.
Lamp in wire (option)
The lamp in wire is intended for performing adjustable and non-adjustable brightness of button
backlight of the unit front panel.
• Adjustable: the wire should be connected to the regulator of brightness of the car dashboard.
Front panel backilght is possible only when the car dashboard lighting is switched on.
• Non-adjustable: connected together with the yellow wire (battery +12 V); the front panel
backlight is active always when the front panel is attached to the unit.
