Installation/Connection
Connection

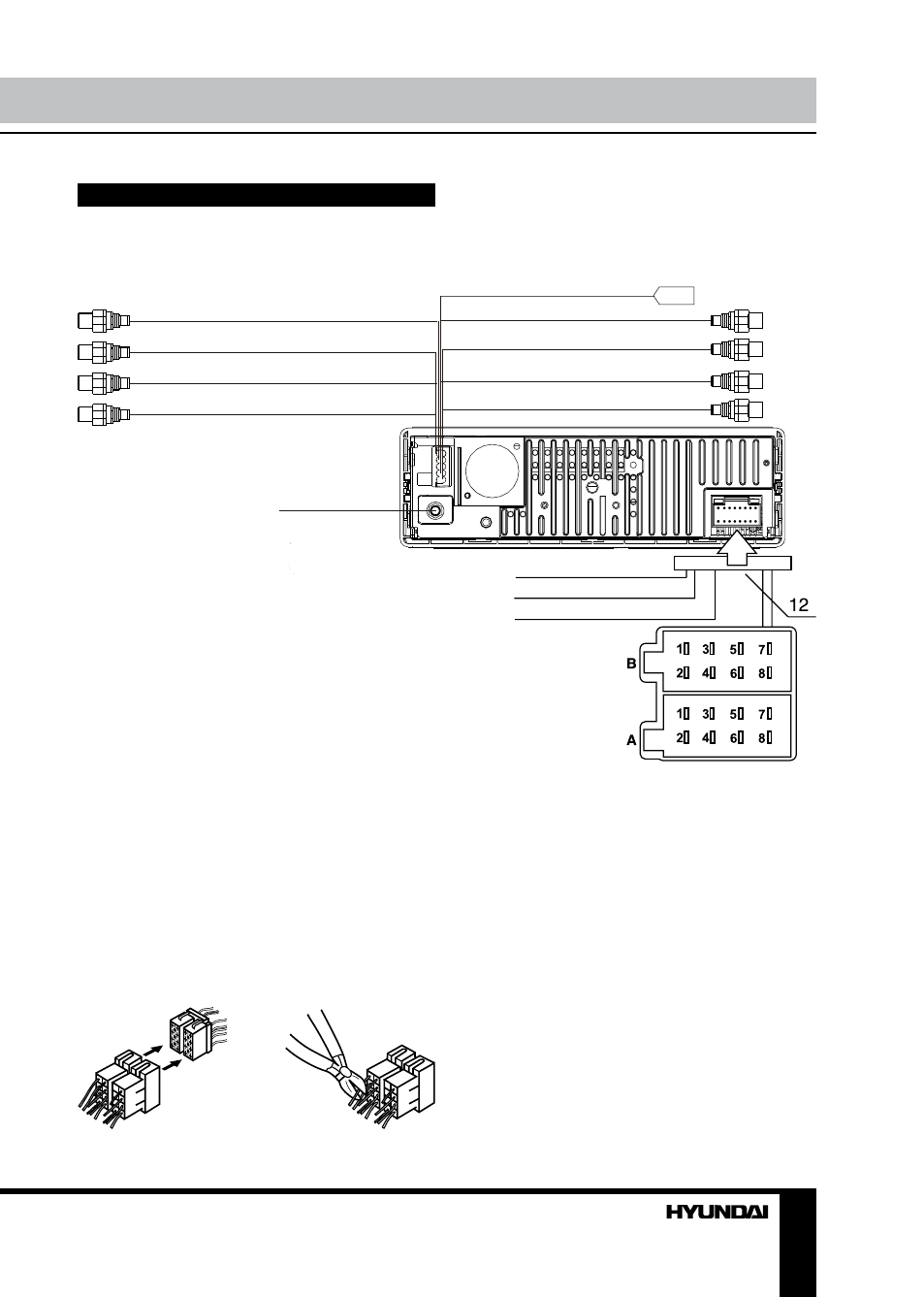

Connection diagram
Subwoofer (brown line/brown head)
Radio antenna (black)
Video out 2 (light-grey line/yellow head)
Video out 1 (light-grey line/yellow head)
Rear RCA (light-grey line/red and white head)
Front RCA (dark-grey line/red and white head)
TV antenna socket
ISO connector
Reverse (orange)
Parking (brown)
Lamp in (pink) (optional)
Rear camera input (brown line/yellow head)
AUX video input (black line/yellow head)
AUX audio input (black line/red and white head)
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
1. 2.
