Pag't Лт ¡mporianf tnstaUation and preparation at your oven
I»
Before your appliance is connecfed fo the
mains electricity supply, check to ensure that
the voltage and the frequency shown in the
data plate corresponds with your power supply.
The data plate is situated back cover of the
oven, or it is situated in the front of the storage
compartment and can be seen by opening the
storage compartment cover or pulling the drawer.
Warning!
This appliance must be earthed
Our company shall not held responsible for any
damage caused by the utilisation of the oven
without ground socket.
Before
applyirg to Authorized service, have
the electrical wiring of your home ready for
connection.
If the appliances is connected by a plug, that
the plug is easily accessible after installation
(but not above the hob)
«•‘This product must only be installed by a
qualified electrician eg. local electricity company
to a suitable double pole control unit with a
minimum contact clearance of 3 mm in all poles
which should be adjacent to (but not above)
the cooker in accordance with lEE regulation,
Failure to observe this instruction may result in
operational
problems
and
invalidation
of
the
product warranty. If the appliance is connected
by a plug, that the plug is easily accessible
after installation (but not above the hob).
The cable length should be 2 mtmax for ¡sedation
safety.
In models with "small type- terminal block'‘
In mix models a cable supplied with a plug with
your oven (H05 V V-F 3G 1.5 mm2)
If a cable without a plug is provided together
with your oven (H05 V V-F 3G 2,5 mm2 )
Take care to
connect
as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
Green/Yellow cable = E (Earth )
*•“

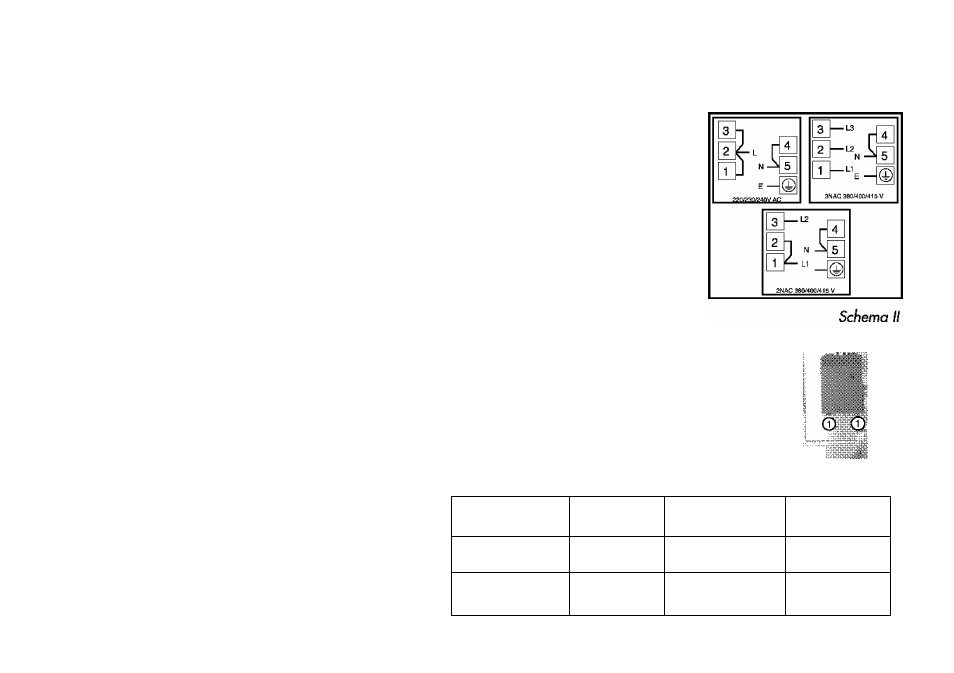

If your oven is supplied without supply cord use
schema-1 to choose supply cord and use schema-
11 for installation of cord.
The cable length should be max 2m long for
isolation safety.
«•‘Open the terminal block cover.
'»‘Connect the supply cable according to wiring diagram on the rear
cover.
Fix the supply cable to main body with integrated screw via cable
tightener.
Assembly the terminal block cover to its place.
Your oven is suitable for single and three phase connection.
«»The mains cable must pass through the cable
cfomp,
'•‘The mains cable should be routed away from the appliance and ...
particular ventilation slots, the vent outlet and should not be obstructed when
Connection Type
Monophase
Three phase
with Neutral
Two
phase
with Neutral
Voltage
220/230/
240 V
380/400/
415 V
380/400/
415 V
Supply cord type
(max 2m long)
3x2,5 mm2
H05 V V-F
5x2,5 mm2
H05 V V-F
4x2,5
mm2
H05 V V-F
