1
[VIDEO OUTj
[AUDIO OUTj
VIDEO IN(t>it)
AUDIO IN(S-#I)
3
4
®[VCR/CAMERAjii, Sif [VCRjiim
• [VCRli§?i:ttO**^=
^RFltif^(VW-RF7E,

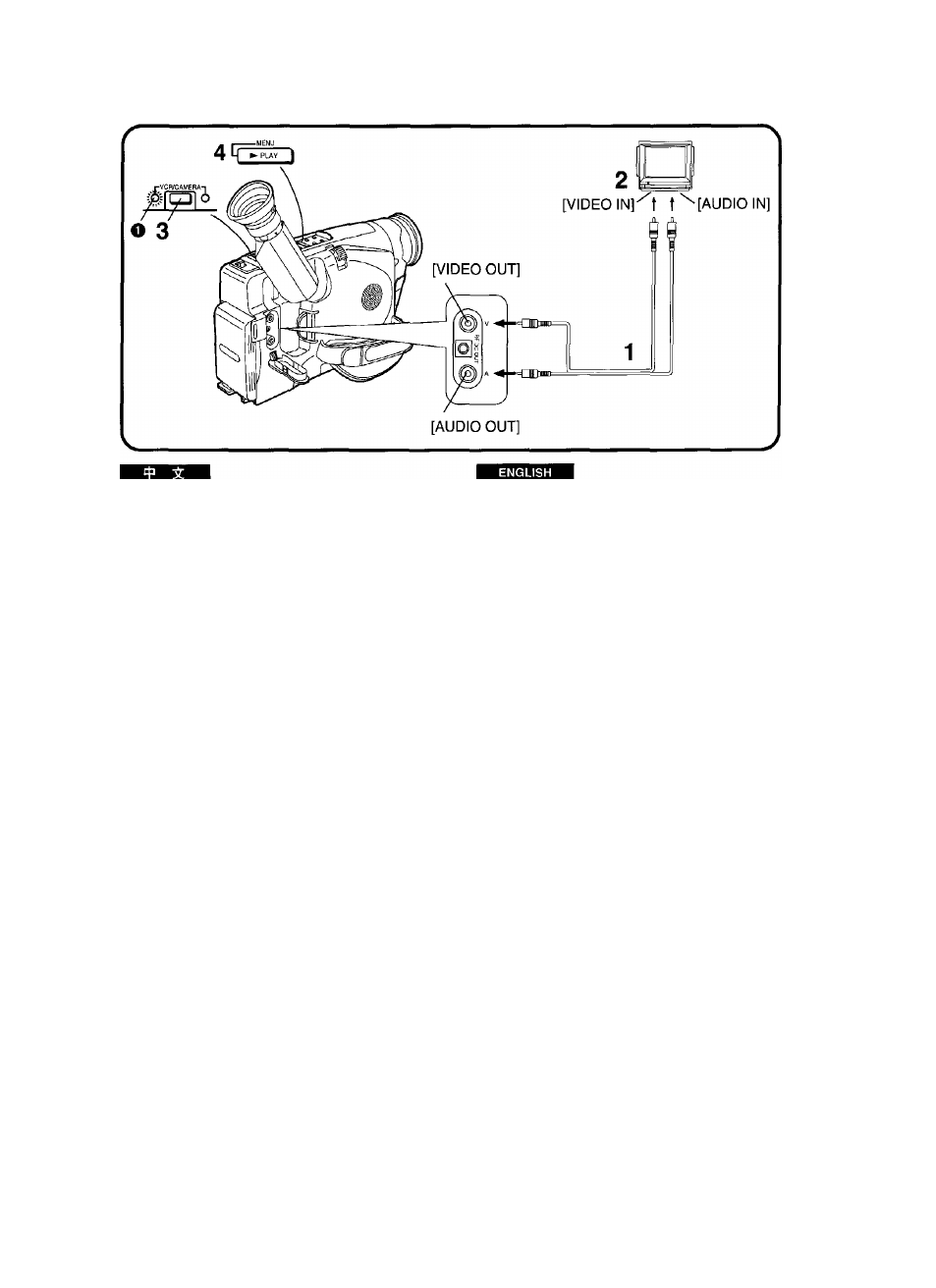

Playing Back on a TV
By connecting the Movie Camera to a TV, you cah
watch playback of the recorded scenes on the TV
screen.
• Before connecting, turn off both the Movie Camera
and the TV for safety's sake.
1
Use the AV Cable (supplied) to connect
the Movie Camera with the TV.
Movie Camera
TV (AV Input Sockets)
[VIDEO OUT] ----------- > VIDEO IN
[AUDIO OUT] — ^ AUDIO IN
2
Select the channel on the TV which
corresponds to the video/audio input
sockets used for connecting.
(Refer to the operating instructions of your TV).
3
Press the [VCR/CAMERA] Button to
select the VCR Mode.
•The [VCR] Lamp 0 lights.
4
start playback on the Movie Camera.
(->62)
If your TV is not equipped with AV Input Sockets, the RF
Adaptor (VW-RF7E; optional) is necessary.
Consult your dealer.
66
