ENGLISH
Using the Movie Camera with a
Computer
The Personal Computer Connection Kit VW-DTA9E (optional),
or VW-DTA10E/B/A (optional) makes it possible to connect
the Movie Camera to a computer and transmit still video
images to it.

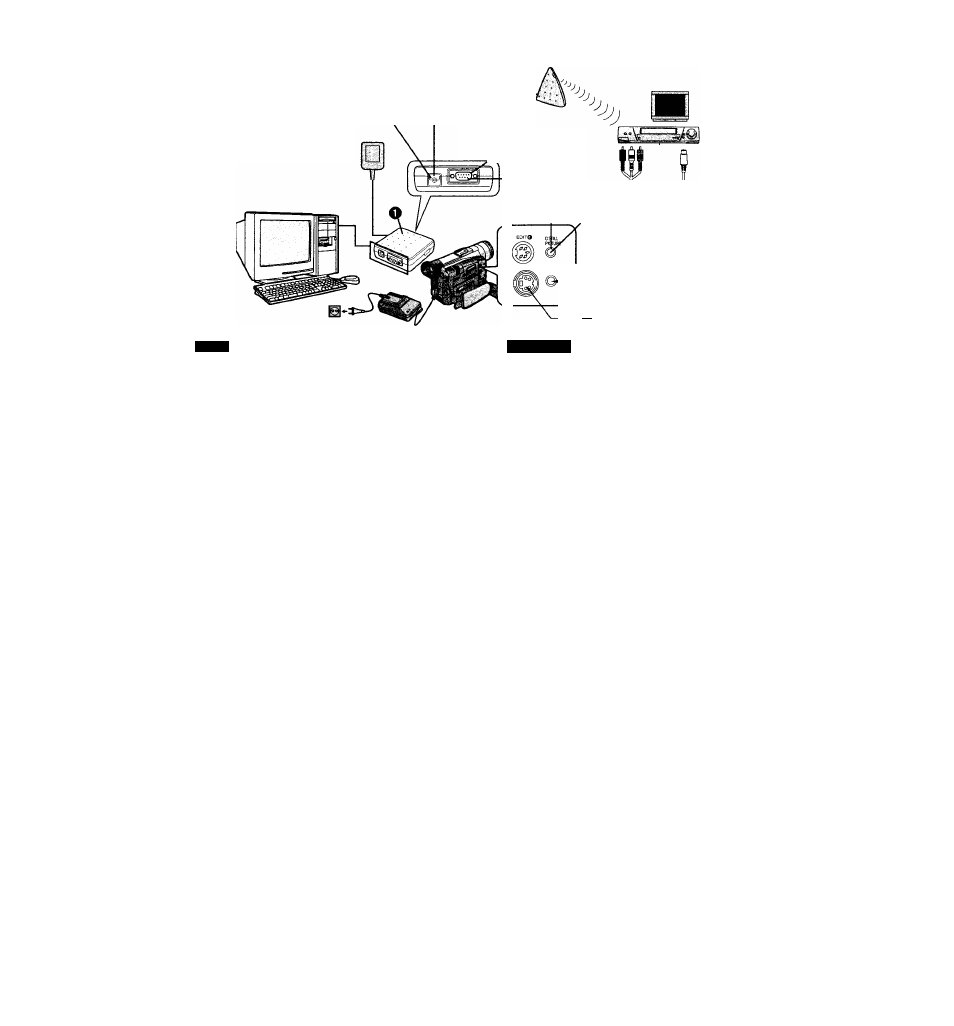

The above illustration shows the connections in case of
using the VW-DTA10E/B/A. For the VW-DTA9E, refer to its
operating instructions.
Computer System Requirements (VW-DTA10E/B/A)
DV STUDI02 can be installed in a PC/AT compatible
personal computer which can run Microsoft® Windows®
95/98.
Compatible machines:
Persona! computer with 80486DX4 or higher CPU
(Pentium™ or higher recommended)
Graphic card:
True Color (approx. 16.7 million colours) recommended
(operation also possible even with 256 colours)
Installed memory:
16 MB or more
(32 MB or more recommended)
Free hard disk space:
At least 16 MB
Disk drive: CD-ROM drive
Ports: RS-232C (D-sub 9 pin) or USB
Other requirements: Mouse
To connect the Movie Camera to the computer, use the
interface Box O contained in the Personal Computer
Connection Kit.
•To use the DV STUD102 software via USB, a computer with
Windows® 98 preinstalled is necessary.
• Pictures that you intend to import from cassette into
computer applications should be recorded in the SP Mode.
•When recording, take care that the Time Code is
uninterrupted from the beginning of the tape.
• For detailed explanations on the operating environment,
connections and operations, refer to the Personal Computer
Connection Kit's operating instructions.
Q AC Adaptor
