ENGLISH
2) nmí>tfe3tBsl©(MMS>) É;^^±Éi^Sé:^tSffi®íííl»
3) m>t!i(Pi4№) (-M8)
1
m .
?L
MAágtófiiM«féMa«-^a±tó[Dc iN]íf
2
)»S5SítA^WS-
[DC OUT]ffla °
®^mw'Mmmm
(D;IAfiJ55íPí/THSI
•
• ÍÍJ€ÍS»iн«йн}[OFF/ON]53ll|g*
tt[OFF] -
•
- m m - m
smnm.w. •>
fi|fflnm'«>1Íl5tS§l(VW-KBD2E ■ jISSp° )•
. t®
± •
mmmmM ■ e;a¥m>tii^mtiE5aígíEi¿Atsíí®
;n¥«>tii3t«tS}a3if^№i§ьt|н¡J|^#ií|tf o
The 3 Types of Power Supplies
1) AC Adaptor O (supplied) to supply power from an AC
mains socket
2) Car Battery Charger @ (optional) to supply power from
the cigarette lighter socket in a vehicle
3) Battery (supplied) (-> 18)

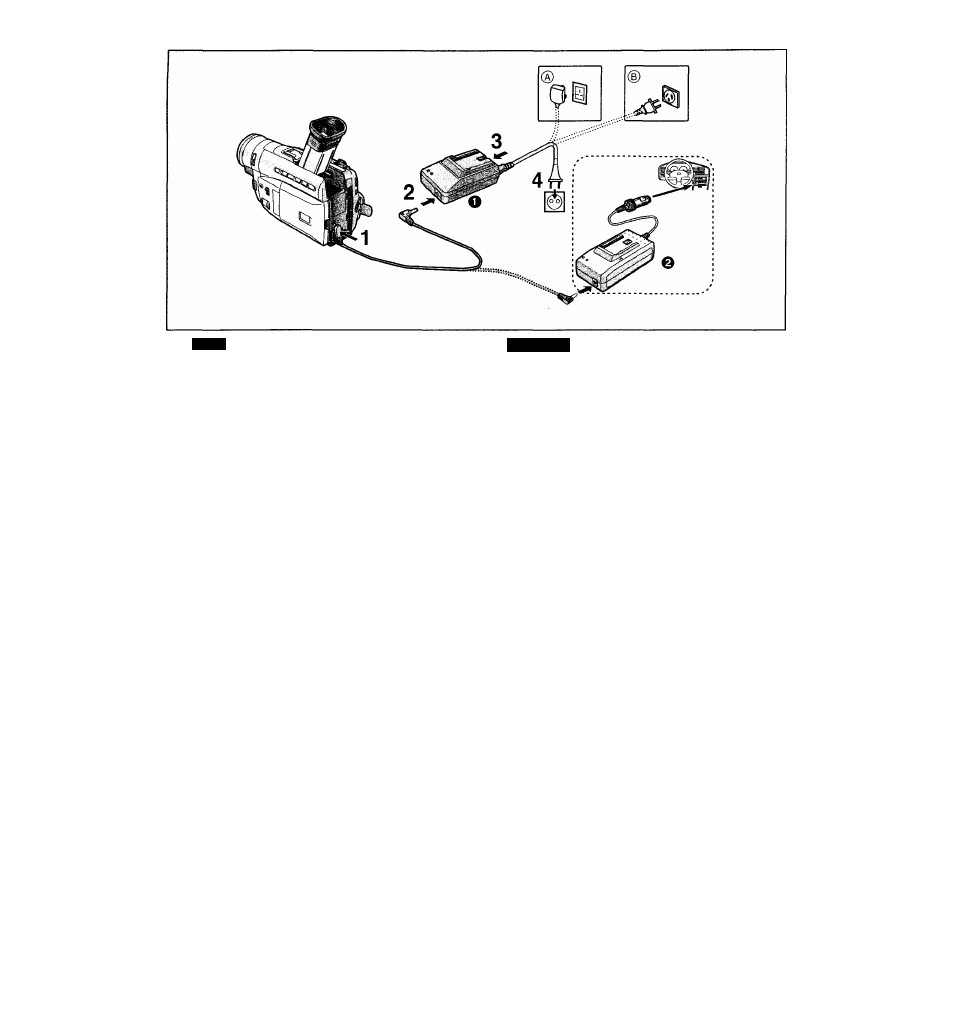

■ Supplying Power from an AC Mains Socket
1
Connect the plug of the DC Input Lead to the
[DC IN] Socket on the Movie Camera.
2
Connect the other plug of the DC Input Lead to
the [DC OUT] Socket on the AC Adaptor.
3
Connect the AC Mains Lead to the AC Adaptor.
•The AC Mains Lead does not fit entirely into the AC
Adaptor socket, but this has no effect on operation.
4
Connect the other end of the AC Mains Lead to
an AC mains socket.
Hong Kong Special Administrative Region of' a
(
b
): Australia and New Zealand
• Before disconnecting the AC Mains Lead, set the [OFF/
ON] Switch to [OFF].
•If you use the Movie Camera for a long time, it
becomes warm. However, this is normal.
■ Supplying Power with the Car Battery Charger
The use of the Car Battery Charger (VW-KBD2E; optional)
makes it possible to supply power to the Movie Camera in a
car for recording and playback.
It also allows charging the Movie Camera’s Battery.
•After use, be sure to disconnect the Car Battery Charger
from the cigarette lighter socket.
• If the Car Battery Charger is already connected to the
cigarette lighter socket when you start the engine, the fuse
In the Car Battery Charger’s plug may blow out.
•Also read the operating instructions of the Car Battery
Charger.
-16-
