9
FRONT L/R
REAR L/R
SUB OUT (MONO)
REAR MONITOR OUT
AUX 2
AUX 3
1 3 5 7
2 4 6 8
5 7
4 6 8
Front speakers
(optional)
Rear speakers
(optional)
RCA interconnects
(optional)
RCA interconnects
(optional)
RCA interconnects
(optional)
Amplifiers
(optional)
This terminal is not
used in this case.
Power
supply
leads 1
(for main
unit)
Active subwoofer
(optional)
To game etc.
To rear
monitor etc.
To the optional
back camera or
video
From car aerial*

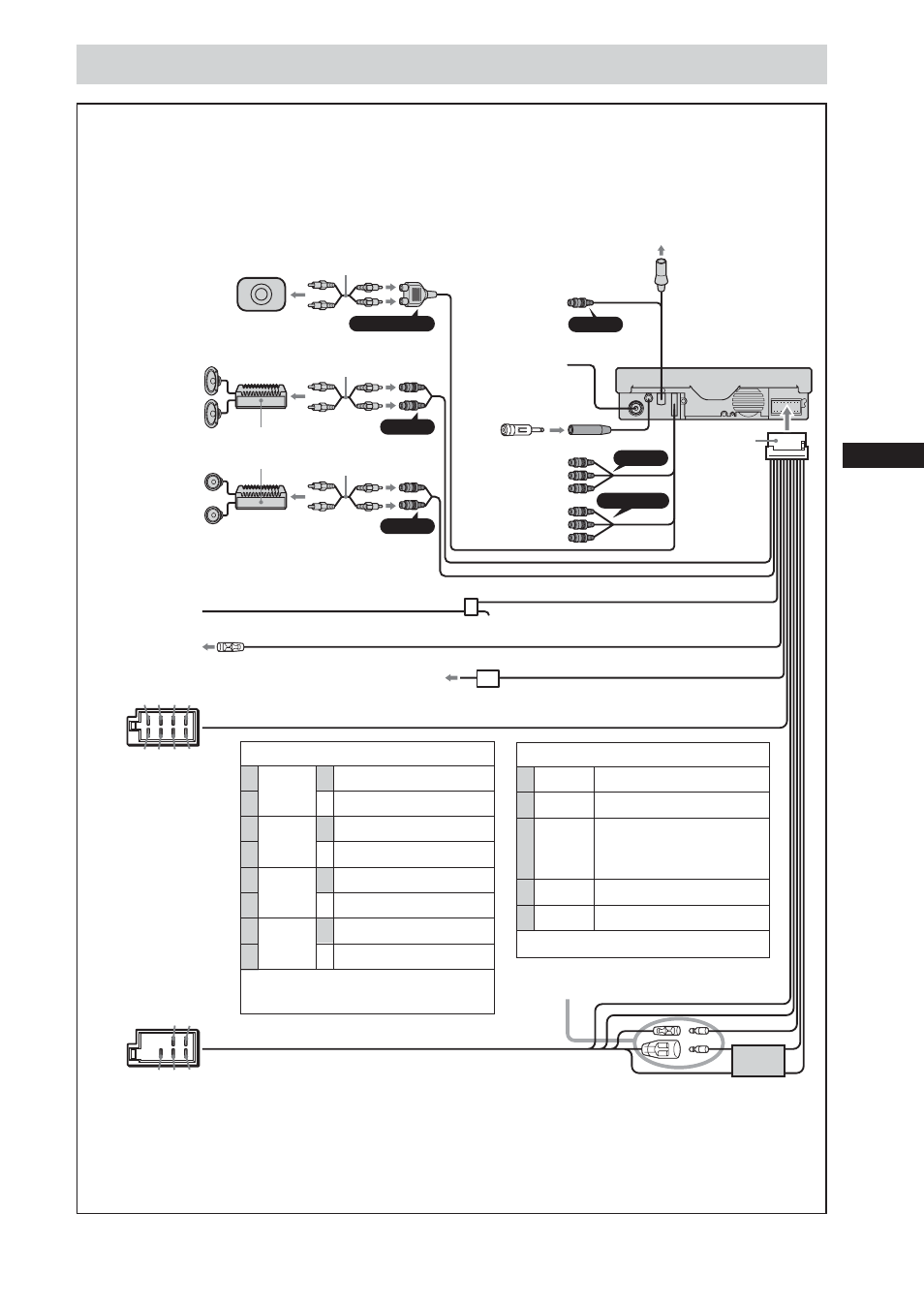

Connecting without optional TV tuner unit
RC-104 (optional)
digital output
Purple/White (5 m)
Blue/white
Max. supply current 0.3 A
A
AMP REM
C
from the car’s speaker connector
D
from the car’s power connector
See “Power connection diagram”
on next page for details.
Fuse
(10 A)
+ Speaker, Rear, Right
– Speaker, Rear, Right
+ Speaker, Front, Right
– Speaker, Front, Right
+ Speaker, Front, Left
– Speaker, Front, Left
+ Speaker, Rear, Left
– Speaker, Rear, Left
1 Purple
2
3 Grey
4
5 White
6
7 Green
8
Negative polarity positions 2, 4, 6,
and 8 have striped cords.
C
from the car’s speaker connector
D
from the car’s power connector
4 Yellow
continuous power supply
5 Blue
power aerial control
6 Orange/ switched
White
illumination power
supply
7 Red
switched power supply
8 Black
earth
Positions 1, 2, and 3 do not have pins.
A
To AMP REMOTE IN of an optional power amplifier
This connection is only for amplifiers. Connecting any other system may damage the unit.
Warning
If you have a power aerial without a relay box, connecting this unit with the supplied power
supply leads 1 may damage the aerial.
Light green (2.5 m)
Parking brake
switch lead of car
Aerial adaptor qd
* Note for the aerial connecting
If your car aerial is an ISO (International Organization for Standardization) type, use the supplied adaptor qd to
connect it. First connect the car aerial to the supplied adaptor qd, then connect it to the aerial jack of the main unit.
Protection device
To the +12 V power terminal
of the back lamp lead of car
