10

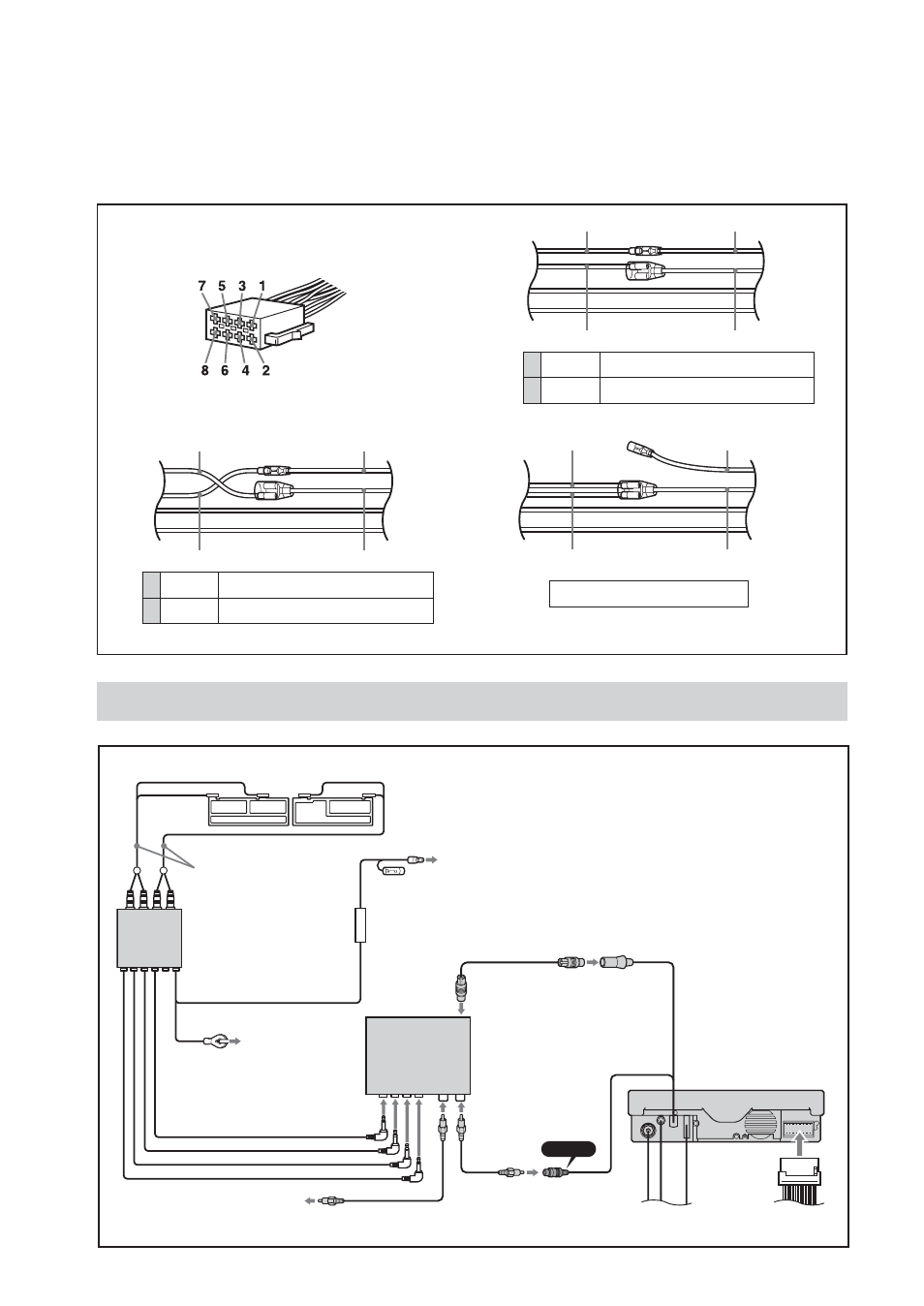

Connecting with optional TV tuner unit (For Russia and Ukraine only)
AUX 3
To the +12 V power terminal which is
energized in the accessory position of the
ignition key switch. Be sure to connect the
black ground lead first.
TV tuner unit *
XT-V70
(optional)
To a metal point
of the car
To the optional back camera
or video
Tuner
amplifier
unit
Aerial cord
Film aerial
Power connection diagram
Auxiliary power connector may vary depending on the car. Check your car’s auxiliary power connector
diagram to make sure the connections match correctly. There are three basic types (illustrated below). You
may need to switch the positions of the red and yellow leads in the car stereo’s power connecting cord.
After matching the connections and switched power supply leads correctly, connect the unit to the car’s
power supply. If you have any questions and problems connecting your unit that are not converted in
this manual, please consult the car dealer.
A
Red
Yellow
B
Red
Yellow
Red
Yellow
4 Yellow
switched power supply
7 Red
continuous power supply
C
Red
Yellow
Red
Yellow
the car without ACC position
4 Yellow
continuous power supply
7 Red
switched power supply
Auxiliary power connector
Red
Yellow
* For Russia and
Ukraine only
