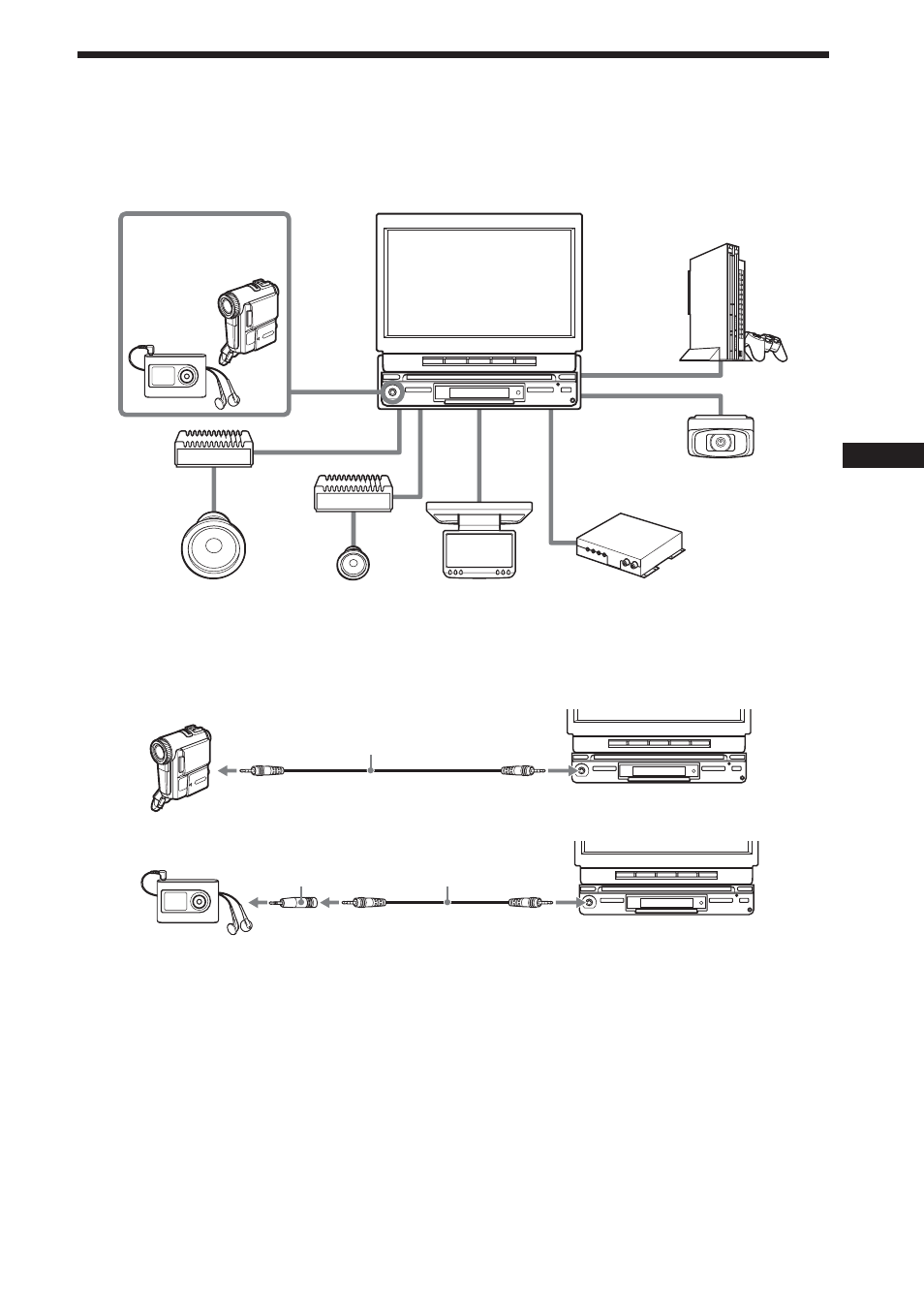

Connection Example
For details, see the section “1 Car Systems Connections” (pages 7 - 10). Be sure to refer also to the
documentation for all other components in the system.
System configuration
* Connect with supplied connecting cable 2. (Use a conversion plug 3 when you connect the audio equipment.)
** For Russia and Ukraine only
When you connect the video camera
2
When you connect the audio player
2
3
Notes
• Be sure to connect the ground cord before connecting the amplifier.
• If you connect an optional power amplifier and do not use the built-in amplifier, the beep sound will be deactivated.
Walkman or
Video Camera
(optional)
AV Center XAV-A1
XAV-C1
Game (optional)
A/V IN*
(Front)
(AUX 1)
AUX 2
AUX 3
SUB OUT
(MONO)
FRONT
L/R
REAR
L/R
REAR
MONITOR
OUT
AUX 3 and BUS
Back Camera
(optional)
Amplifier
(optional)
Amplifier
(optional)
Subwoofer
(optional)
Speaker
(optional)
Rear Monitor
(optional)
TV Tuner XT-V70**
(optional)
