English -

7

HDMI IN 1,

− No additional Audio connection is needed

for an HDMI to HDMI connection.

- When using an HDMI/DVI cable connection,

you must use the HDMI IN 2 jack.

What is HDMI?

- “High Definition Multimedia interface”

allows the ansmission of high definition

digital video data and multiple channels

of digital audio.

- The HDMI/DVI terminal supports DVI

connection to an extended device with

the appropriate cable (not supplied).

The difference between HDMI and DVI

is that the HDMI device is smaller in

size, has the HDCP (High Bandwidth

Digital Copy Protection) coding feature

installed, and supports multi - channel

digital audio.

DVI IN (HDMI ) AUDIO R/L

DVI audio outputs for external devices.

8

ANT IN

75Ω Coaxial connector for Aerial/Cable

Network.

Supported modes for HDMI/DVI and Component

480i 480p 576i 576p 720p 1080i 1080p

HDMI/DVI 50Hz X

X

X

O

O

O

O

HDMI/DVI 60Hz X

O

X

X

O

O

O

Component

O

O

O

O

O

O

O

The product colour and shape may vary depending on the model.

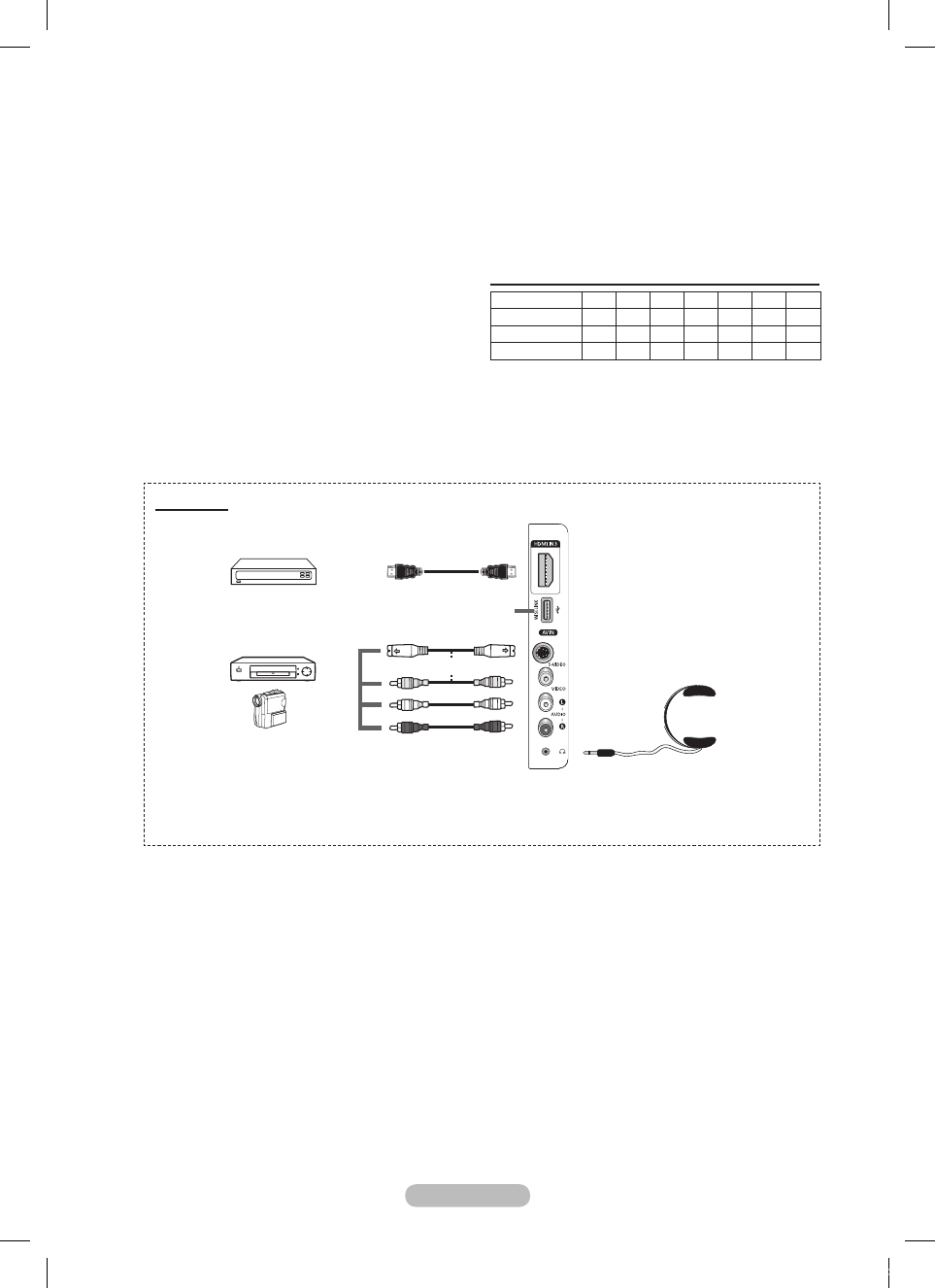

Side Panel

or

1

HDMI IN

Connect to the HDMI jack of a device with

HDMI output.

2

WISELINK

Connect a USB mass storage device to view

photo files (JPEG) and play audio files (MP3).

3

S-VIDEO or VIDEO / AUDIO L/R

Video (S-Video or Video) and audio inputs

for external devices, such as a camcorder or

VCR.

4

Headphones jack

You can connect a set of headphones if you

wish to watch a television programme without

disturbing the other people in the room.

Prolonged use of headphones at a high

volume may damage your hearing.

4

1

3

2

BN68-01434G-Eng.indb 7

2008-05-30 오전 10:09:33
