English - 4

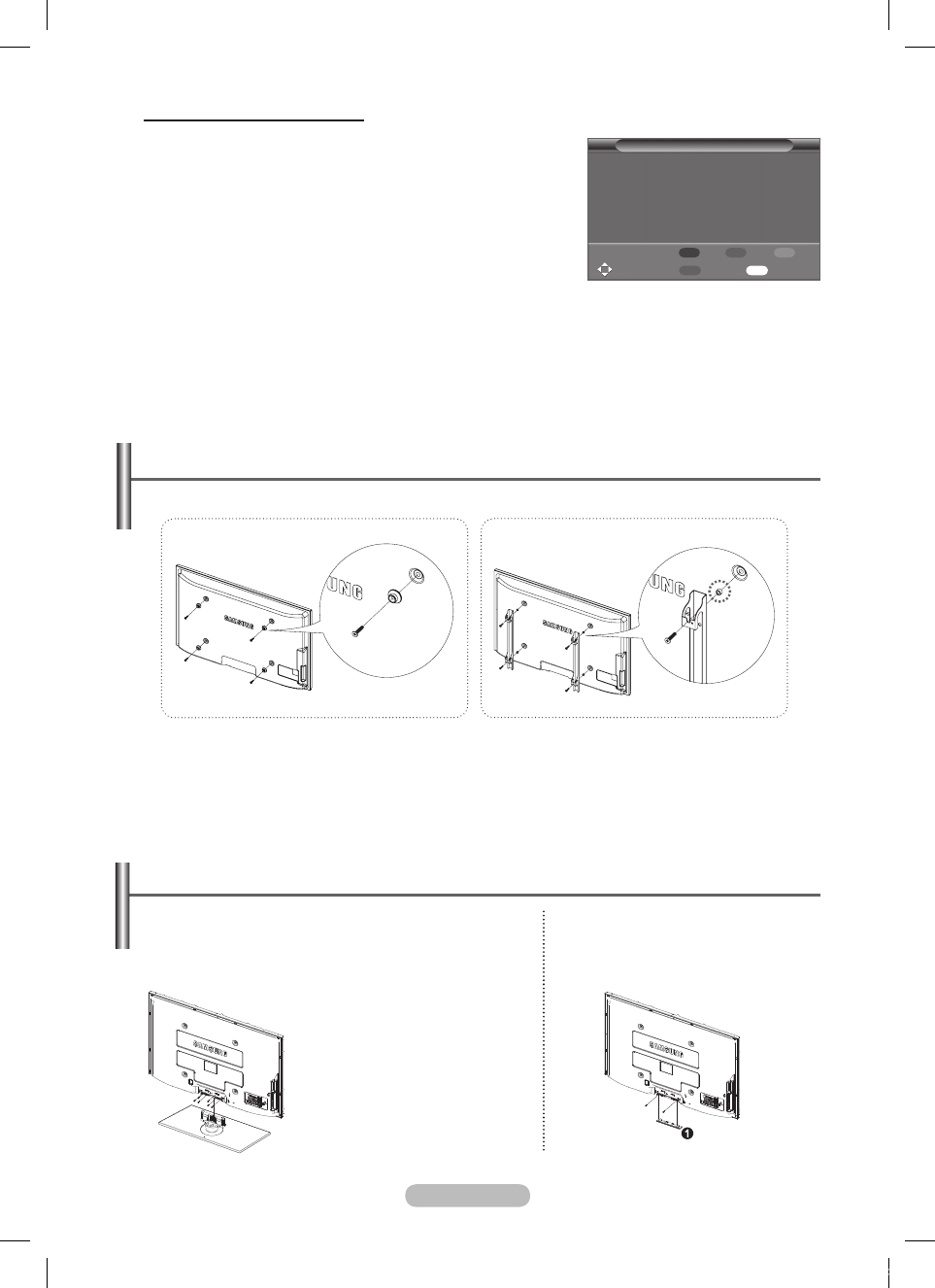

How to assemble the Stand-Base

(depending on the model)

Using the 6 screws for securing the stand base and the

monitor, firmly attach the monitor to the stand base.

(The exterior of the set may be different than the picture.)

In case of installing your TV on the wall,

close the cover (1) on the stand-base

connection part using two screws for

hiding.

Warning

Firmly secure the stand to the TV

before moving it, as the stand may

fall and could cause serious injury.

Two or more people should carry

the TV. Never lay the TV on the

floor because of possible damage

to the screen.

Always store the TV upright.

Moving to the remembered position
1
Complete Step 1 of Entering the menu.
 Pressing a Colour (Red, Green, Yellow) button moves the auto wall

mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions

by pressing the Red (Position 1), Green (Position 2) or Yellow

(Position 3) buttons.

If you adjust the positon after moving to a pre-set position, the

position display will disappear.

For installation, refer to the Installation Manual provided with the wall

mount.

For product installation and the installation and moving of the wall mount, make sure to consult a specialized

installation company.

This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building

materials, please contact your nearest dealer.

The auto wall mount will not work when Anynet+ or WISELINK is operating.

42 inches model is not compatible with the older wall mount model (WMN5090A).

Preparing before installing Wall- Mount on the wall

1 Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if

the torque is out of the specified range.

 Accessory Kit contains Holder–Ring [①] for installing other company’s Wall-Mount on Samsung TV.

(Case B)

Case A. Installing SAMSUNG Wall-Mount

Case B. Installing other company’s Wall-Mount

Auto Wall-Mount

Adjust

Save

Position

1

2

3

Center

INFO

Position 1
