english -
DVI In(hDmI) [r-auDIo-l]
DVI audio outputs for external devices.
Supported modes for HDMI/DVI and Component
480i
480p
576i
576p
720p
1080i
1080p
HDMI/DVI 50Hz
X
X
X
O
O
O
O
HDMI/DVI 60Hz
X
O
X
X
O
O
O
Component
O
O
O
O
O
O
O
4
ant In
To view television channels correctly, a signal must be received by the set from one of the following sources:
An outdoor aerial / A cable television network / A satellite network
5
SerVICe
Connector for SERVICE only.
6

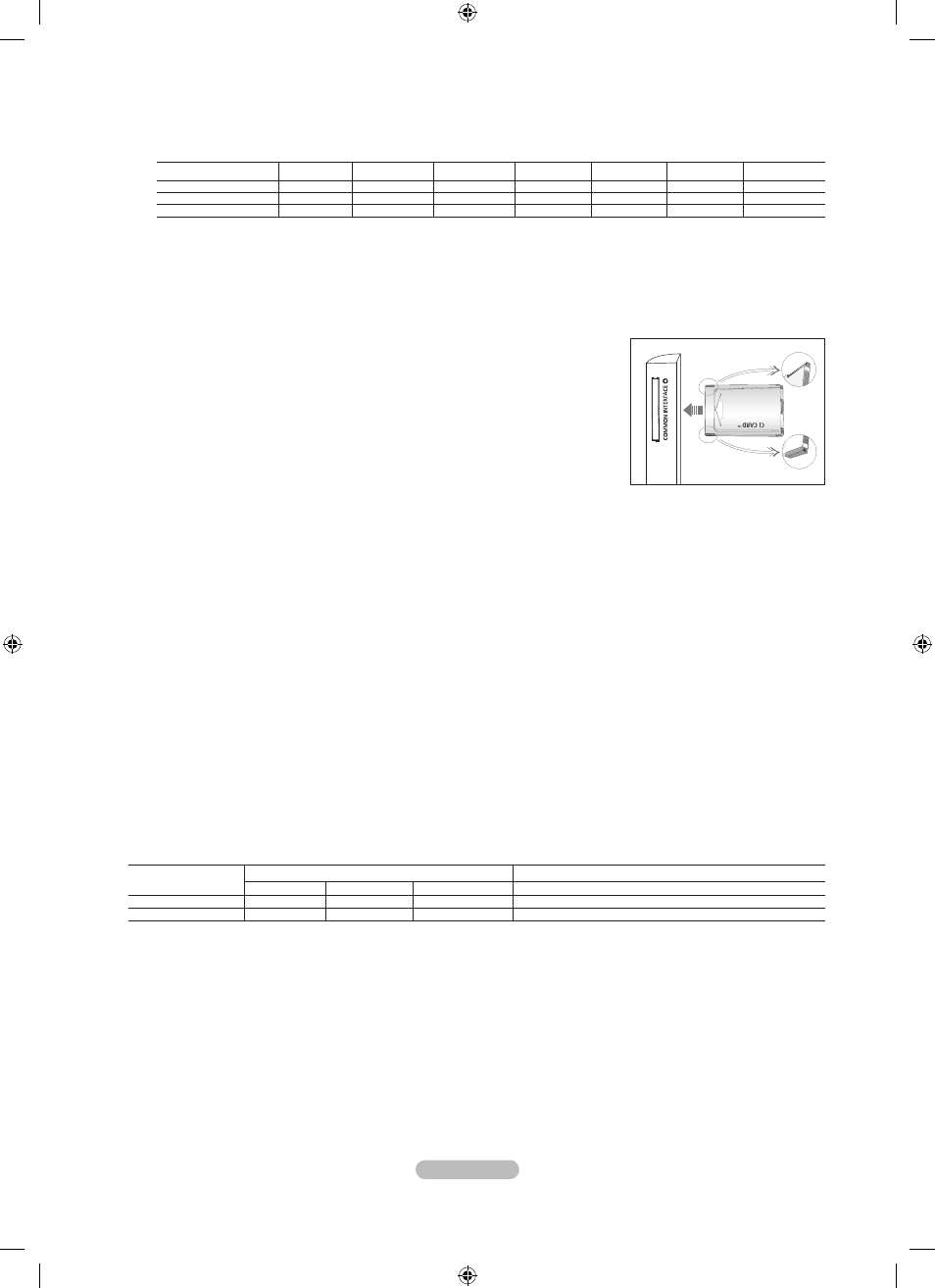

Common InterFaCe Slot
When not inserting "CI CARD" in some channels,"Scrambled Signal" is displayed on the
screen.
The pairing information containing a telephone number, CI CARD ID, Host ID and other
information will be displayed in about 2~3 minutes. If an error message is displayed, please
contact your service provider.
When the channel information configuration has finished, the message "Updating
Completed" is displayed, indicating that the channel list is now updated.
You must obtain a CI CARD from a local cable service provider. Remove the CI CARD
by carefully pulling it out with your hands since dropping the CI CARD may cause
damage to it.
Insert the CI-Card in the direction marked on it.
The place of the COMMON INTERFACE Slot may be different depending on its model.
7
WISelInK
Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3).
8
S-VIDeo or VIDeo / r-auDIo-l
Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V
device.
9
heaDPhoneS JaCK
Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in
speakers will be disabled.
0
auDIo out [r-auDIo-l]
Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in
connectors on the Amplifier or DVD Home Theatre.
!
DIgItal auDIo out (oPtICal)
Connect to a Digital Audio Component.
When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If
you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable/Satellite Box directly to an Amplifier
or Home Theater, not the TV.
@
eXt 1, eXt
Connector
Input
Output
Video
Audio (L/R)
RGB
Video + Audio (L/R)
EXT 1
O
O
O
Only TV or DTV output is available.
EXT 2
O
O
Output you can choose.
Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.
-
➣
-
-
-
-
-
➣
➣
➣
-
-
-
-
-
-
➣
-
