40
Precaution:
Do not turn on the power of the player before all connections have
been correctly done.

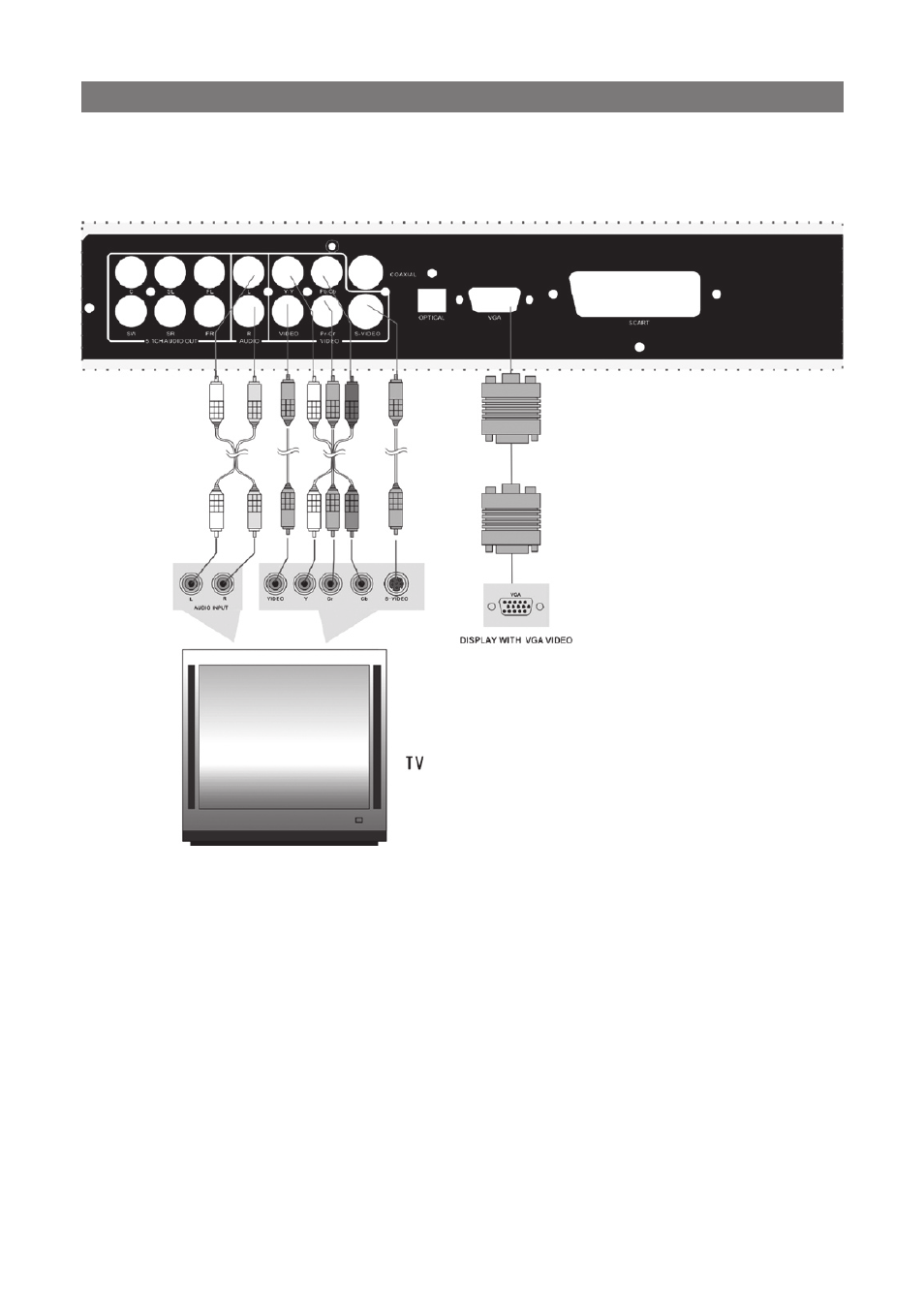

Connecting to TV
The Video output connector of the player include: CVBS Video out-
put, S-video output, Y/PbCb/PrCr output and component output,
SCART or VGA output (optional), you can select any one of them
to connect refer to your connecting apparatus correspondingly.
correct connecting way as shown at below figure.
Setup DVD Player Video output mode
• Setup your DVD player video output mode correctly refer to your
connected TV system. Press the P/N button on remote control to
select the same mode as TV system mode such as ”PAL/NTSC/
AUTO”. For example: if the TV system is NTSC mode, press the P/N
button to setup the player under “ NTSC” mode.
• Setup the player video output display size refer to the screen size
SYSTEM CONNECTION
