Installed And Connected TV
Ins
tal
led A
nd C
onne
c
ted
TV
E
NG
TV Bracket assemble
Fix the TV on the wall
1.
First, put the TV on the table smoothly and put some soft cloth on the
table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the
bottom stand (the direction of the arrow, refer to the ptoto1).And take
off the bottom stand (please take off the screws and bottom stand
carefully).

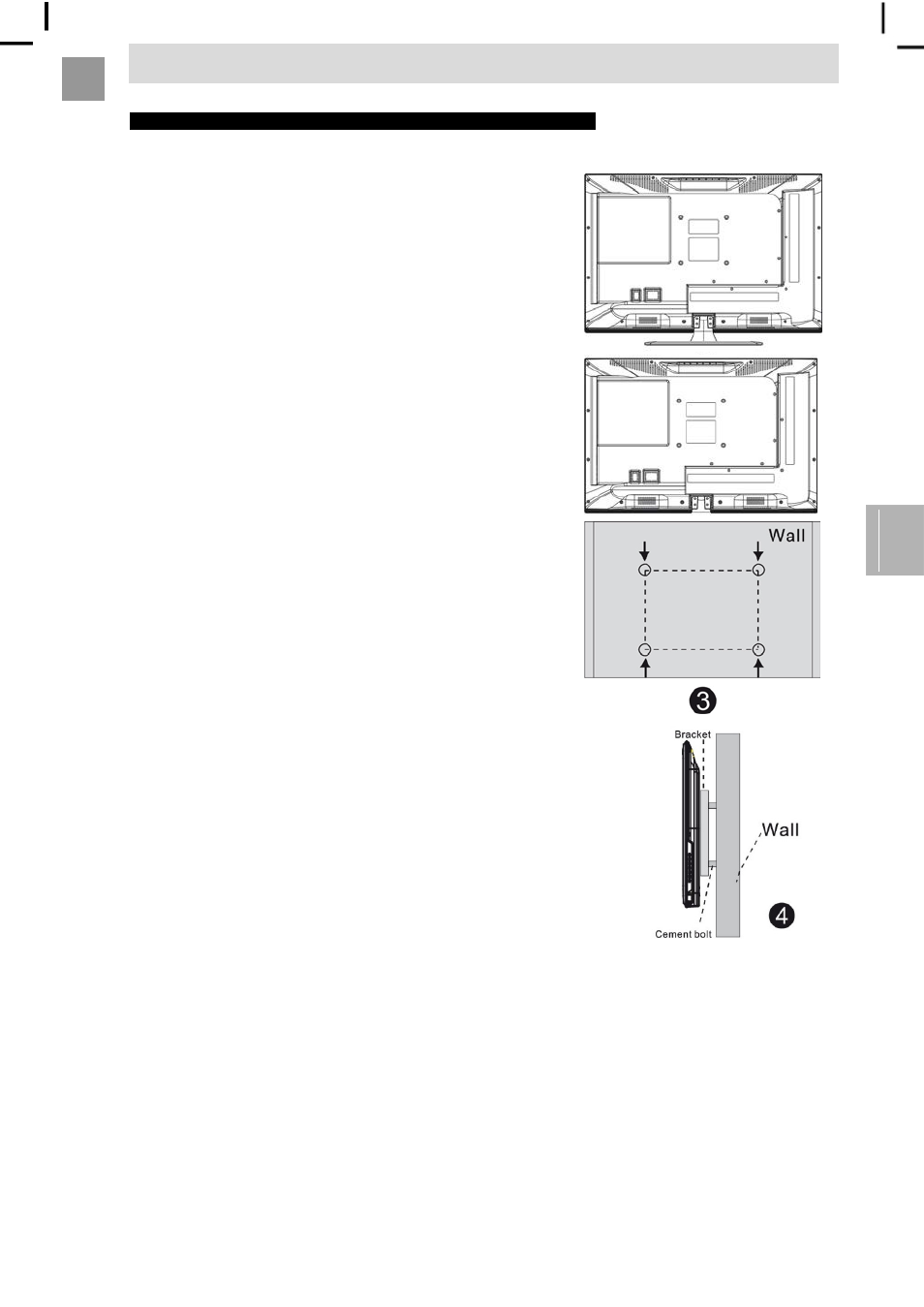

3. Make one bracket which can fix on the wall according to the size of
arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and
put into four screws. (optional parts) Drill four holes properly on the
wall (the size only for reference) and put into four screws. (optional
parts)
5. according to the step 4,use the screwdriver to lock the screw on the
back of the TV. then hang the TV on the wall.
Note:
1.
The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the
around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to
avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting
kit.
