6
Asia style
1. Boring an air outlet hole:
Make the exhaust duct against the
wall, and draw a circle around it, then
bore a hole in the wall with a
percussion drilling, watch out the
structure and metal of the wall, so as
not to boil the surface of the wall
beyond the hole.

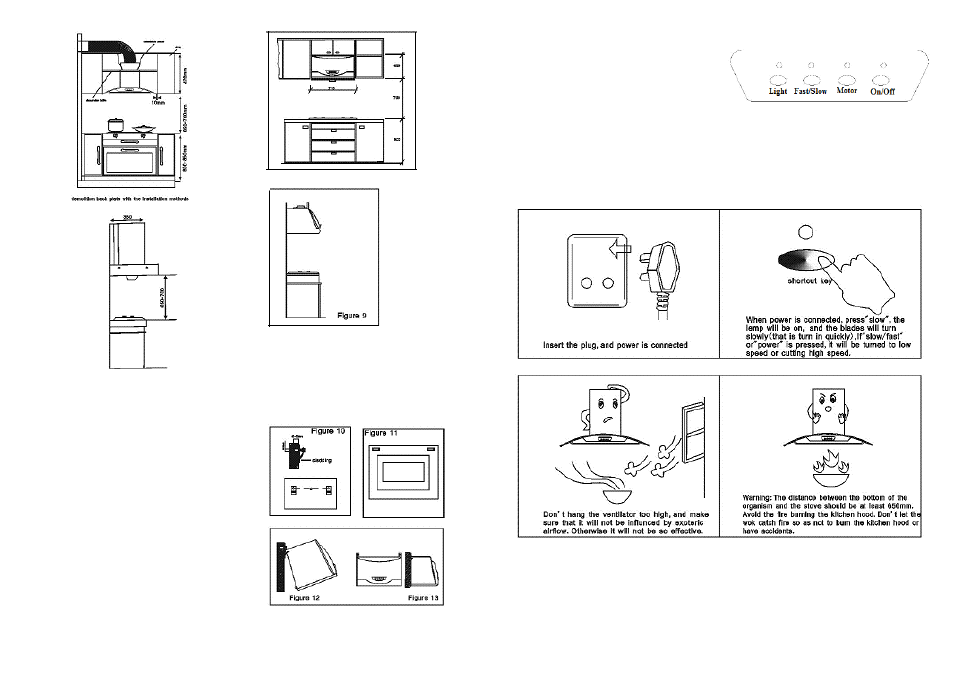

2. Installing the organism:
(1) According to the requests, shown
in figure 9, bore a 40-50mm deep hole
in the wall above the stove with
φ8mm drill bit, keep the organism
level. The distance between the
bottom of the organism and the stove
is 700-750mm.
Figure 9
(2) Knock two plug bolts slightly into
the open holes (shown in figure 10),
then fit two claddings into plug bolts
and wind the nuts. Make sure, that the
claddings are fastened to avoid that it
may drop from the wall.
(3) Set the feet into the open holes at
the back of the organism (shown in
figure 11).
7
(4) Fit the organism into the claddings
(shown in figure 12).
(5) Insert the exhaust duct into the
inside and outside tracks of the air
outlet and fix with tapping screw.
Ensure, that the exhaust duct is
neither convex nor concave, the
corner
piece
is
smoothly,
the
connector is narrow, and the blades in
the air outlet can turn freely. Make a
pylon of 170mm diameter at the exit
of the exhaust duct, through which the
exhaust duct can reach outdoor or the
common smoke pipe. The connector
must be narrow. The waste gas cannot
be discharged into the hot flue, which
is used to discharge the smoke of
burning gas or other kinds of fuel.
IV. Use method
