In models with " covered terminal block"
I n m i x m o d e l s a c a b l e s u p p l i e d w i t h a p l u g w i t h y o u r
o v e n ( H 0 5 V V - F 3 G 1 . 5 m m 2 )
» I f a c a b l e w i t h o u t a p l u g i s p r o v i d e d t o g e t h e r w i t h
y o u r o v e n ( N 0 5 V V - F 3 G 2 , 5 m m 2 )
Take care to connect as below:
Brown cable = L (Live)
Blue cable = IM (Neutral)
Green/Yellow cable = E (Earth)

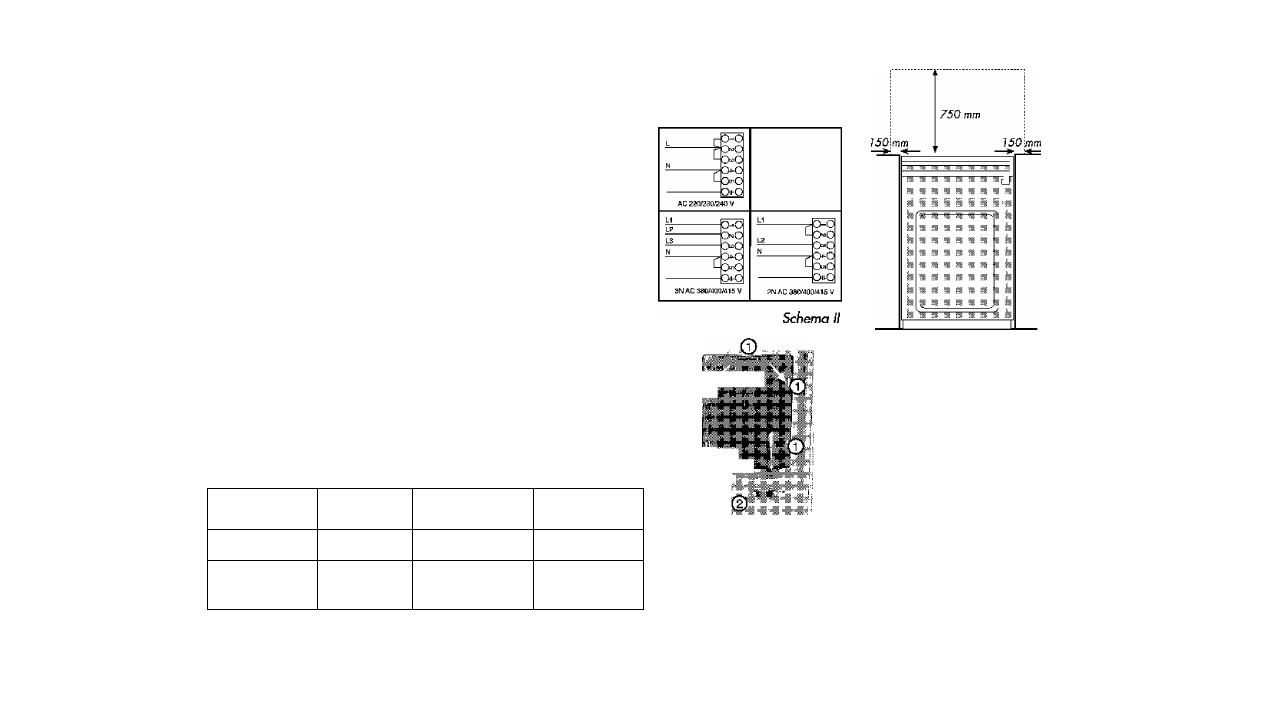

■ » If your oven is supplied without supply cord use scbema-l to choose
supply cord and use scherria-ll for installation of cord.
The cable length should be max 2m long for isolation safety.
» Open the terminal block cover (1).
» Connect the supply cable according to wiring diagram on the rear cover.
»Assembly the terminal block cover to its place.
» The mains cable must pass through the cable damp (2).
» Fix the supply cable to main body with two screw via cable tightener (2).
Your oven is suitable for single and three phase connection.
»The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed in
to position between the appliance and the wall and/or cabinet.
Connection Type Monophase Three phase
with Neutral
Two phase
with Neutral
Voltage 220/230/
240 V
380/400/415
V
380/400/
415 V
Supply cord type
(max 2 m long)
3x2,5 mm2
H05 VV-F
5x2,5 mm2
H05 VV-F
4x2,5 mm2
H05 VV-F
Schema I
Adjacent side walls above the
appliance must not be nearer
to the cooker than 150 mm
and should be of heat resistant
material. Leave at least 750
mm clearance above the
hotplates.
The appliance should be
located on a level surface.
The two front feet can be
adjusted as required. To
ensure that your appliance is
standing level adjust the two
front feet by turning clockwise
or counterclockwise until the
product is in firm contact with
the floor.
