108
840W
Подключения по моно- и мостовой схеме
Совместимый усилитель мощности Azur 840W содержит настройки
Mono (Моно) и Bridged Mono (Мост-моно), позволяющие в системах
профессионального класса два (и более) устройства 840W

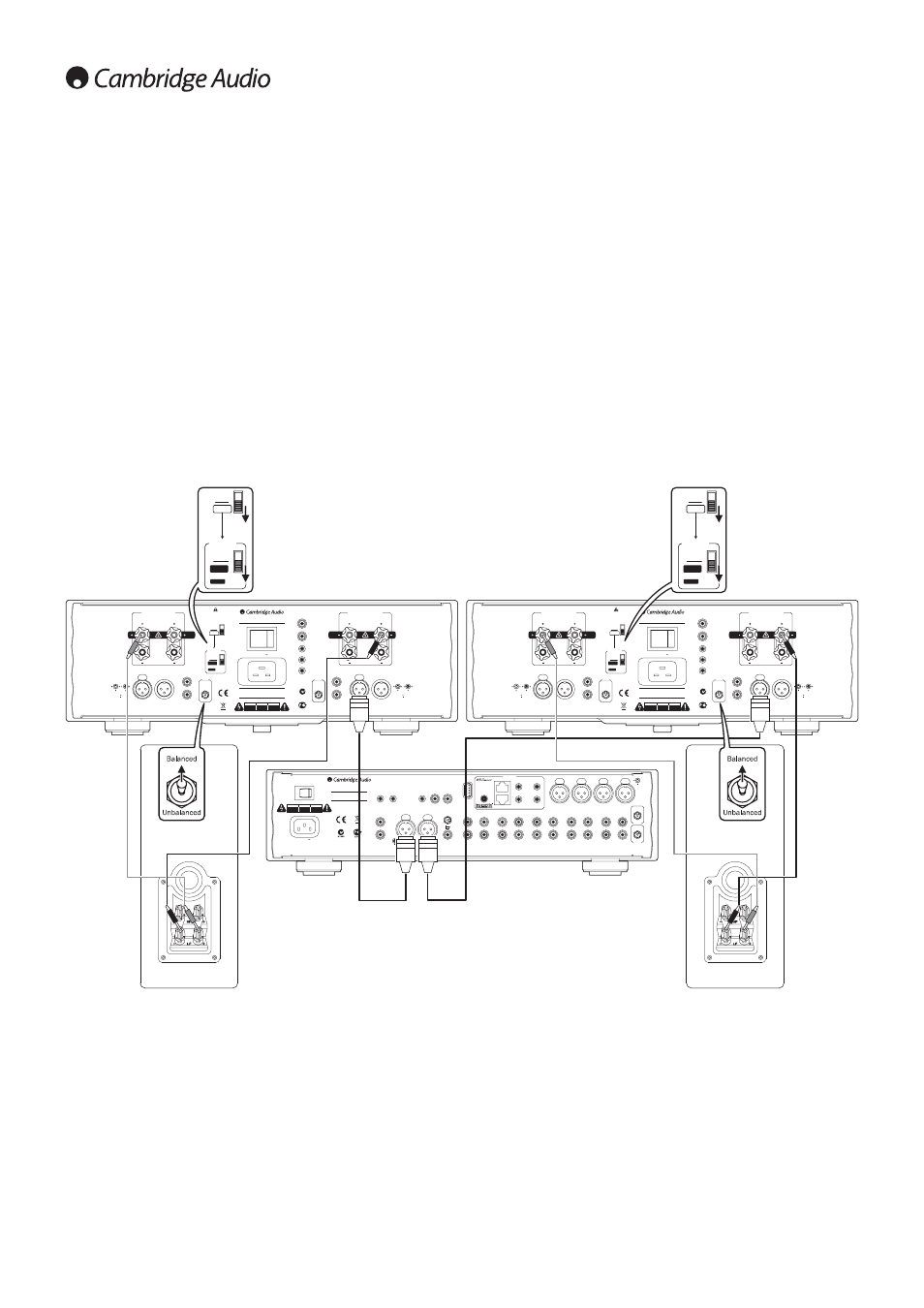

использовать в качестве моноблоков. Ниже приведен пример, в
котором используется два устройства 840W, объединенных по схеме
«Мост-моно» с устройством 840E.
В мостовом монорежиме каждое устройство 840W работает на одну
акустическую систему через свои выходные каналы, действуя как
моноусилитель 500 Вт вместо стереоусилителя 200wpc. Одно
устройство 840W работает на левую акустическую систему, а другое –
на правую. Полные сведения по подключениям «мост-моно» и другим
возможным комбинациям см. в руководстве на устройство 840W.
В примере внизу использованы симметричные разъемы для
подключения устройства 840E к каждому устройству 840W, но могут
быть использованы и несимметричные разъемы – принцип тот же
самый.
Внимание! Настройки устройства 840W
Перед выполнением любых подключений к акустическим системам
следует удостовериться, что питание всех устройств отключено, а при
выполнении подключений следует использовать соответствующие
соединительные средства (например, вилки соединителей с
подпружинивающими контактами). Проверьте, чтобы при
подключении соблюдалась положительная (+) и отрицательная (-)
полярность соединений, как это показано на схеме.
При использовании симметричных разъемов (XLR) левый и правый
переключатели типа входа на устройстве 840W должны находиться в
положении Balanced (Симметричный). При использовании
несимметричных разъемов (phono/RCA) левый и правый
переключатели типа входа на устройстве 840W должны находиться в
положении Unbalanced (Несимметричный).
Для работы в режиме мостового соединения следует использовать
только левые входы устройства 840W.
В этой конфигурации переключатель Stereo/Mono на устройстве
840W должен быть установлен в положение Mono, а переключатель
режима Mono должен быть установлен в положение Bridged.
On
Off
Loop Output
Input
Balanced Audio - Right
Unbalanced
Audio - Right
Input
Loop Output
Input
Loop Output
Out
Control Bus
Trigger
IR Emitter
In
Out/Thru
In
In
Loop Output
Input
Balanced Audio - Left
Unbalanced
Audio - Left
azur 840W Class XD
TM
Power Amplifier
Power Rating
: 230V AC ~ 50Hz
Max Power Consumption
: 1600W
www.cambridge-audio.com
Designed in London, England
Power AC
Please ensure that loudspeaker terminals are fully tightened
Veuillez s'assurer que les bornes de l'enceinte sont entièrement serrées
Stereo
Mono
Bi-Amp
Bridged
Loudspeaker Terminals - Right
Impedance 4 - 8 ohms
Bridged
Bridged
only!
Please ensure that loudspeaker terminals are fully tightened
Veuillez s'assurer que les bornes de l'enceinte sont entièrement serrées
Loudspeaker Terminals - Left
Impedance 4 - 8 ohms
Bridged
only!
Manufactured in an ISO9001 approved facility
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference, including interference that may cause undesired operation
N1863
AЯ
46
1 = Ground
2 =
3 =
In
Loop
1 = Ground
2 =
3 =
In
Loop
Balanced
Balanced
Unbalanced
Left
Input Type
Balanced
Unbalanced
Right
Input Type
IMPORTANT!
Only change modes
when unit is off.
Refer to Manual for
more information.
Use Left Input for
Bridged
/ Bi-Amp
operation.
Mono Mode
Class 2 Wiring
Class 2 Wiring
CAUTION
Risk of electric
shock.
Do not open.
AVIS
Risque de choc
electrique.
Ne pas ouvrir.
ACHTUNG
Vorm öffnen
des gerätes.
Netzstecker ziehen.
On
Off
Loop Output
Input
Balanced Audio - Right
Unbalanced
Audio - Right
Input
Loop Output
Input
Loop Output
Out
Control Bus
Trigger
IR Emitter
In
Out/Thru
In
In
Loop Output
Input
Balanced Audio - Left
Unbalanced
Audio - Left
azur 840W Class XD
TM
Power Amplifier
Power Rating
: 230V AC ~ 50Hz
Max Power Consumption
: 1600W
www.cambridge-audio.com
Designed in London, England
Power AC
Please ensure that loudspeaker terminals are fully tightened
Veuillez s'assurer que les bornes de l'enceinte sont entièrement serrées
Stereo
Mono
Bi-Amp
Bridged
Loudspeaker Terminals - Right
Impedance 4 - 8 ohms
Bridged
Bridged
only!
Please ensure that loudspeaker terminals are fully tightened
Veuillez s'assurer que les bornes de l'enceinte sont entièrement serrées
Loudspeaker Terminals - Left
Impedance 4 - 8 ohms
Bridged
only!
Manufactured in an ISO9001 approved facility
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference, including interference that may cause undesired operation
N1863
AЯ
46
1 = Ground
2 =
3 =
In
Loop
1 = Ground
2 =
3 =
In
Loop
Balanced
Balanced
Unbalanced
Left
Input Type
Balanced
Unbalanced
Right
Input Type
IMPORTANT!
Only change modes
when unit is off.
Refer to Manual for
more information.
Use Left Input for
Bridged
/ Bi-Amp
operation.
Mono Mode
Class 2 Wiring
Class 2 Wiring
CAUTION
Risk of electric
shock.
Do not open.
AVIS
Risque de choc
electrique.
Ne pas ouvrir.
ACHTUNG
Vorm öffnen
des gerätes.
Netzstecker ziehen.
R
L
R
L
R
L
IR1
IR2
IR3
IR4
Keypad 1
Keypad 2
Multi-Room
IR Emitter
In
Trigger
In
Out/Thru
In
Out
Left
Right
Re
c Out 2
Sub Out
Re
c Out 1
Rec
In
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Rec Out 2
Rec Out 1
Rec In
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
(Unbalanced)
(Unbalanced)
Pre Out
Pre Out
Left
Right
Balanced Pre Out
Left
Right
RS232C
Control Bus
PSU
In
International Patent Pending
LeisureTech Electronics Pty Ltd
GND
Power AC
On
Off
Power
azur 840E Pre-Amplifier
Power Rating
: 230V AC ~ 50Hz
Max Power Consumption
: 36W
Designed in London, England
Flat / 200Hz L.P.
Manufactured
in an ISO9001
approved facility
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference; 2) This device must accept any interference, including interference that may cause undesired operation.
Input 2 Balanced Audio
Balanced
Unbalanced
Balanced
Unbalanced
Input 1 Balanced Audio
Input 1
Input 2
GND
CAUTION
Risk of electric
shock.
Do not open.
AVIS
Risque de choc
electrique.
Ne pas ouvrir.
ACHTUNG
Vorm öffnen
des gerätes.
Netzstecker ziehen.
R
L
www.cambridge-audio.com
Stereo
Mono
Bi-Amp
Bridged
Bridged
Use Left Input for
Bridged
/ Bi-Amp
operation.
Mono Mode
Stereo
Mono
Bi-Amp
Bridged
Bridged
Use Left Input for
Bridged
/ Bi-Amp
operation.
Mono Mode
840E
840W
