Installation Instructions
LSA/LTA Series
9

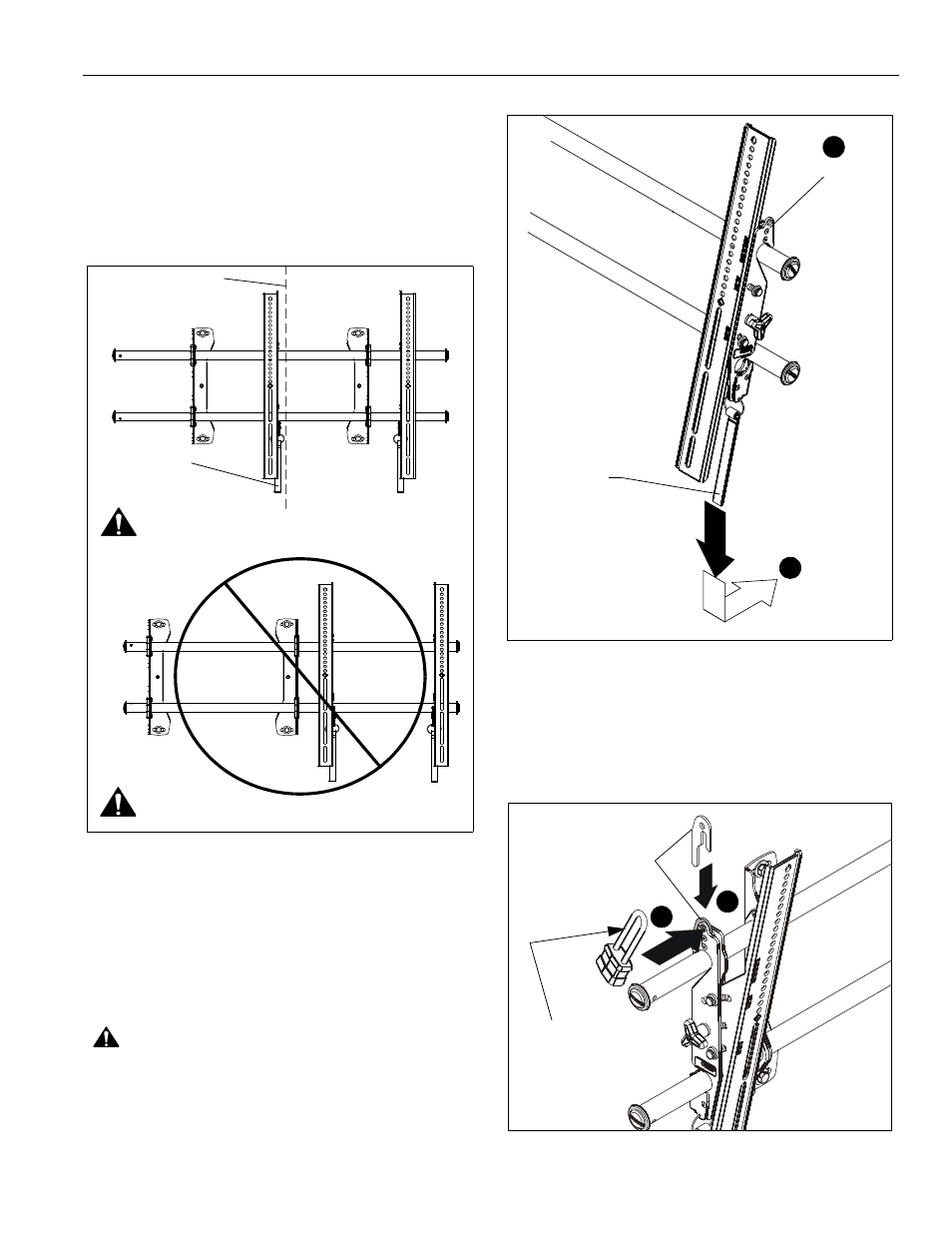

Attaching Screen to Wall Mount
1.
Adjust Velcro® pull strap (if necessary) so it does not extend
beyond bottom of screen. (See Figure 7)
NOTE:
Do NOT allow both interface brackets to be located on
same side of wall bracket. (See Figure 7)
NOTE:
NEVER place both interface brackets to one side of the
wall mount center line! (See Figure 7)
Figure 7
2.
Hang top hook of interface brackets onto the top bar of the
mount. (See Figure 8)
NOTE:
The screen initially installs into the "kickstand mode" to
allow easy cable access.
3.
Slide screen and bars to desired viewing position.
4.
Route cables between wall and bars.
CAUTION:
PINCH POINTS! Keep fingers, hands and
cables out of pinch point areas.
5.
Pull downward on the pullstraps and swing inward toward
wall, latching interface brackets to lower bar and locking
bottom of screen to the mount. (See Figure 8)
Figure 8
Locking Mount (Optional)
1.
Add optional security bracket (S or T) to the mount. (See
Figure 9)
2.
Add padlock (not included) to complete security.
Figure 9
Both interface brackets must NEVER be located
to one side of the wall brackets!
Pullstrap
NEVER place both interface brackets to one
side of the wall mount center line (CL)!
Center Line (CL)
(Screen not shown for clarity)
2
5
Top
Hook
Pullstrap
(S)
1
2
(LTA Shown)
Padlock shackle diameter:
- Min: 1/4" (6.3mm)
- Max: 5/16" (7.9mm)
